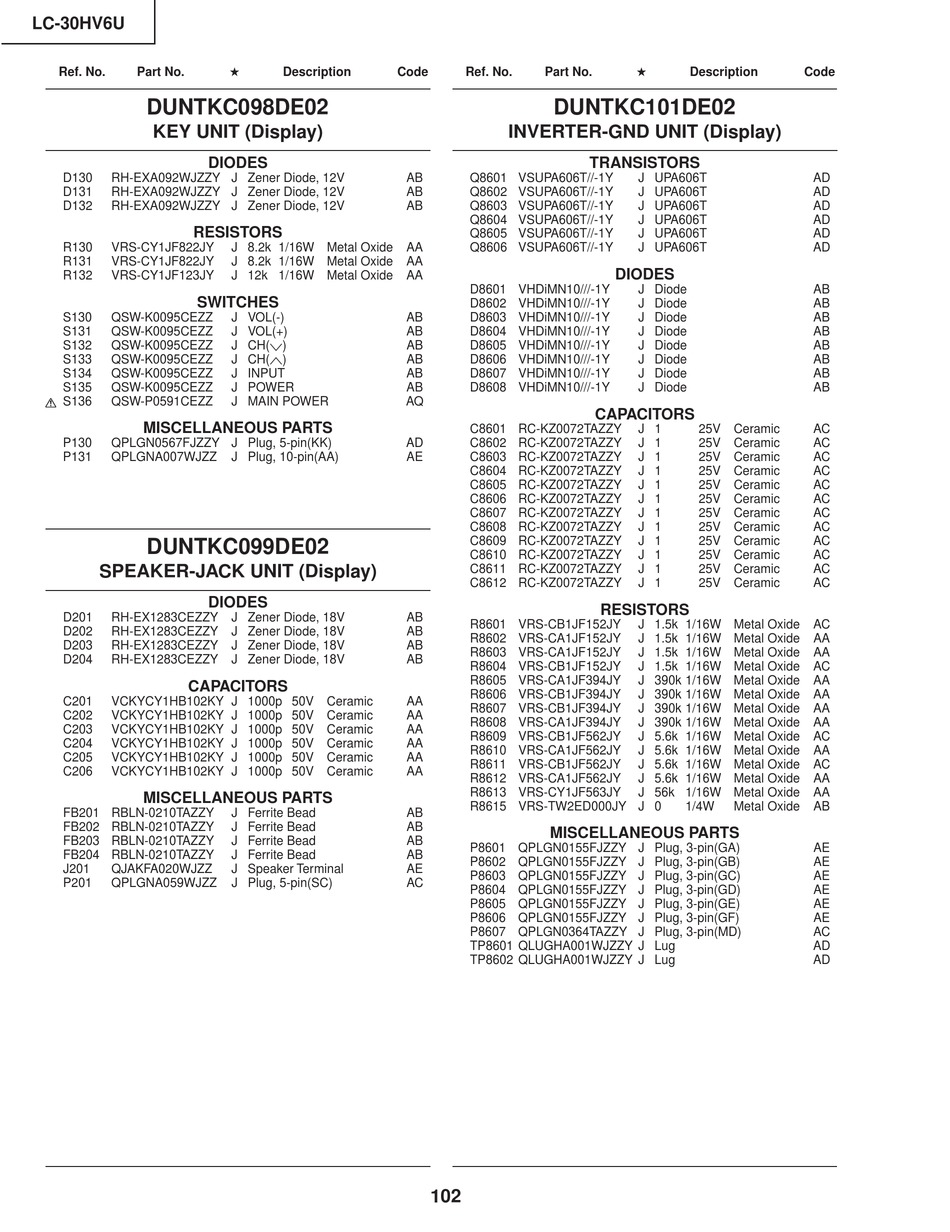

Sharp LC-30HV6U Service Manual page 102

LC-30HV6U
Ref. No. Part No.
DUNTKC098DE02
KEY UNIT (Display)
DIODES
D130 RH-EXA092WJZZY J Zener Diode, 12V
D131 RH-EXA092WJZZY J Zener Diode, 12V
D132 RH-EXA092WJZZY J Zener Diode, 12V
RESISTORS
R130 VRS-CY1JF822JY
R131 VRS-CY1JF822JY
R132 VRS-CY1JF123JY
SWITCHES
S130 QSW-K0095CEZZ
S131 QSW-K0095CEZZ
S132 QSW-K0095CEZZ
S133 QSW-K0095CEZZ
S134 QSW-K0095CEZZ
S135 QSW-K0095CEZZ
S136 QSW-P0591CEZZ
å
MISCELLANEOUS PARTS
P130 QPLGN0567FJZZY J Plug, 5-pin(KK)
P131 QPLGNA007WJZZ
DUNTKC099DE02
SPEAKER-JACK UNIT (Display)
DIODES
D201 RH-EX1283CEZZY
D202 RH-EX1283CEZZY
D203 RH-EX1283CEZZY
D204 RH-EX1283CEZZY
CAPACITORS
C201 VCKYCY1HB102KY J 1000p 50V Ceramic
C202 VCKYCY1HB102KY J 1000p 50V Ceramic
C203 VCKYCY1HB102KY J 1000p 50V Ceramic
C204 VCKYCY1HB102KY J 1000p 50V Ceramic
C205 VCKYCY1HB102KY J 1000p 50V Ceramic
C206 VCKYCY1HB102KY J 1000p 50V Ceramic
MISCELLANEOUS PARTS
FB201 RBLN-0210TAZZY
FB202 RBLN-0210TAZZY
FB203 RBLN-0210TAZZY
FB204 RBLN-0210TAZZY
J201 QJAKFA020WJZZ
P201 QPLGNA059WJZZ
Description Code
AB
AB
AB
J 8.2k 1/16W Metal Oxide AA
J 8.2k 1/16W Metal Oxide AA
J 12k 1/16W Metal Oxide AA
J VOL(-) AB
J VOL(+) AB
J CH(Ù) AB
J CH(ù) AB
J INPUT AB
J POWER AB
J MAIN POWER AQ
AD
J Plug, 10-pin(AA) AE
J Zener Diode, 18V AB
J Zener Diode, 18V AB
J Zener Diode, 18V AB
J Zener Diode, 18V AB
AA
AA
AA
AA
AA
AA
J Ferrite Bead AB
J Ferrite Bead AB
J Ferrite Bead AB
J Ferrite Bead AB
J Speaker Terminal AE
J Plug, 5-pin(SC) AC
Ref. No. Part No.
DUNTKC101DE02
INVERTER-GND UNIT (Display)
TRANSISTORS
Q8601 VSUPA606T//-1Y
Q8602 VSUPA606T//-1Y
Q8603 VSUPA606T//-1Y
Q8604 VSUPA606T//-1Y
Q8605 VSUPA606T//-1Y
Q8606 VSUPA606T//-1Y
D8601 VHDiMN10///-1Y
D8602 VHDiMN10///-1Y
D8603 VHDiMN10///-1Y
D8604 VHDiMN10///-1Y
D8605 VHDiMN10///-1Y
D8606 VHDiMN10///-1Y
D8607 VHDiMN10///-1Y
D8608 VHDiMN10///-1Y
CAPACITORS
C8601 RC-KZ0072TAZZY
C8602 RC-KZ0072TAZZY
C8603 RC-KZ0072TAZZY
C8604 RC-KZ0072TAZZY
C8605 RC-KZ0072TAZZY
C8606 RC-KZ0072TAZZY
C8607 RC-KZ0072TAZZY
C8608 RC-KZ0072TAZZY
C8609 RC-KZ0072TAZZY
C8610 RC-KZ0072TAZZY
C8611 RC-KZ0072TAZZY
C8612 RC-KZ0072TAZZY
RESISTORS
R8601 VRS-CB1JF152JY
R8602 VRS-CA1JF152JY
R8603 VRS-CA1JF152JY
R8604 VRS-CB1JF152JY
R8605 VRS-CA1JF394JY
R8606 VRS-CB1JF394JY
R8607 VRS-CB1JF394JY
R8608 VRS-CA1JF394JY
R8609 VRS-CB1JF562JY
R8610 VRS-CA1JF562JY
R8611 VRS-CB1JF562JY
R8612 VRS-CA1JF562JY
R8613 VRS-CY1JF563JY
R8615 VRS-TW2ED000JY J 0
MISCELLANEOUS PARTS
P8601 QPLGN0155FJZZY J Plug, 3-pin(GA)
P8602 QPLGN0155FJZZY J Plug, 3-pin(GB)
P8603 QPLGN0155FJZZY J Plug, 3-pin(GC)
P8604 QPLGN0155FJZZY J Plug, 3-pin(GD)
P8605 QPLGN0155FJZZY J Plug, 3-pin(GE)
P8606 QPLGN0155FJZZY J Plug, 3-pin(GF)
P8607 QPLGN0364TAZZY J Plug, 3-pin(MD)
TP8601 QLUGHA001WJZZY J Lug
TP8602 QLUGHA001WJZZY J Lug
102
Description
J UPA606T
J UPA606T
J UPA606T
J UPA606T
J UPA606T
J UPA606T
DIODES
J Diode
J Diode
J Diode
J Diode
J Diode
J Diode
J Diode
J Diode
J 1 25V Ceramic
J 1 25V Ceramic
J 1 25V Ceramic
J 1 25V Ceramic
J 1 25V Ceramic
J 1 25V Ceramic
J 1 25V Ceramic
J 1 25V Ceramic
J 1 25V Ceramic
J 1 25V Ceramic
J 1 25V Ceramic
J 1 25V Ceramic
J 1.5k 1/16W Metal Oxide
J 1.5k 1/16W Metal Oxide
J 1.5k 1/16W Metal Oxide
J 1.5k 1/16W Metal Oxide
J 390k 1/16W Metal Oxide
J 390k 1/16W Metal Oxide
J 390k 1/16W Metal Oxide
J 390k 1/16W Metal Oxide
J 5.6k 1/16W Metal Oxide
J 5.6k 1/16W Metal Oxide
J 5.6k 1/16W Metal Oxide
J 5.6k 1/16W Metal Oxide
J 56k 1/16W Metal Oxide
1/4W Metal Oxide
Code
AD
AD
AD
AD
AD
AD
AB
AB
AB
AB
AB
AB
AB
AB
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AA
AA
AC
AA
AA
AA
AA
AC
AA
AC
AA
AA
AB
AE
AE
AE
AE
AE
AE
AC
AD
AD
