Removing Of Major Parts - Sharp LC-20B2HA Service Manual

LC-20B2HA
LC-20B2MA

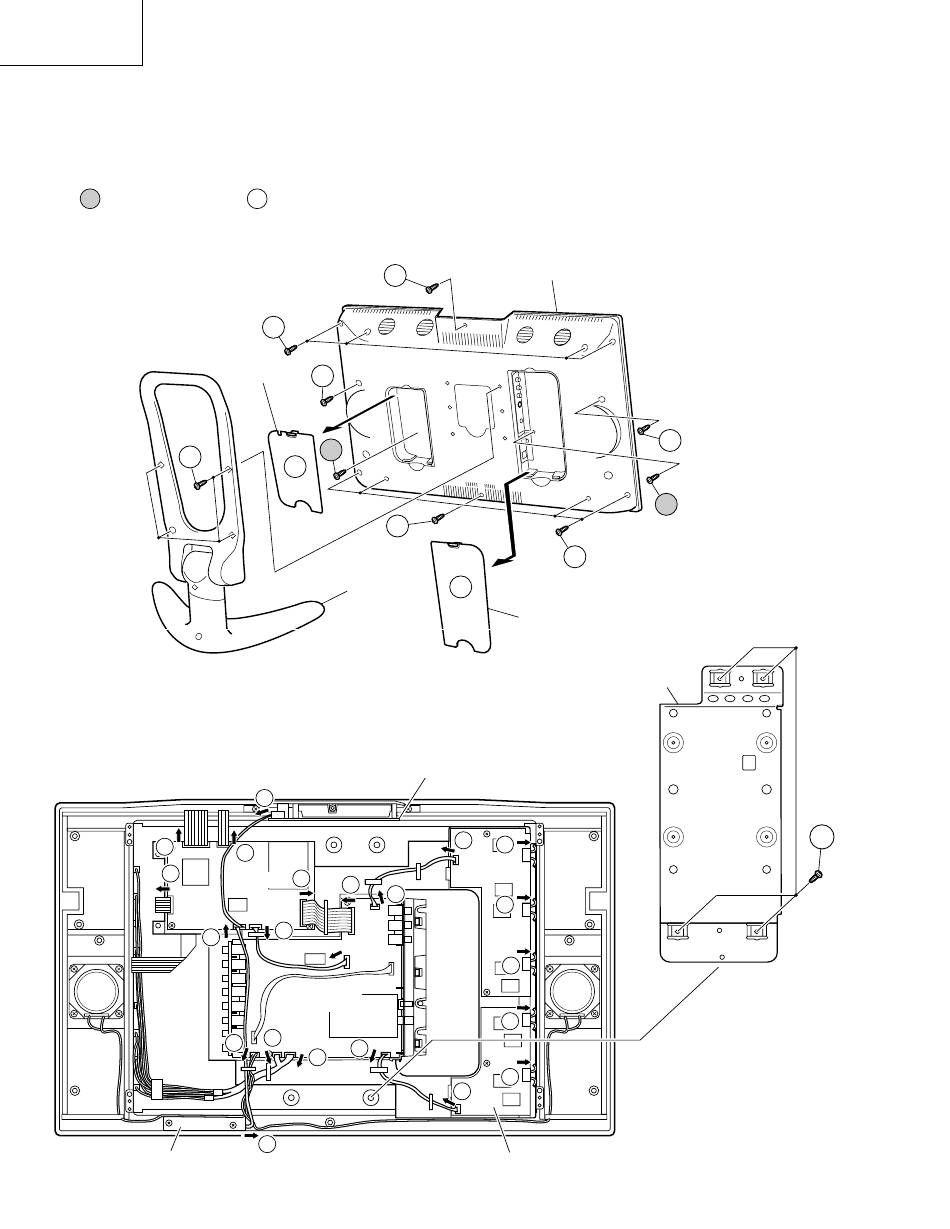

1. Remove the two back covers.
2. Remove the table stand fixing screws (4 pcs.).
3. Remove the cabinet B fixing screws (14 pcs.) and detach the cabinet.
( : XBBSF30P06000,
3
4. Remove the reinforcement angle fixing screws (4 pcs.).
5. Detach the connector from each PWB.
2
5
5
R/C Receiver PWB

REMOVING OF MAJOR PARTS

: XEBSF40P16000)
3
3
Back cover
3
3
1
Table stand
5
5
5
Main PWB
5
5
5
Terminal PWB
5
5
5
5
5
Cabinet B
3
3
3
1
Back cover
Reinforcement angle
Operation PWB
5
5
Inverter-A
PWB
5
5
5
5
5
5
Inverter-B PWB
6
3
3
4
