Cornelius enduro 200 Operator's Manual

Ice/beverage
Hide thumbs Also See for enduro 200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Operator's Manual

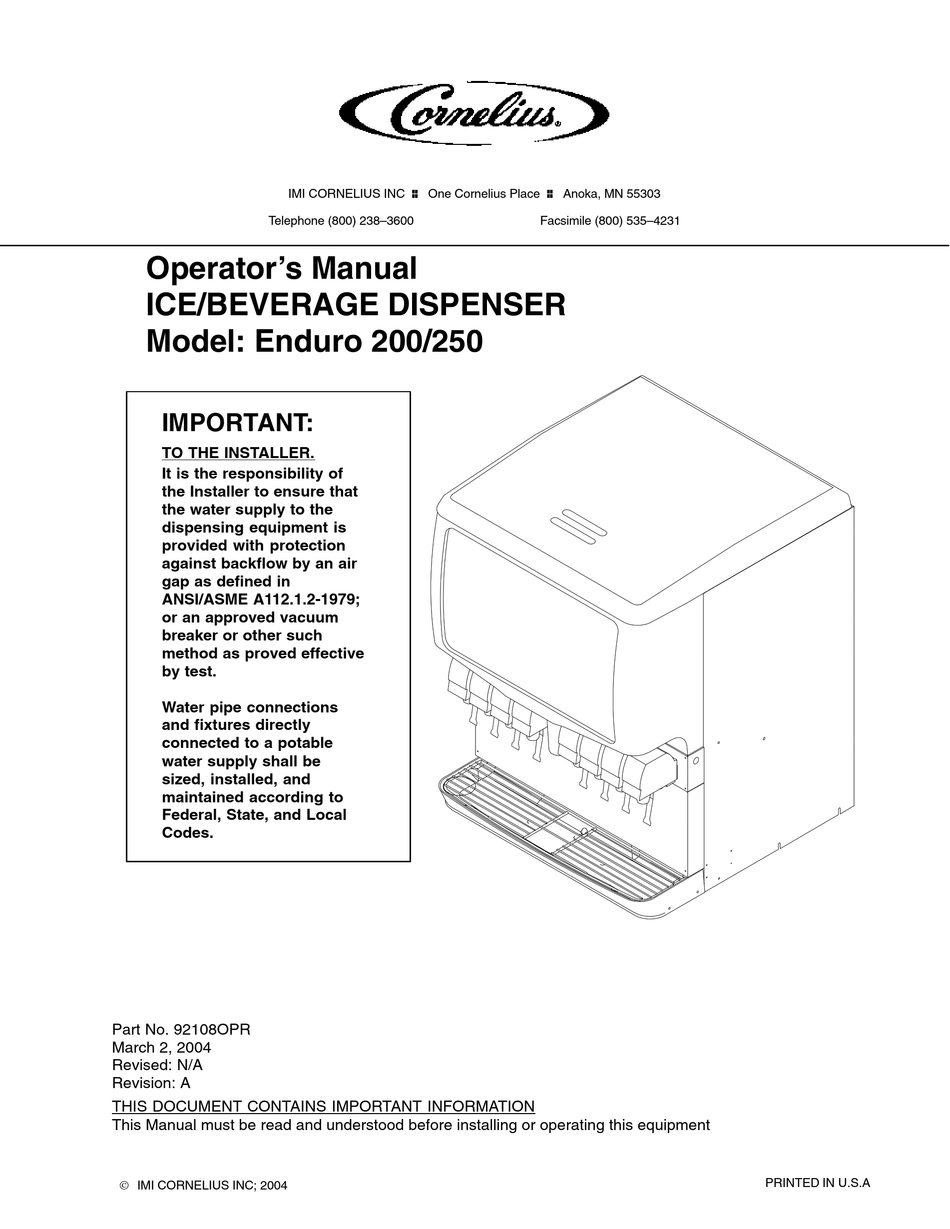

IMI CORNELIUS INC g One Cornelius Place g Anoka, MN 55303
Telephone (800) 238–3600
Operator's Manual
ICE/BEVERAGE DISPENSER
Model: Enduro 200/250
IMPORTANT:
TO THE INSTALLER.
It is the responsibility of
the Installer to ensure that
the water supply to the
dispensing equipment is
provided with protection
against backflow by an air
gap as defined in
ANSI/ASME A112.1.2-1979;
or an approved vacuum
breaker or other such
method as proved effective
by test.
Water pipe connections
and fixtures directly
connected to a potable
water supply shall be
sized, installed, and
maintained according to
Federal, State, and Local
Codes.
Part No. 92108OPR
March 2, 2004
Revised: N/A
Revision: A
THIS DOCUMENT CONTAINS IMPORTANT INFORMATION
This Manual must be read and understood before installing or operating this equipment
IMI CORNELIUS INC; 2004
Facsimile (800) 535–4231
PRINTED IN U.S.A

Advertisement

Table of Contents
loading

Related Manuals for Cornelius enduro 200

Summary of Contents for Cornelius enduro 200

  • Page 1 IMI CORNELIUS INC g One Cornelius Place g Anoka, MN 55303 Telephone (800) 238–3600 Facsimile (800) 535–4231 Operator’s Manual ICE/BEVERAGE DISPENSER Model: Enduro 200/250 IMPORTANT: TO THE INSTALLER. It is the responsibility of the Installer to ensure that the water supply to the...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page MAINTENANCE ............DAILY (OR AS REQUIRED) .

  • Page 3: Maintenance

    MAINTENANCE The following dispenser maintenance should be performed at the intervals indicated: DAILY (or as required) Remove foreign material from vending area drip tray to prevent drain blockage. WEEKLY (or as required) Clean vending area. Check for proper water drainage from the vending area drip tray. MONTHLY Clean and sanitize the hopper interior and beverage system if applicable (see CLEANING INSTRUCTIONS).

  • Page 4: Dispenser

    DISPENSER 1. CLEANING EXTERIOR SURFACES Important: Perform the following daily. Remove the cup rest from drip tray. Wash the drip tray with soap solution. Rinse with clean water and allow solution to run down the drain. Wash cup rest with soap solution and rinse in clean water. Install the cup rest into the drip tray. Clean all exterior surfaces with soap solution and rinse in clean water.

  • Page 5: Beverage System (If Applicable)

    BEVERAGE SYSTEM (IF APPLICABLE) CLEANING WARNING: Disconnect Power Before Cleaning! Do not use metal scrapers, sharp objects or abrasives on the ice storage hopper, top cover and the agitator disk, as damage may result. Do not use solvents or other cleaning agents, as they may attack the plastic material. Soap solution - Use a mixture of mild detergent and warm 100 degrees F potable water.
  • Page 6 11. For post-mix valves, remove the nozzle and syrup diffuser and clean them in a mild soap solution. Rinse with clean water, then reinstall the nozzle and syrup diffuser on the valve. 12. For pre-mix valves, disconnect all product tubes from the tank of sanitizing solution and then open the valves to allow the pressure to be relieved.
  • Page 7 WARNING: Disconnect Power Before Cleaning ! Soap solution – Use a mixture of mild detergent and warm (100 F) potable water. Sanitizing solution – Use ½ ounce of household bleach in 1 gallon of potable water. Preparing the sanitizing solution to this ratio, the required solution of 200 PPM will be obtained. Cleaning tank –...

  • Page 8: Troubleshooting

    TROUBLESHOOTING IMPORTANT: Only qualified personnel should service internal components or electrical wiring. WARNING: If repairs are to be made to a product system, remove quick disconnects from the applicable product tank, then relieve the system pressure before proceeding. If repairs are to be made to the CO system, stop dispensing, shut off the CO supply, then relieve the...

  • Page 9: Beverage Not Sweet Enough

    Trouble Probable Cause BEVERAGE NOT SWEET ENOUGH. Empty syrup tank. Faucet brix requires adjusting. BEVERAGES NOT COLD (UNITS WITH BUILT–IN Unit standing with no ice in hopper – no ice in COLD PLATE). cold plate cabinet. FLAVOR SYRUPS DO NOT DISPENSE No 24 volt power to PC board.

  • Page 10: Warranty

    WARRANTY IMI Cornelius Inc. warrants that all equipment and parts are free from defects in material and workmanship under normal use and service. For a copy of the warranty applicable to your Cornelius, Remcor or Wilshire product, in your country, please write, fax or telephone the IMI Cornelius office nearest you.
  • Page 11 IMI CORNELIUS INC. Corporate Headquarters: One Cornelius Place Anoka, Minnesota 55303-6234 (763) 421-6120 (800) 238-3600...

This manual is also suitable for:

Enduro 250
