INSTALLATION *

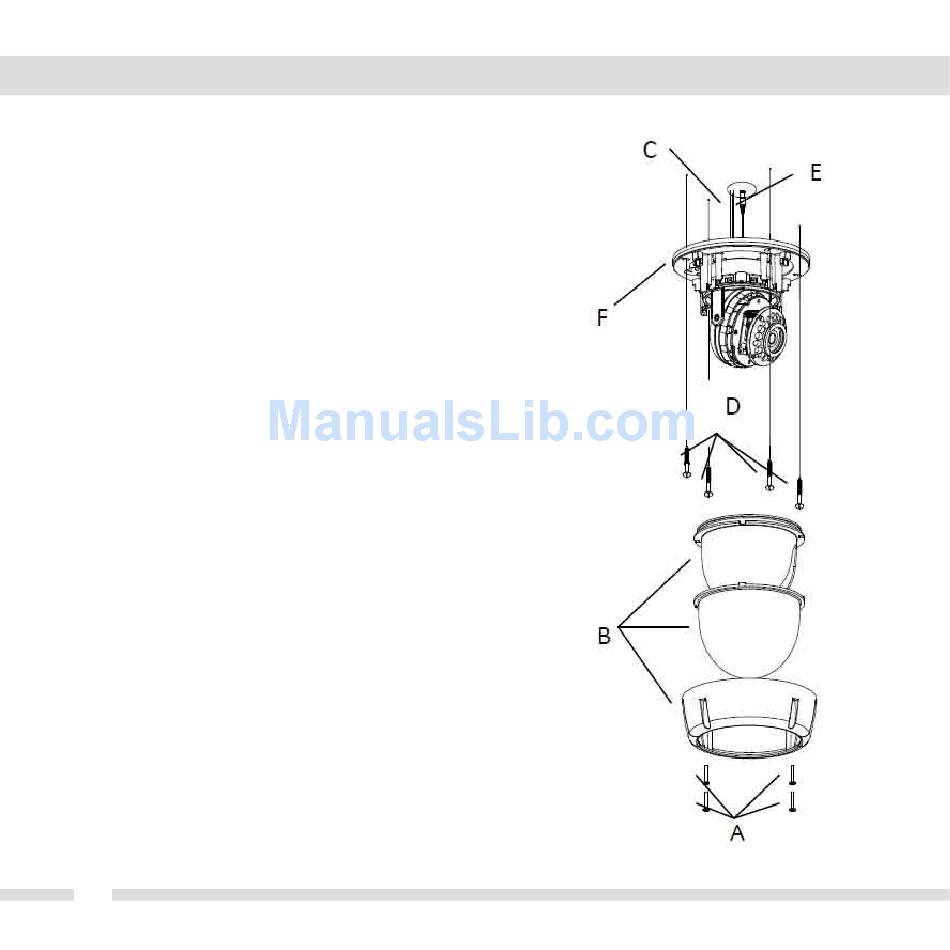

A. Loosen the Screws (A) with the Security L-Key
included with your camera.
B. Separate the Upper Case (B) from the Base (F).
C. Cut a hole in the ceiling for routing the cables.
D. Use the Mounting Template to drill the four
screw holes on the surface of the ceiling.
E. Pass the Power Cable (C) and the Video Cable (E)
from the camera unit through the hole in the
ceiling.
F. Align the screw holes of the camera unit with
the holes in the ceiling. Secure the four screws.
G. Install and adjust the camera unit.
H. Assemble the Upper Case (B) and the Base (F).
I. Put the upper case and the base together.
J. Tighten the outer Screws (A) using the Security
L-Key.
