FOR YOUR SAFETY: Do not store or use gasoline
or other flammable vapors and liquids in the vicinity of
this or any other appliance.
FOR YOUR SAFETY: What To Do If You Smell
Gas:
•
Do not touch electrical switches.
•
Do not try to light any appliance.
•
Do not use the phone in your building.
•
Immediately call your gas supplier from a
neighbor's phone.
•
Follow your gas supplier's instructions.
•
If you cannot reach your gas supplier, call the
fire department.
WARNING:
Improper
alteration, service or maintenance can cause injury or
property damage.
Refer to this manual.
assistance
or
additional
qualified, service agency, or the gas supplier. In the
Commonwealth of Massachusetts, all installation of
gas lines and gas fitting shall only be done by a
licensed gas fitter or licensed plumber.
installation,
adjustment,
For
information
consult
GAS-FIRED DIRECT VENT
READ THIS OWNER'S MANUAL
Operate and maintain this gas heater
according to instructions in this manual.
Read this manual in its entirety
POUR VOTRE SÉCURITÉ: Ne pas entresposer ni
utiliser d'essence ni d'autre vaperurs ou liquides
inflammables dans le voisinage de cet apprareil ou de
tout autre appareil.
POUR VOTRE SÉCURITÉ:
sentez une odeur de gaz:
Ne pas tenter d'allumer d'appareil.
Ne touchez à aucun interrupteur.
servir des téléphones se trouvant dans le
batiment où vous vous trouvez.
Evacuez la pièce, le bâtiment ou la zone.
Appelez immédiatement votre fournisseur de gaz
depuis un voisin. Suivez les instructions du
fournisseur.
Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service dos incendies.
AVERTISSEMENT: Une installation, un réglage, une
modification, un entretien ou une maintenance
incorrects
peuvent
a
matériels, des lésions corporelles ou la perte de vies
humaines. Consulter le manuel des usagers fourn
avec ce générateur d'air chaud.

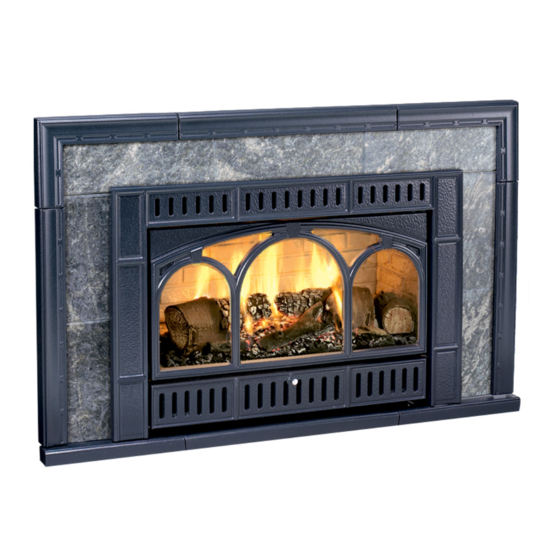

DVI-Ht
(Model 8890)
FIREPLACE INSERT
Que faire si vous
Ne pas vous
entrâiner
des
dommages
DVI Ht Model 8890
Manual: 6400-40452
Revised: 10/21/09
Advertisement
Table of Contents
Related Manuals for HearthStone DVI-HT 8890
Summary of Contents for HearthStone DVI-HT 8890
- Page 1 DVI-Ht (Model 8890) GAS-FIRED DIRECT VENT FIREPLACE INSERT READ THIS OWNER’S MANUAL Operate and maintain this gas heater according to instructions in this manual. Read this manual in its entirety FOR YOUR SAFETY: Do not store or use gasoline POUR VOTRE SÉCURITÉ: Ne pas entresposer ni or other flammable vapors and liquids in the vicinity of utiliser d’essence ni d’autre vaperurs ou liquides this or any other appliance.
- Page 2 OWNER’S MANUAL DVI-Ht Model # 8890 Page 2 of 32...
- Page 3 OWNER’S MANUAL DVI-Ht Model # 8890 INFORMATION SHEET Record all relevant information concerning the purchase, installation, and maintenance of your Gas- Fired Direct Vent Insert. This information will facilitate servicing, purchase of replacement parts, and warranty claims (if necessary). Keep your original receipt in a safe place as proof of purchase. Serial Number: _______________________ Fuel type (check one) Natural Gas...
-
Page 4: Table Of Contents
OWNER’S MANUAL Model # 8890 DVI-Ht TABLE OF CONTENTS INTRODUCTION..............................5 CODES..................................5 SAFETY INFORMATION............................6 SPECIFICATIONS ..............................8 UNPACKING................................9 CLEARANCES TO COMBUSTIBLES ......................... 10 VENTING COMPONENTS & CONFIGURATION ....................12 Restrictor Disc ..............................12 Venting System Installation ..........................13 ELECTRICAL CONNECTIONS .......................... -
Page 5: Introduction
Also available through your efficient heat for years to come. The combination of local Hearthstone dealer is an optional front door elegant cast iron and durable steel construction screen (Kit #98-69700) which enhances the realistic gives the DVI-Ht attractive looks and allows for years flame. -
Page 6: Safety Information
OWNER’S MANUAL Model # 8890 DVI-Ht SAFETY INFORMATION Your DVI-Ht will remain appealing while part of the control system and gas control, which was under water. (Ne pas se servir de cet appareil providing years of quality performance when s’il a été plongé dans l’eau, complètement ou en you follow a few simple safety precautions, and partie. - Page 7 Use of any components draperies, clothing and flammable materials. Alert not supplied by Hearthstone on the stove voids all children and adults to the hazards of high surface warranties. Do not substitute components.
-
Page 8: Specifications
This appliance is not appareil n’est pas décapotable pour l’emploi avec convertible for use with other gases, unless a autres gaz, à moins qu’un équipement certifié est qualified Hearthstone kit is used. employé. Page 8 of 32... -
Page 9: Unpacking
OWNER’S MANUAL Model # 8890 DVI-Ht UNPACKING 40’ Wire Inspect for Damage 1 Thermostat The DVI-Ht is packaged by the manufacturer to 1 LP Conversion Kit withstand shipment without damage under most 1 Restrictor Disc circumstances. However, damage can occur during 2 Metal Surround Flanges transit and handling. -
Page 10: Clearances To Combustibles
OWNER’S MANUAL Model # 8890 DVI-Ht CLEARANCES TO COMBUSTIBLES Due to high surface temperatures, locate the unit Hearth Requirements away from furniture and draperies. Do not place The DVI ht requires a non-combustible hearth pad clothing and other flammable material on or near the that extends no less than 14”... - Page 11 OWNER’S MANUAL Model # 8890 DVI-Ht Figure 3: Surround Clearance to Combustibles Page 11 of 32...
-
Page 12: Venting Components & Configuration
OWNER’S MANUAL Model # 8890 DVI-Ht VENTING COMPONENTS & CONFIGURATION DO NOT vent The DVI-Ht jointly with any other solid Restrictor Disc fuel or gas appliance. Vent the DVI-Ht directly to the Your DVI-Ht is supplied with a vent restrictor disc. outside of the building using a proper termination as This disc will provide excellent restriction for vertical listed in the following pages. -
Page 13: Venting System Installation
High Wind Termination Cap Dura-Vent #991 High Temperature Silicone screwdriver or 5/16" nut driver. Four 3-1/2" Hose Clamps (all steel or stainless) *Available through your local Hearthstone dealer. Observe the following guidelines when installing the vent pipes: WARNING! UNDER NO CIRCUMSTANCES BLOCK THE FLOW OF COMBUSTION OR VENTING AIR. -
Page 14: Electrical Connections
OWNER’S MANUAL Model # 8890 DVI-Ht ELECTRICAL CONNECTIONS Install the “AA” battery in the pilot igniter box Thermostat Wiring The thermostat wire from the unit to the thermostat under the gas component tray before attempting to light the unit. can be surface mounted, routed under the floor, or through walls, etc. - Page 15 OWNER’S MANUAL Model # 8890 DVI-Ht Wiring Diagram - DVI ht Wiring Color KEY: NOTE: Numbers on switch are shown on opposite side. Figure 4: Wiring Diagram Page 15 of 32...
-
Page 16: Gas Supply And Connections
OWNER’S MANUAL Model # 8890 DVI-Ht GAS SUPPLY AND CONNECTIONS NOTICE: A qualified technician must connect mechanical load on the valve. We recommend using the flexible line, but also refer to local code. the heater to the gas supply and leak test the unit before it is approved for use. - Page 17 OWNER’S MANUAL Model # 8890 DVI-Ht Figure 5 Page 17 of 32...
-
Page 18: Assembling And Installing The Unit
OWNER’S MANUAL Model # 8890 DVI-Ht ASSEMBLING AND INSTALLING THE UNIT Log Placement within the Unit 4) Install the four main logs as shown in the figure below. Spread the Platinum Bright Embers over the logs and burner. Figure 9: Log Placement Left log Right log Fragile! Handle logs with care. - Page 19 OWNER’S MANUAL Model # 8890 DVI-Ht Installing the Glass and Frame 2. Push the unit as far into the fireplace as you can, leaving just enough room for the fan 1. Set the bottom of the glass frame into the power cord to exit on the bottom left or right two grooves on the bottom of the firebox.
-
Page 20: Lighting The Unit For The First Time
OWNER’S MANUAL Model # 8890 DVI-Ht LIGHTING THE UNIT FOR THE FIRST TIME CAUTION: LIGHTING THE DVI-HT FOR THE FIRST Prior to lighting the unit for the first time, wait 5 TIME AND ADJUSTMENTS TO THE UNIT SHOULD minutes to allow any residual gas within the unit to PERFORMED QUALIFIED SERVICE... -
Page 21: Turning Off The Unit
OWNER’S MANUAL Model # 8890 DVI-Ht Normally, if the “T-STAT” position was selected, the pilot off, turn the gas control knob fully clockwise to main burner is cycled on and off by the Thermostat the “Off” position. or the “on”, “off” switch located on the bottom of the Thermostat body. -
Page 22: Pilot And Burner Flames
OWNER’S MANUAL Model # 8890 DVI-Ht PILOT AND BURNER FLAMES Note that the pilot flame must engulf the thermopile Variable Output Control so the thermopile can generate sufficient voltage (325 The gas control valve is equipped with a variable to 750mv) to power the millivolt gas control valve. output control. -
Page 23: Maintenance And Care
For replacement parts, or for information about parts debris. To clean the firebox, turn the valve to the or service, contact your authorized Hearthstone “OFF” position, and turn off the gas at the gas retailer. For the name of the authorized retailer control valve. -
Page 24: Parts List
OWNER’S MANUAL Model # 8890 DVI-Ht PARTS LIST Part No. Description 2810-400 GRILLE: TOP,MATTE,KIL 2810-824 HEAT EXCHANGER: 2810-825 HEAT EXCHANGER: BASE 2810-910 GRILLE: BOTTOM 2810-920 HANDLE: FLAME 2810-930 FRAME: CENTER 2810-940 DOOR: LEFT 2810-950 DOOR: RIGHT 3030-021 GLASS: 25-29/32"x13-13/16"x5mm,DVI 3120-890 FILLER: BURNER LOG, LEFT 3120-891 FILLER: BURNER LOG, RIGHT... - Page 25 OWNER’S MANUAL Model # 8890 DVI-Ht 7211-508 LOG: CENTER TWIG 7211-509 LOG: PILOT FILLER Description PARTS LIST cont. Part No. 98-56900 (NG)FUEL CONVERSION 3300-651 LABEL: BAG,NG CONVERSION KIT,WIN/DVI 32 7200-743 ORIFICE: BURNER HOOD,#43 SPUD 7200-752 ORIFICE: BURNER HOOD,#52 SPUD 7211-163 ORIFICE: PILOT,NG,.62mm,CONVERT TOP,SIT 7211-319 REGULATOR:VALVE,NG,SIT, CONVERSION...
-
Page 26: Troubleshooting
OWNER’S MANUAL Model # 8890 DVI-Ht TROUBLESHOOTING Symptom Possible Cause Corrective Action 1. Pilot will not light. A. Using the piezo igniter, try to light the pilot. If it will A. Insufficient gas pressure, not light, check the inlet gas pressure. air in the pilot line, or dirty or kinked gas line. - Page 27 OWNER’S MANUAL Model # 8890 DVI-Ht Symptom Possible Cause Corrective Action 3. Pilot burning, no gas to A. Thermostat switch or A. Check thermostat/wiring for proper connections. main burner, and valve wires defective. Place jumper wire across terminals at thermostat. If knob in the "ON"...
- Page 28 OWNER’S MANUAL Model # 8890 DVI-Ht Symptom Possible Cause Corrective Action 8. Floating flames, lazy ill- A. Potentially dangerous A. Check the appliance input rate and reduce if defined, quiet flames, which incomplete combustion due necessary. The air intake/exhaust flow system may be roll around, sometimes to incorrect air to fuel ratio too restrictive or blocked (the rate at which the...
-
Page 29: Safety Label
OWNER’S MANUAL Model # 8890 DVI-Ht SAFETY LABEL Error! Objects cannot be created from editing field codes. Page 29 of 32... -
Page 30: Limited Warranties
All obligations of Hearthstone under this document commence on the date the Original Purchaser purchases the Stove (the “Purchase Date”). LIMITED LIFETIME WARRANTY Hearthstone warrants the following parts of the Stove against the following occurrences that result from defects in material and workmanship: •... - Page 31 Hearthstone or the Dealer, as the case may be, will instruct the Original Purchaser to either return the defective part, or the entire Stove (if needed), with shipping prepaid, to Hearthstone or a Dealer or allow a Dealer to make...
- Page 32 Stove is located. In the event the Original Purchaser refuses to allow a Dealer to make a service call, Hearthstone or a Dealer, as the case may be, will request that the Original Owner return the defective part, or the entire Stove (if needed), with shipping prepaid, to Hearthstone or a Dealer.
