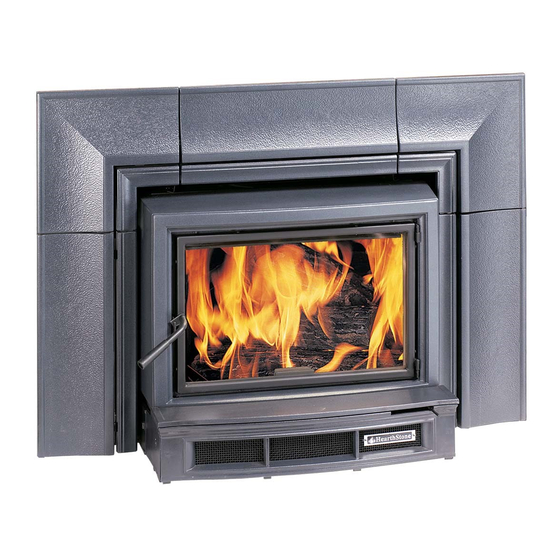

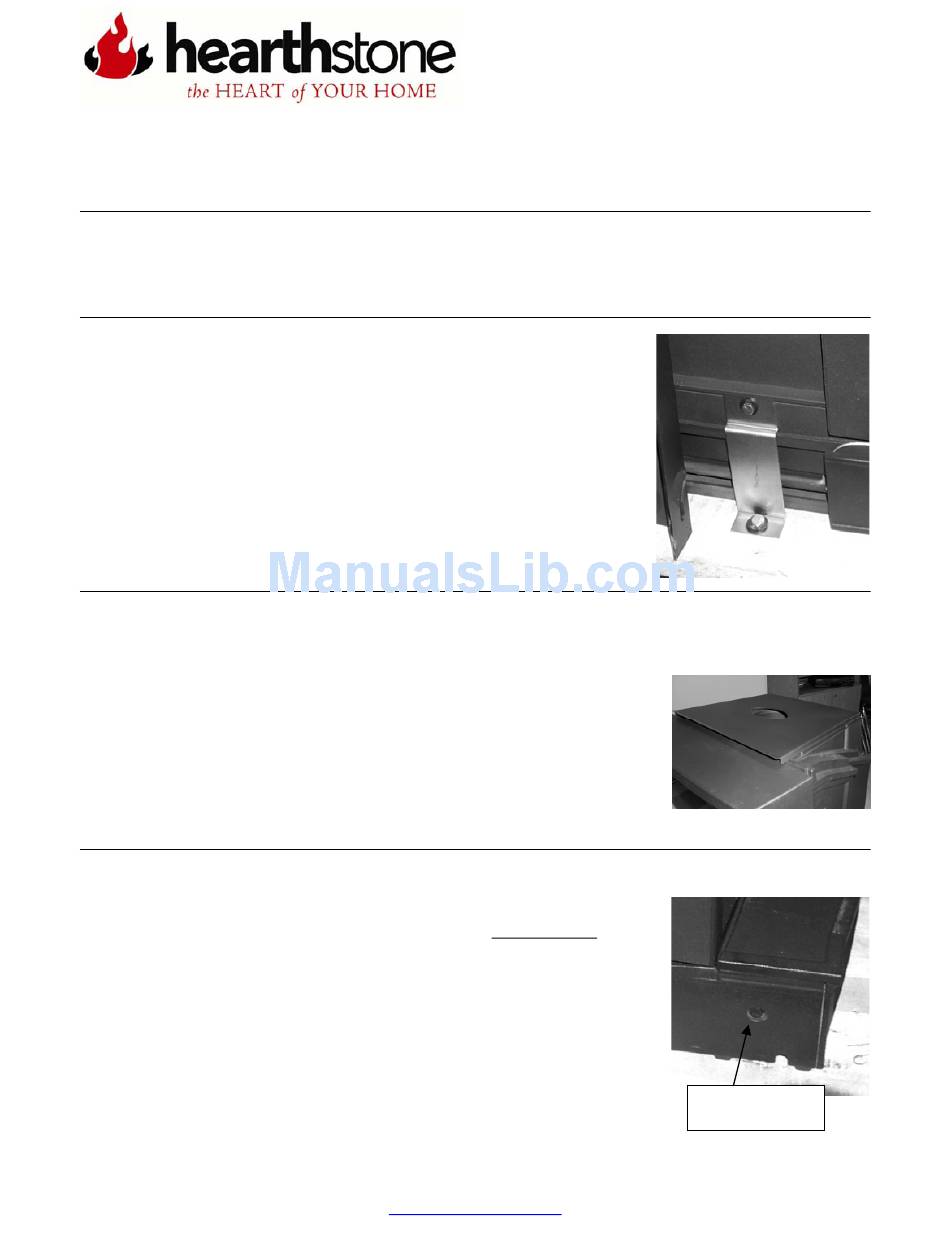

Preparing the Morgan 8470 Wood Insert for Installation

(Refer to Owner's Manual for the complete installation instructions)
1.
Remove the contents within the firebox (owner's manual, baffle and soapstone
refractory box) Remove the hang tag on the front door and place in the owner's
manual). Note: Lift the baffle straight up while another person removes the box of
refractory stone then tip the baffle to remove it.
2
. Using a ½" and 7/16" wrench, remove the left and right pallet
mounting clips. (Keep the ¼-20 bolt with a 7/16" head, as it will
be used to install the surround bracket), discard the pallet clips
and lag screws.
3
. Remove the flue collar, which is installed upside down for
shipping.
4
. Remove the ash lip assembly by loosening (
the forward Phillips head screw on both sides of the assembly.
Pull the ash lip 3 or 4 inches away from the unit and disconnect
the wires from the snap disc. Ensure you do not damage the
blower (or its wiring) which is pre-installed under the ash lip.
Revised: 10/6/2008
NOT REMOVING
©HearthStone Quality Home Heating Products, Inc.
www.hearthstonestoves.com
)
Ash lip clamping
screw
Page 1 of 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Morgan 8470 and is the answer not in the manual?

Questions and answers

Related Manuals for HearthStone Morgan 8470

Summary of Contents for HearthStone Morgan 8470

  • Page 1 Preparing the Morgan 8470 Wood Insert for Installation (Refer to Owner’s Manual for the complete installation instructions) Remove the contents within the firebox (owner’s manual, baffle and soapstone refractory box) Remove the hang tag on the front door and place in the owner’s manual).
  • Page 2 Forward position Aft position . Install the top heat shield Flue collar shown in the aft position (you will install it later ©HearthStone Quality Home Heating Products, Inc. www.hearthstonestoves.com Revised: 10/6/2008 Page 2 of 7...

  • Page 3: Leveling Bolts

    . Level the unit using a 9/16” and 7/16” wrench or ratchet on the three leveling bolts. (To level the rear bolt, you must first loosen the jam nut at the base of the bolt) Leveling bolts ©HearthStone Quality Home Heating Products, Inc. www.hearthstonestoves.com Revised: 10/6/2008...
  • Page 4 This end up ! 3/8" Medium density Reversable Flue gasket (Front-Back) . Attach the surround to the unit. (The Owner’s Manual contains full instructions on how to install) ©HearthStone Quality Home Heating Products, Inc. www.hearthstonestoves.com Revised: 10/6/2008 Page 4 of 7...
  • Page 5 If it does not come down. It is in the place. Baffle sleeves Shelf tabs . Locate and mount the front door handle using the 3” bolt and lock washers provided. ©HearthStone Quality Home Heating Products, Inc. www.hearthstonestoves.com Revised: 10/6/2008 Page 5 of 7...
  • Page 6 Place the remaining stones on the floor of the unit referring to the figure below. Stone retainer clips Reference# Size____ 9” x 4-1/2” 9” x 4” 8-1/2” x 1-1/2” ©HearthStone Quality Home Heating Products, Inc. www.hearthstonestoves.com Revised: 10/6/2008 Page 6 of 7...
  • Page 7 . The door to the Morgan is reversible. It can be opened from the left hand side, or the right. It will be shipped from Hearthstone opening on the left hand side. To switch the door to open from the right, simply remove the ash lip assembly and front facade.
