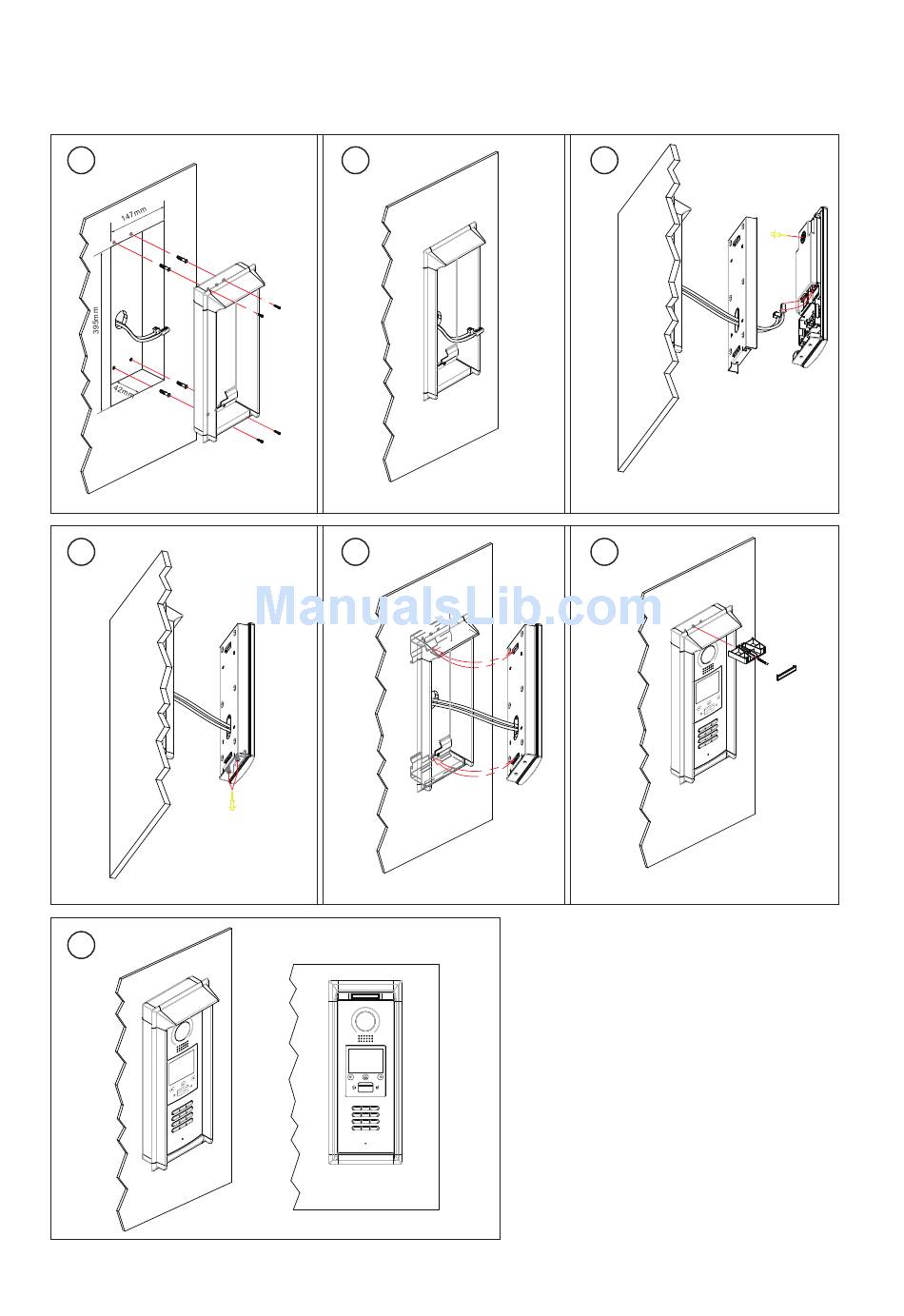

3. Door Station Mounting

1
Drill a hole and attach the
rainy cover to it
4
Attach screws to fix the
metal box
7
-2-
2
5
The last view for all mounting
The view for rainy
cover after mounted
Attach the unit to the rainy
cover correctlly
RF CARD
3
Camera
angle
Adjust the camera angle and attach the
metal to the panel and wire correctly.
6
Attach the baffle to protect
the unit from droping
