Specification - V-tech IP-MR18S User Manual

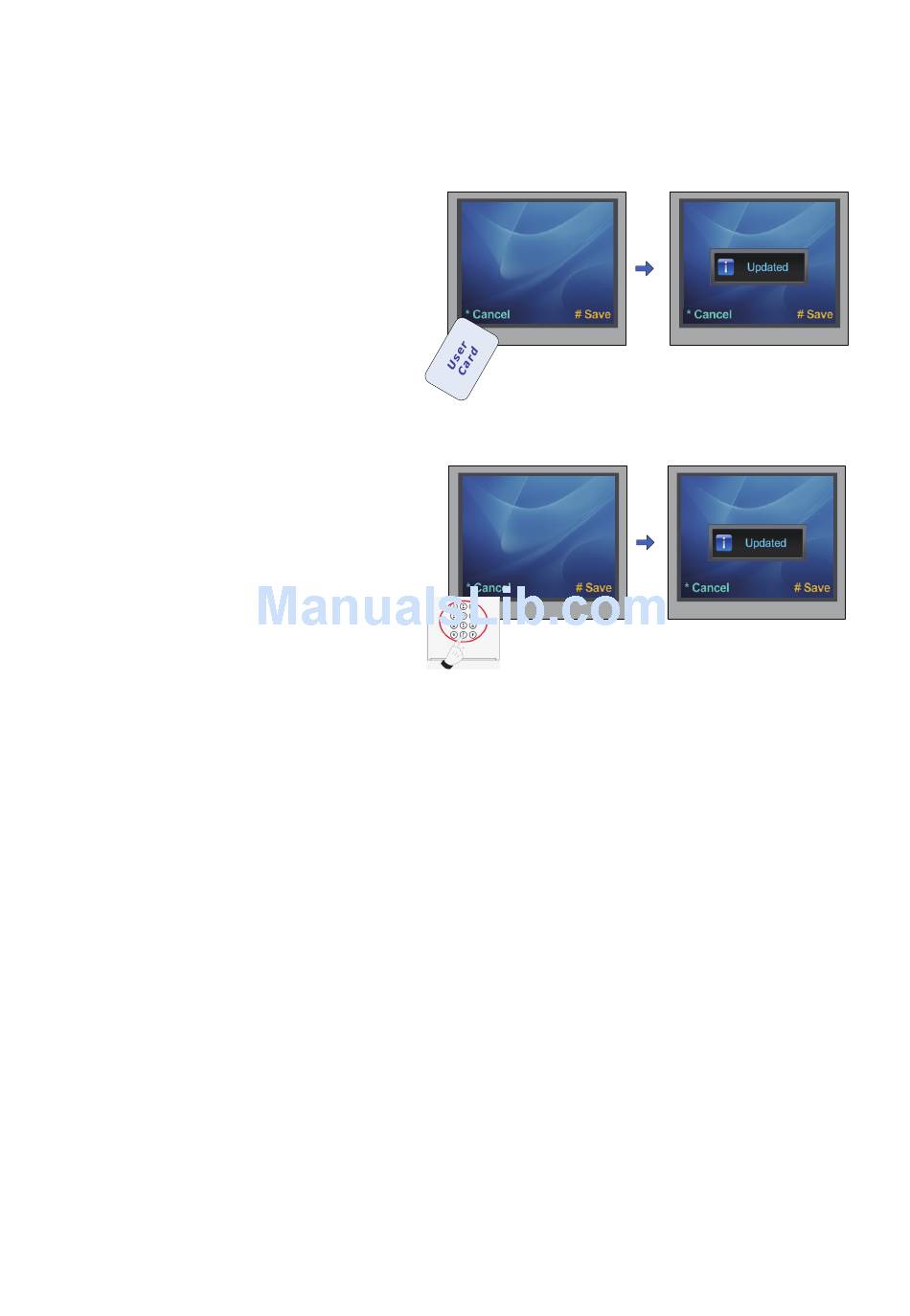

Delete By Card:
In Debug State , Press [1 #] --> [3] Card
Manage -->[2] Delete By Card to enter
Delete by Card page.as shown on the
right, then show the cards you want to
delete one by one.
Delete by Room Number:
In Debug State , Press [1 #] --> [3] Card
Manage -->[3] Delete By M.Code to enter
Delete by M.Code page.as shown on the
right, then Input the Room Code, press
"#" to confirm; all associated cards will be
deleted.

11. Specification

● Power supply: DC 18~24V
● Camera Lens : 1/4 ACS 4T image sensor with DSP processor
● Power consumption: Standby 3W;Working status 7.5W
● Screen: 3.5 inch TFT
● Resolution: 320(R, G, B)X240 pixels
● Video signal: CCIR/EIA Optional
● Wiring: Cat5
● Dimension: 350(H)×128(W)×46(D)mm
2 . D e l e t e B y C a r d
S h o w T h e C a r d
3 . D e l e t e B y M . c o d e
[ - - - - ]
P l e a s e I n p u t R o o m C o d e
2 . D e l e t e B y C a r d
C a r d N u m b s : 0 0 0 1 2 5 7 8 9
3 . D e l e t e B y M . c o d e
[ 0 0 0 1 ]
P l e a s e I n p u t R o o m C o d e
-13-
