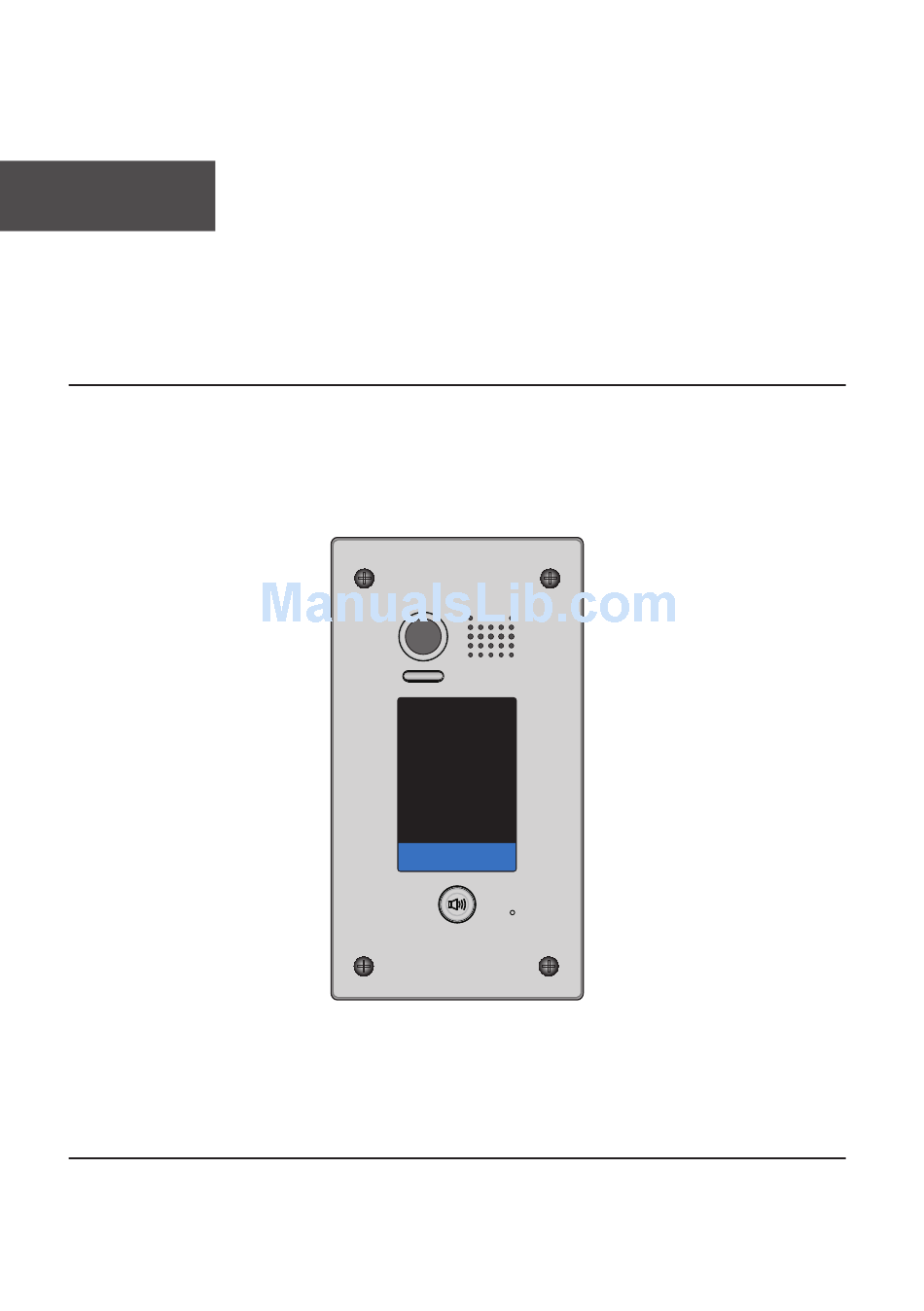

- Page 1 English 2-Wire Video Outdoor Station User Manual DT601FE/KP DT-ENG-601FE/KP-V1 151019...
-
Page 3: Table Of Contents
Contents 1.Parts and Functions..................... 1 2.Terminal Descriptions ..................1 3.Door Station Mounting ..................2 4.System Wiring and Connections ................. 3 5.Fisheye Camera Function ................... 7 6. Functions Setting Up ..................7 7.Unlock Operations ....................15 8. Precaustions ....................... 15 9.Specifications ...................... 15 10.Cables Requirements .................. -
Page 4: Parts And Functions
Touch Sensitive Digital Keypad Nameplate Call Button Microphone Screws for panel mounting 120 mm DT601FE/KP Side View Mounting box 2.Terminal Descriptions Lock Control Jumper P L S + B U S Main Connect Port • Lock Control Jumper: To select the lock type. -
Page 5: Door Station Mounting
3.Door Station Mounting DT601FE/KP Mounting Drill a hole in the wall to match the size of the Connect the cable correctly mounting box and attach to the wall. Attach the panel to the mounting box and use screws supplied to fix the panel... -
Page 6: System Wiring And Connections
4.System Wiring and Connections Basic Connection BUS(IM) BUS(DS) L1 L2 PL S+ S- Doorbell Button Switch Electric Lock Connection Door Lock Controlled with Internal Power Note: 1 2 3 Electronic lock of Power-on-to-unlock type should be used. Jumper position in 2-3 The door lock is limited to 12V, and holding current must be less than 250mA. -
Page 7: Door Lock Controlled With Dry Contact
Door Lock Controlled with Dry Contact Note: The external power supply must be used according Take off the Jumper to the lock. The inside relay contact is restricted to AC or DC 24V/1A. The jumper must be taken off before connecting. Setup the Unlock Mode of Monitor for different lock types. -
Page 8: Multi Door Stations Connection
Multi Door Stations Connection 3# Camera 2# Camera 1# Camera 4# Camera (Device Address:2) (Device Address:1) (Device Address:0) (Device Address:3) 100~240VAC A B C D DBC4A BUS(IM) BUS(DS) Impedance switch Multi Monitors Connection Basic IN-OUT Wiring Mode Code=15 Code=14 Code=0 100~240VAC BUS(IM) BUS(DS) (Device Address:0) - Page 9 With DBC4A Wiring Mode Impedance Code=15 Code=14 OFF ON switch Code=13 Code=12 Code=3 Code=2 Impedance OFF ON switch Code=1 Code=0 100~240VAC BUS(IM) BUS(DS) (Device Address:0) NOTE:Here we take DT47M(the monitor) for example.
-
Page 10: Fisheye Camera Function
5. Fisheye Camera Function Note that this function requires the monitor with fisheye function to support. Press CALL button on outdoor station and the Monitor rings with screen on, or during monitoring state, the visitors' image will be shown on screen: In five direction pad mode, you can zoom in or zoom out the range of monitoring to identify everyone at the entrance. - Page 11 Order Setting items Setting range Default value Setting code Reset all settings 1234 1 ~ 12 digits Setting the master code 1234 Valid keys:0 ~ 9 Setting the key 10 to 99 seconds/ 10 seconds illumination time continually lit Setting the unlock time 01 to 99 seconds 1 seconds Setting the unlock mode...
- Page 12 Each operation is indicated by the lighting up of the different color of digital key and nameplate , and by the sounding of the buzzer. The color of key indicator Input the master code. (Default: [ ] +[#] ) (white) Beep+, Beep 1.Reset all settings 2.Setting the master code...
- Page 13 The color of key indicator Input the master code. (Default: [ ] +[#]) (white) Beep+, Beep 5.Setting the unlock mode 6.Setting operation tone 7.Reset code setting 8. &# function setting (Default 0(opened)) (Default ON) (Default Normal) Input the setting code. Input the setting code.
- Page 14 Input the master code. The color of key indicator (Default: [ ] +[#]) Beep+, Beep (white) 9. Call tone setting 10.Interference resistant 11.IMC volume adjust 12.SPK volume adjust grade setting setting setting (Default enable) (Default 2) (Default:7) (Default:4) Input the setting code. Input the setting code.
- Page 15 Input the master code. The color of key indicator (Default: [ ] +[#]) Beep+, Beep (white) 13. Display scene setting 14.Night light level 15.Device address setting setting (Default 0) (Default 4) (Default:0 ) Input the setting code. Input the setting code. Input the setting code.
- Page 16 Input the master code. The color of key indicator (Default: [ ]+[#] ) Beep+, Beep (white) 16.Setting the code 17.Setting the code 18.Setting the code 19.Setting the code forTemporary1 forTemporary2 for user group1 for user group2 20~59 60~99 Input the setting code. Input the setting code.
- Page 17 Input the master code. The color of key indicator (Default: [ ]+[#] ) Beep+, Beep (white) 20.Work mode setting 21.Call address setting (Default:villa:00,16; (Default:1/villa) a partment:00~31) Input the setting code. Input the setting code. 100+# 101+# The color of key indicator The color of key indicator (yellow) Beep+, Beep...
-
Page 18: Unlock Operations
7.Unlock Operations Unlocking of user code When the registered user code has been input using the keypad (1~12 digits), the LED background indicator lights up, the buzzer sounds,and the electric door strike is unlocked.(note that you should press "#" button(if "#" button is set to confirm button) after input the unlock code) •... -
Page 19: Cables Requirements
10.Cables Requirements The maximum distance of the wiring is limited in the DT system. Using different cables may also affect the maximum distance which the system can reach. The farest monitor monitor with two or four monitors monitor monitor DBC4A 100~240VAC When Monitor quantity <... - Page 20 The design and specifications can be modified without notice to the user. Right to interpret and copyright of this manual are reserved. DT-ENG-601FE/KP-V1 151019...
