Page 1: User Manual
C5-DJ4S Audio Phone User Manual Please read this manual carefully before using the product you purchase, and keep it well for future use.We reserve the right to modify the specification in this manual at any time without notice. -
Page 2: Parts And Functions

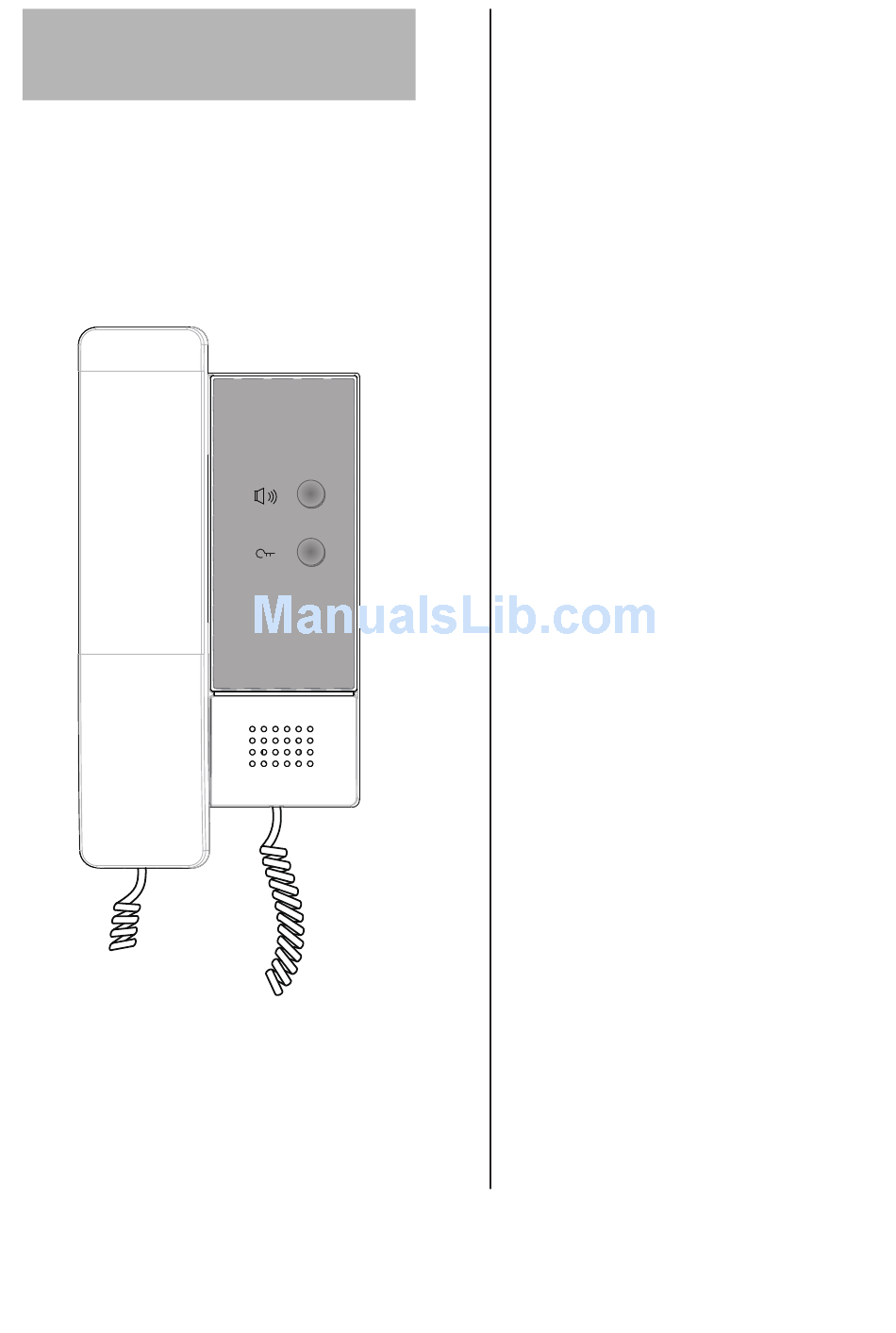

1.Parts and Functions 97.1 33.2 1. Handset 2. Call Button 3. Unlock Button 4. Speaker 5. Handset line 6. Unit Base Side View 2. Unit Mounting 1. Fix 2 screws to the wall at a appropriate height 2. Connect the system correctly 3. -
Page 3: Basic Operations
Guard Unit directly. 4. C5-DJ4S Address Configuration Every C5-DJ4S handset must have a unique address(room code) for the door station to identify. See the following steps to set the address: 1. Connect the system correctly and power on for the system(including the door station and the Audio handset) 2. - Page 4 5.Specification ● Power supply: DC 24V ● Power consumption: Standby 4W; Working status 10W ● Video signal: 1Vp-p, 75Ω, CCIR standard ● Wiring: CAT-5 cable ● Dimension: 187(H)X97(W)X33(D)mm C5-ENG-DJ4S-V1...
