Setup for Audio Recording

To record audio sources on your computer at optimum quality follow the instruc-
tions below:
1. Click Control Panel and make sure you are in Classic View.
2. Click Realtek HD Audio Manager (or right-click the notification area icon
select Sound Manager).
3. Click Microphone Effects (tab) in Microphone (tab), and then click to select
Noise Suppression (button), or adjust the Recording Volume level to around 60,
to obtain the optimum recording quality.
4. Click OK to close the control panel and save the settings.
Storage Devices, Mouse, & Audio
Configuration
and
It is recommended that
you set the Speaker
Configuration to Ste-
reo
through headphones in
order to maximize audio
quality.

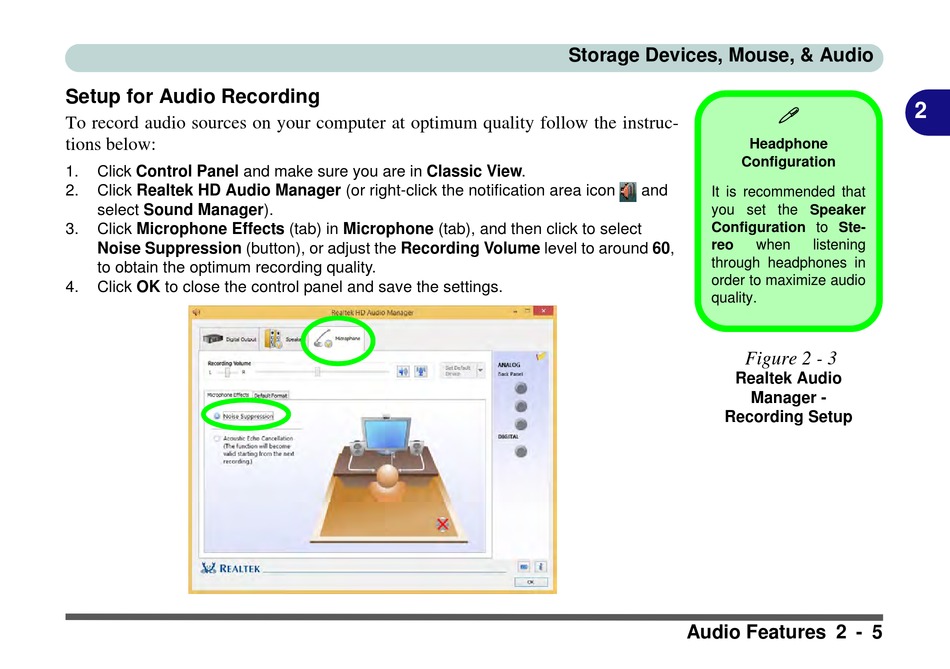

Figure 2 - 3
Realtek Audio
Recording Setup
Audio Features 2 - 5
2

Headphone
when listening
Manager -
