Quick Start Guide
1

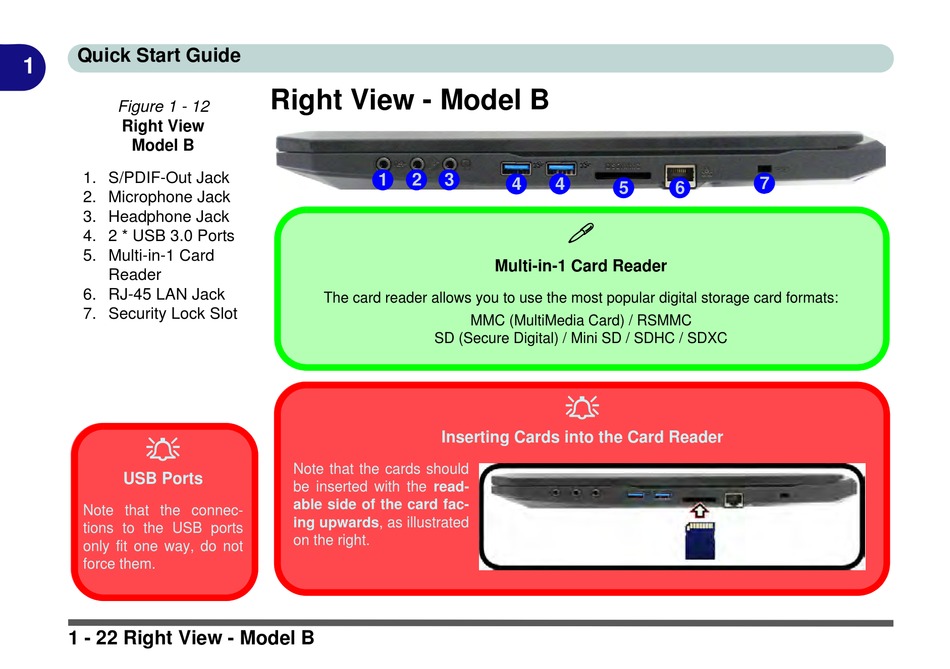

Figure 1 - 12
Right View
Model B
1. S/PDIF-Out Jack
2. Microphone Jack
3. Headphone Jack
4. 2 * USB 3.0 Ports
5. Multi-in-1 Card
Reader
6. RJ-45 LAN Jack
7. Security Lock Slot

USB Ports
Note that the connec-
tions to the USB ports
only fit one way, do not
force them.

1 - 22 Right View - Model B

Right View - Model B
1 2 3
The card reader allows you to use the most popular digital storage card formats:
SD (Secure Digital) / Mini SD / SDHC / SDXC
Inserting Cards into the Card Reader
Note that the cards should
be inserted with the read-
able side of the card fac-
ing upwards, as illustrated
on the right.
4 4
5

Multi-in-1 Card Reader
MMC (MultiMedia Card) / RSMMC

7
6
