Eluktronics PRO17SE User Manual page 57

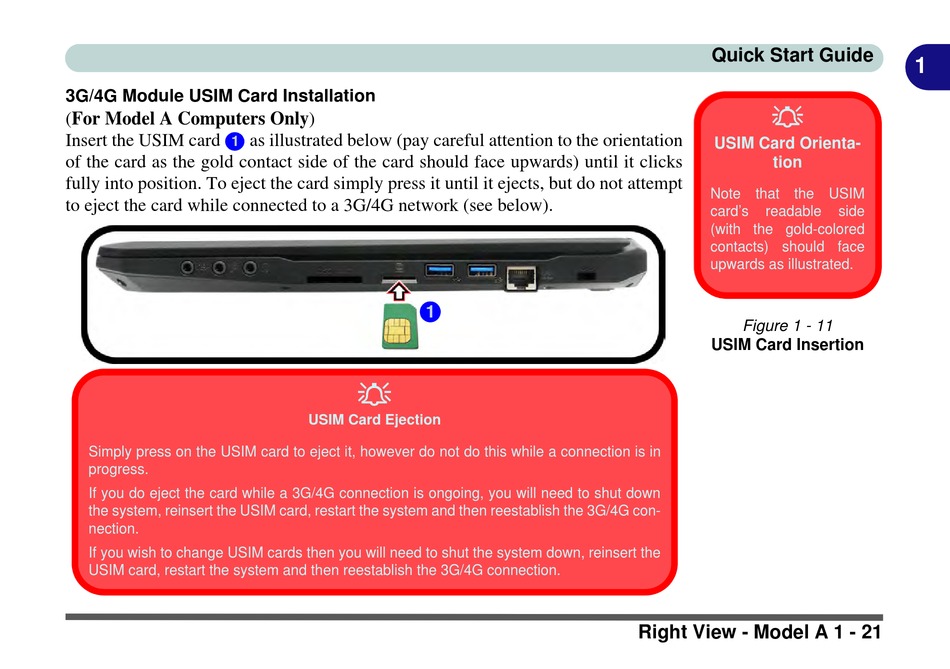

3G/4G Module USIM Card Installation
(For Model A Computers Only)
Insert the USIM card
1
of the card as the gold contact side of the card should face upwards) until it clicks
fully into position. To eject the card simply press it until it ejects, but do not attempt
to eject the card while connected to a 3G/4G network (see below).
Simply press on the USIM card to eject it, however do not do this while a connection is in
progress.
If you do eject the card while a 3G/4G connection is ongoing, you will need to shut down
the system, reinsert the USIM card, restart the system and then reestablish the 3G/4G con-
nection.
If you wish to change USIM cards then you will need to shut the system down, reinsert the
USIM card, restart the system and then reestablish the 3G/4G connection.
as illustrated below (pay careful attention to the orientation
1

USIM Card Ejection
Quick Start Guide

USIM Card Orienta-
tion
Note that the USIM
card's readable
(with the gold-colored
contacts) should face
upwards as illustrated.
Figure 1 - 11
USIM Card Insertion
Right View - Model A 1 - 21
1
side
