1.3 Dual Display Solution: HDMI/VGA/DVI-I Connection

NR-4200, NR-8200-RM provide HDMI and VGA port for local display. Users can
connect both of HDMI and VGA at the same time for video output.
NR-1100 Series, NR-2100 Series provide HDMI and DVI-I port for local display. Users
can connect both of HDMI and DVI-I at the same time for video output.

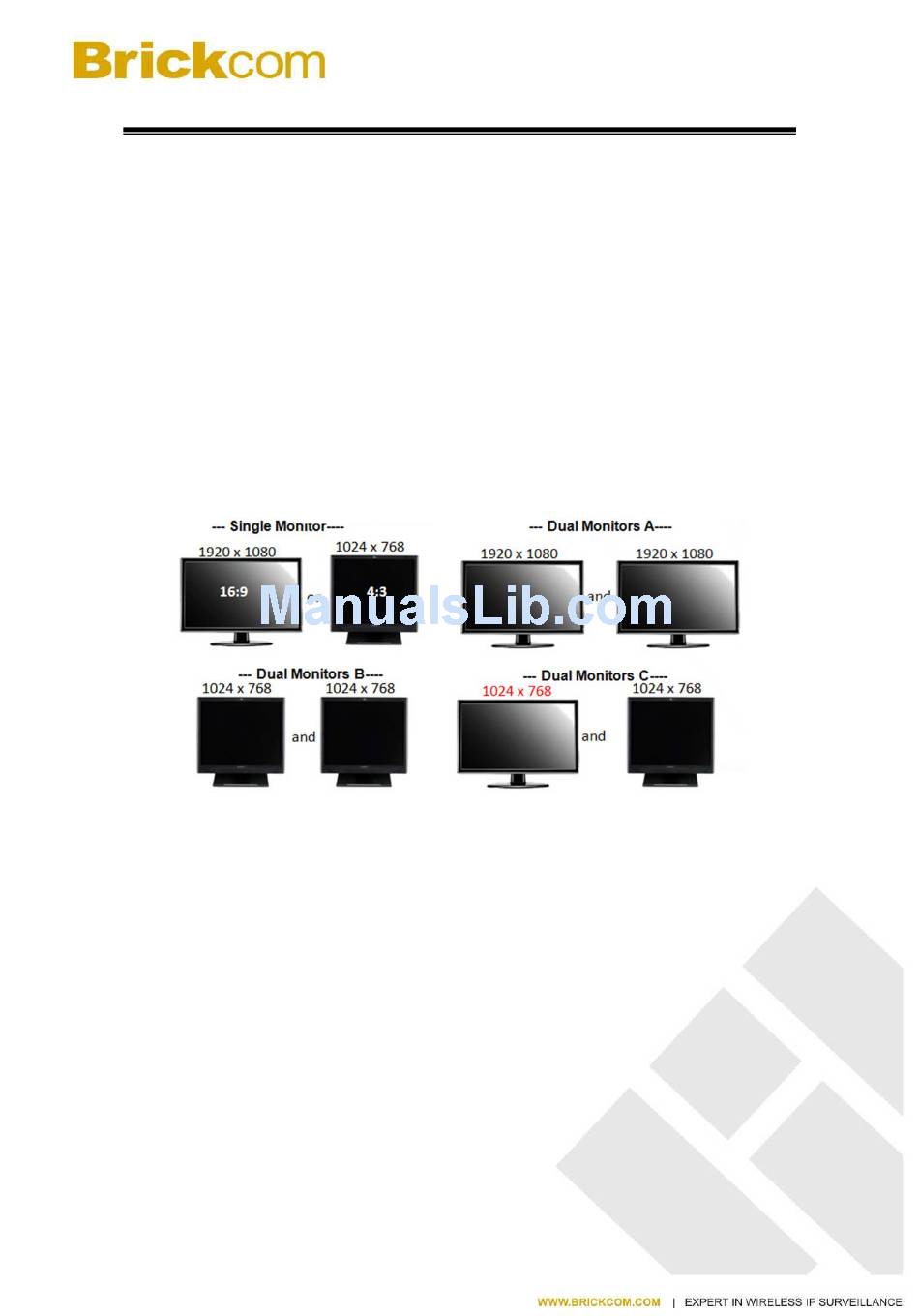

Scenario A: If both monitors are Full HD(1920x1080),those will be shown as Full HD.
Scenario B: If both monitors are VGA (1024x768), those will be shown all as VGA.
Scenario C: If one of monitors is 1920x1080 and another is 1024x768, both monitors
Are set as 1024x768
