1.2.3 NR-4200 Series

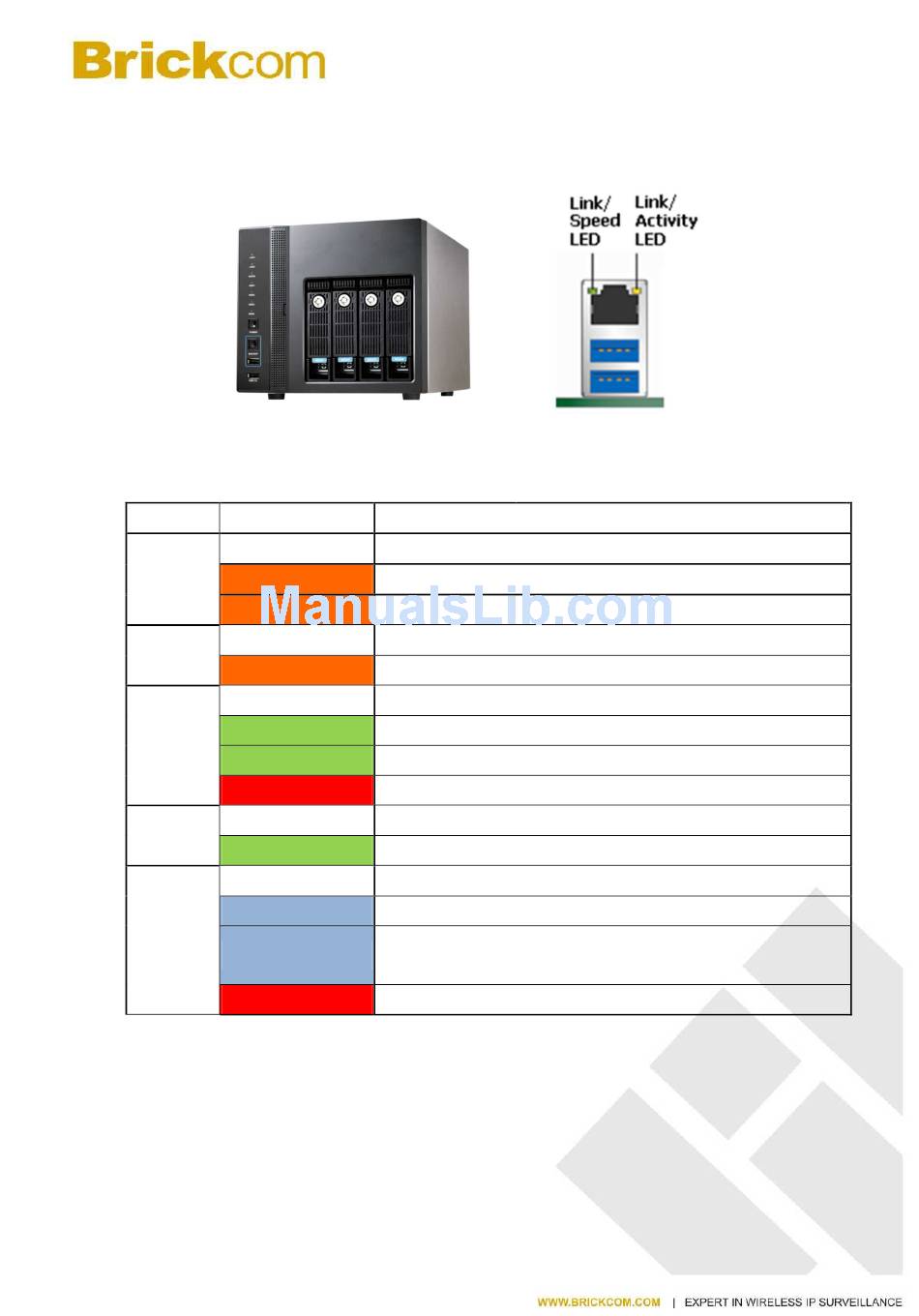

Figure 2-5. NR-4200 Series Front Panel & RJ-45 Port
LED on Front Panel
LED LED Color & Status
Off
LAN Orange
Orange blinking
Off
eSATA
Orange blinking
Off
HDD1
HDD2 Green
HDD3
Green blinking
HDD4
Red
Off
Power
Green
BACKUP Off
Blue
Blue blinking
Red
LAN Link is not established
LAN Link is established
LAN is being accessed
No data transmission
The eSATA device is being accessed
Hard disk drive device is not established
Hard disk drive is ready to be accessed
Hard disk drive data is being accessed
Hard disk drive failure and need to be removed
Power Off
Power On
USB device is not detected
USB device is ready
NVR data is being copied to the USB device
(Blinking with 1Hz)
Backup error occurs
