1.2.4 NR-8200-RM Series

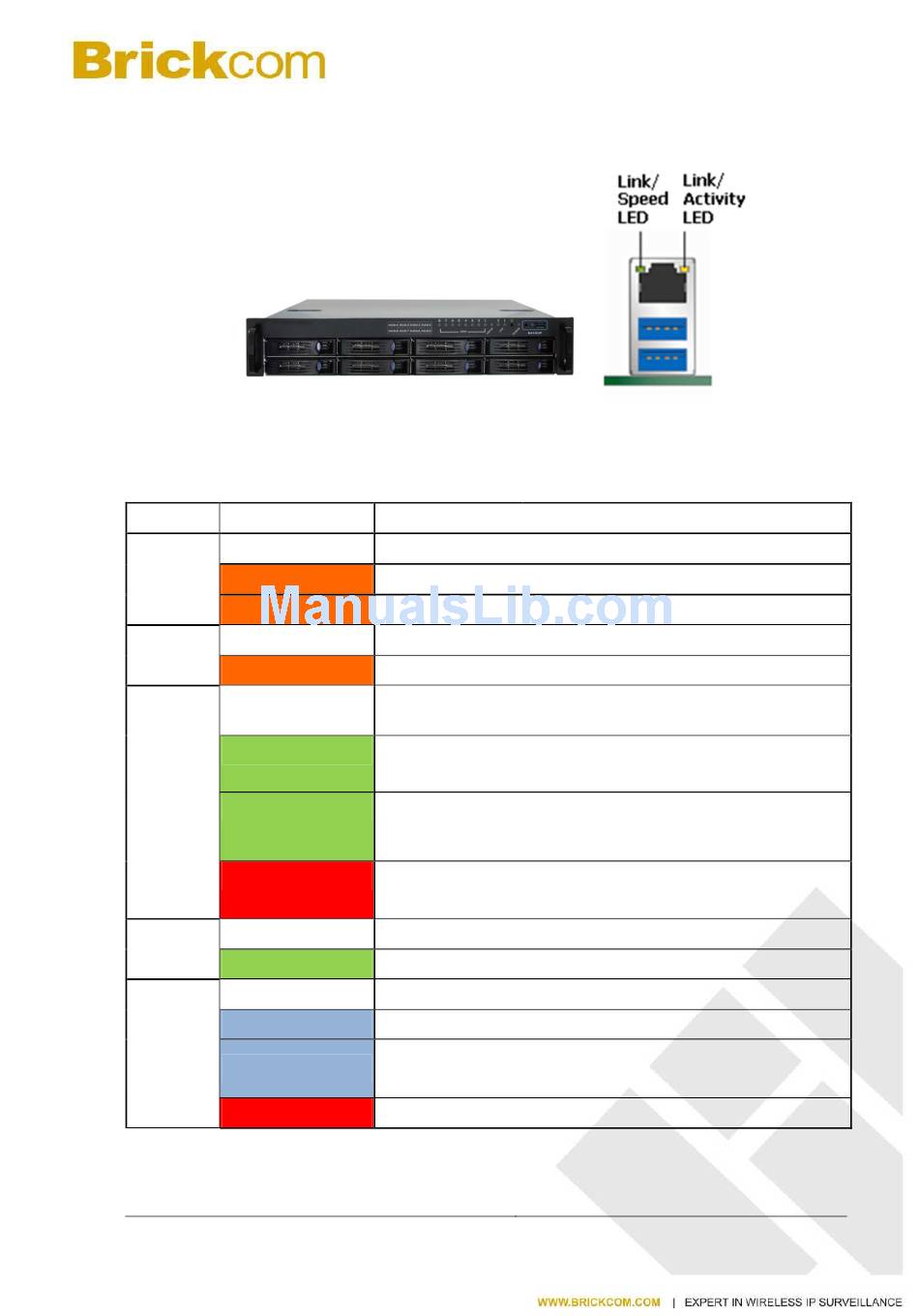

Figure 2-8. Front View of NR-8200-RM Series & RJ-45 Port
LED on Front Panel
LED LED Color & Status
Off
LAN Orange
Orange blinking
Off
eSATA
Orange blinking
HDD1 Off
HDD2
Green
HDD3
HDD4
Green blinking
HDD5
HDD6
HDD7
Red
HDD8
Off
Power
Green
BACKUP Off
Blue
Blue blinking
Red
LAN Link is not established
LAN Link is established
LAN is being accessed
No data transmission
The eSATA device is being accessed
Hard disk drive device is not established
Hard disk drive is ready to be accessed
Hard disk drive data is being accessed
Hard disk drive failure and need to be removed
Power Off
Power On
USB device is not detected
USB device is ready
NVR data is being copied to the USB device
(Blinking with 1Hz)
Backup error occurs
