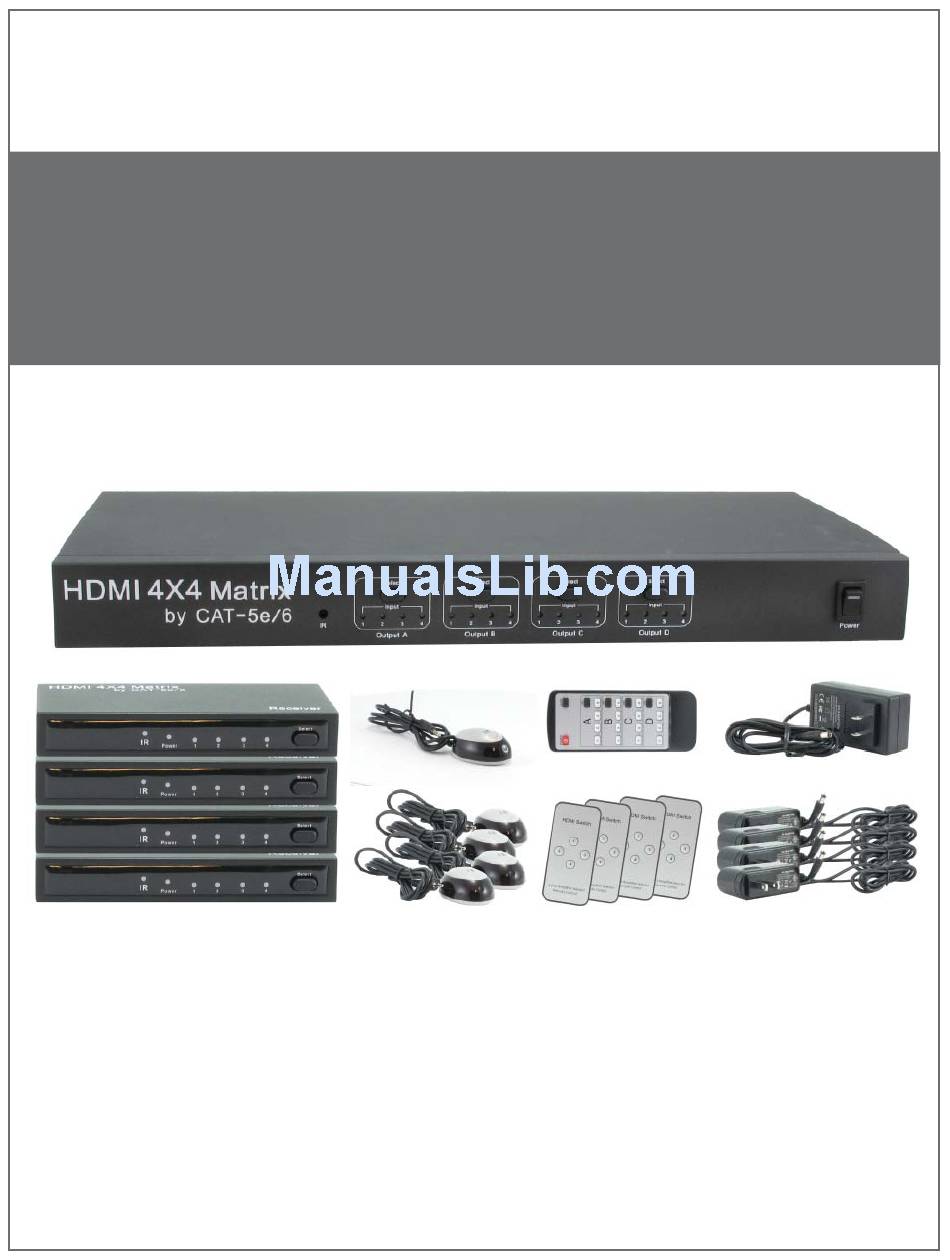

- Page 1 ANI-44C5HD Super HDMI Matrix 4x4 over HDBaseT INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
USER MANUAL Table of Contents 1.0 Introduction................1 2.0 Specifications...............2 3.0 Package Contents..............2 4.0 Panel Descriptions...............3 5.0 Connection and Operation..........5... -
Page 3: Introduction
Super HDMI Matrix 4×4 over HDBaseT Super HDMI Matrix 4x4 over HDBaseT Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1.0 INTRODUCTION This Super HDMI Matrix offers unprecedented flexibility and convenience by routing high definition audio/video from any of four HDMI video sources to any of... -
Page 4: Specifications
Super HDMI Matrix 4×4 over HDBaseT 2.0 SPECIFICATIONS Signal Inputs/Output HDMI Connector type A 19 pin female Input DDC Signal 5 volts p-p (TTL) Control Port RS-232 Female, Mini-Stereo Output Signal HDMI output, HDBaseT output Operating Frequency Vertical Frequency Range 50/60Hz Video Amplifier Bandwidth 2.25Gbps/225MHz... -
Page 5: Panel Descriptions
Super HDMI Matrix 4×4 over HDBaseT 6) User’s Manual x1 Packaging of Accessories 7) Receivers x4 8) Remote Control for Receivers x4 9) External infrared receiver (IR) x4 10) 5V DC @2A Power Supply x4 4.0 PANEL DESCRIPTIONS Please study the panel drawings below and become familiar with the structure. Main Unit ①... - Page 6 Super HDMI Matrix 4×4 over HDBaseT Connect 4 receivers to 4 HDBaseT output ports. ⑦ IE(Infrared emitter) and HDMI Input ports Connect 4 Infrared emitters to 4 IE ports. Connect 4 HDMI source devices to 4 HDMI Input ports. ⑧ IR EXT Connect external IR receiver to this port.
-
Page 7: Connection And Operation
Super HDMI Matrix 4×4 over HDBaseT cable. ⑧ HDMI output port Connect this port to HDTV. ⑨ IR EXT Connect this port to the external IR receiver. ⑩ RS232 Connect this port to PC, and over the “super terminal” of PC, you can control and switch the Receiver. - Page 8 Super HDMI Matrix 4×4 over HDBaseT Four buttons on the main unit are used to select source devices circularly for inputs A, B, C, and D. Once you press the button, it will select next available source device. 3) Selecting source devices by IR remote 1.
- Page 9 Super HDMI Matrix 4×4 over HDBaseT For example: If you want to turn off output B, then you can input CB, and finish with “Enter”. C. Turning off the Switch Splitter: OFF + “Enter” D. Turning on the Switch Splitter: ON + “Enter”...
- Page 10 S u per H D MI Mat r ix 4 × 4 o v er H D B as eT Turn off the output of Sink D 5.3 CONECTION DIAGRAM P/N3030 END OF DOCUMENT...
