IMPORTANT
Never weld parts to the gate or posts when the operator circuit board is powered. Doing so may
damage the board beyond repair.

1.2 - Actuator Installation

1/2" x 3 1/2" Hex Bolt
Do not over tighten Nut and Bolt

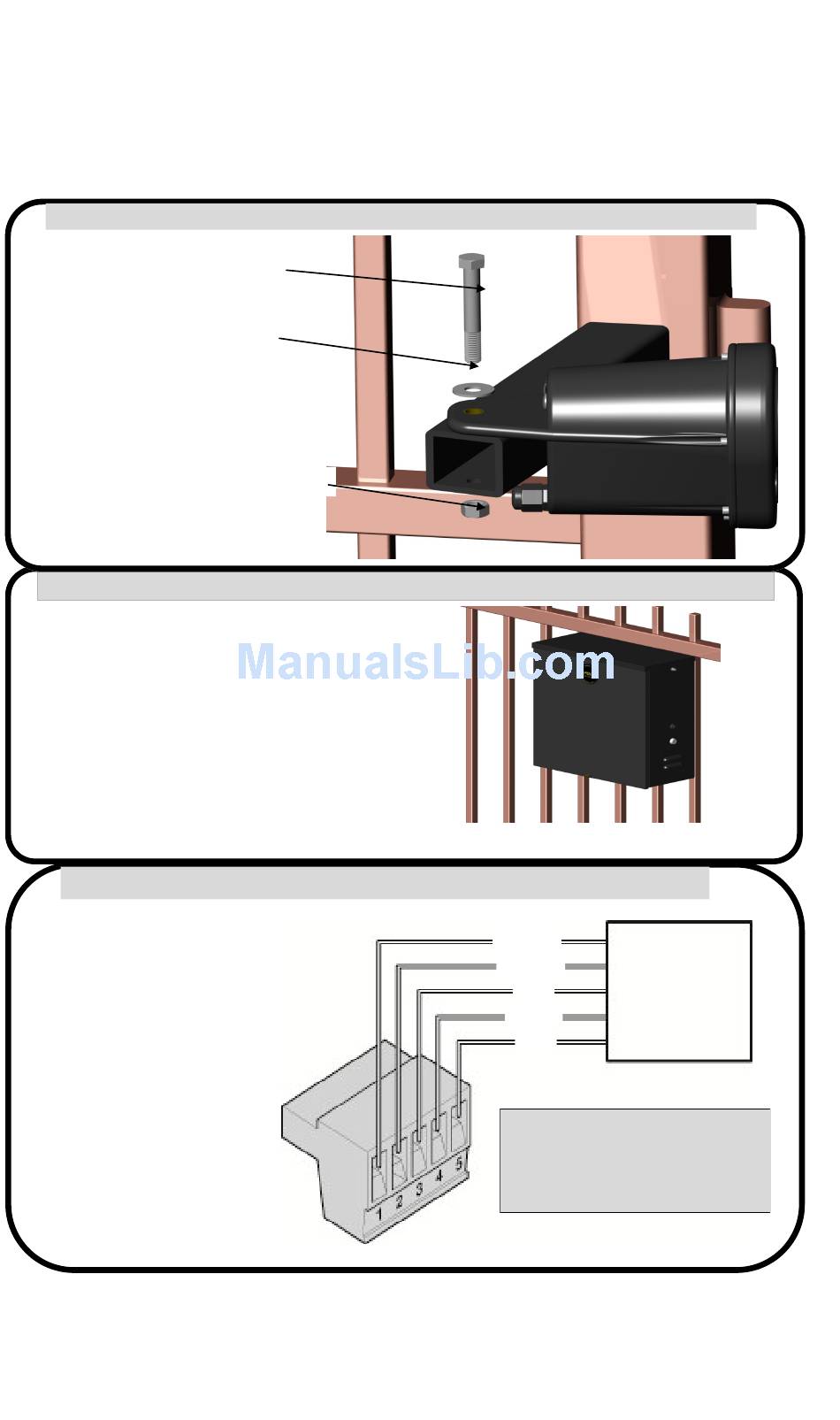

Figure 3: Actuator Installation

1.3 - Control Box Installation

Mount the control box within 4 feet of the pivot arm. Do not
mount the control box where the person using the push
button on side of the box can come in contact with the
gate. Use mounting hardware capable of supporting the
weight of the control box with the battery installed.
Mounting holes are not provided since mounting surfaces will
vary.
Set battery inside of control box with terminals toward the
front (Do not use any battery with side terminals).

1.4 - Apollo 816-1K limit switch and smart sensor wiring

Connect the Apollo 816-1K
actuator cable to the 5-pin
connector as shown in Figure
5. These connections enable
the Apollo 816-1K limit switch
and smart sensor inputs into
the gate controller.
Note: Connector is keyed.
Install connector in keyed
orientation
8
1/2" Washer
1/2" Lock Nut
Figure 5 - APOLLO 816-1K LIMIT SWITCH AND SMART SENSOR WIRING
Figure 4: Box Installation
blue
yellow
green
orange
white
white: close limit switch
orange: open limit switch
green: limit switch and motor encoder common
yellow: motor encoder signal
blue: motor encoder power (+12VDC)
Apollo 816-1K
operator
