10 - BOARD DIAGRAM

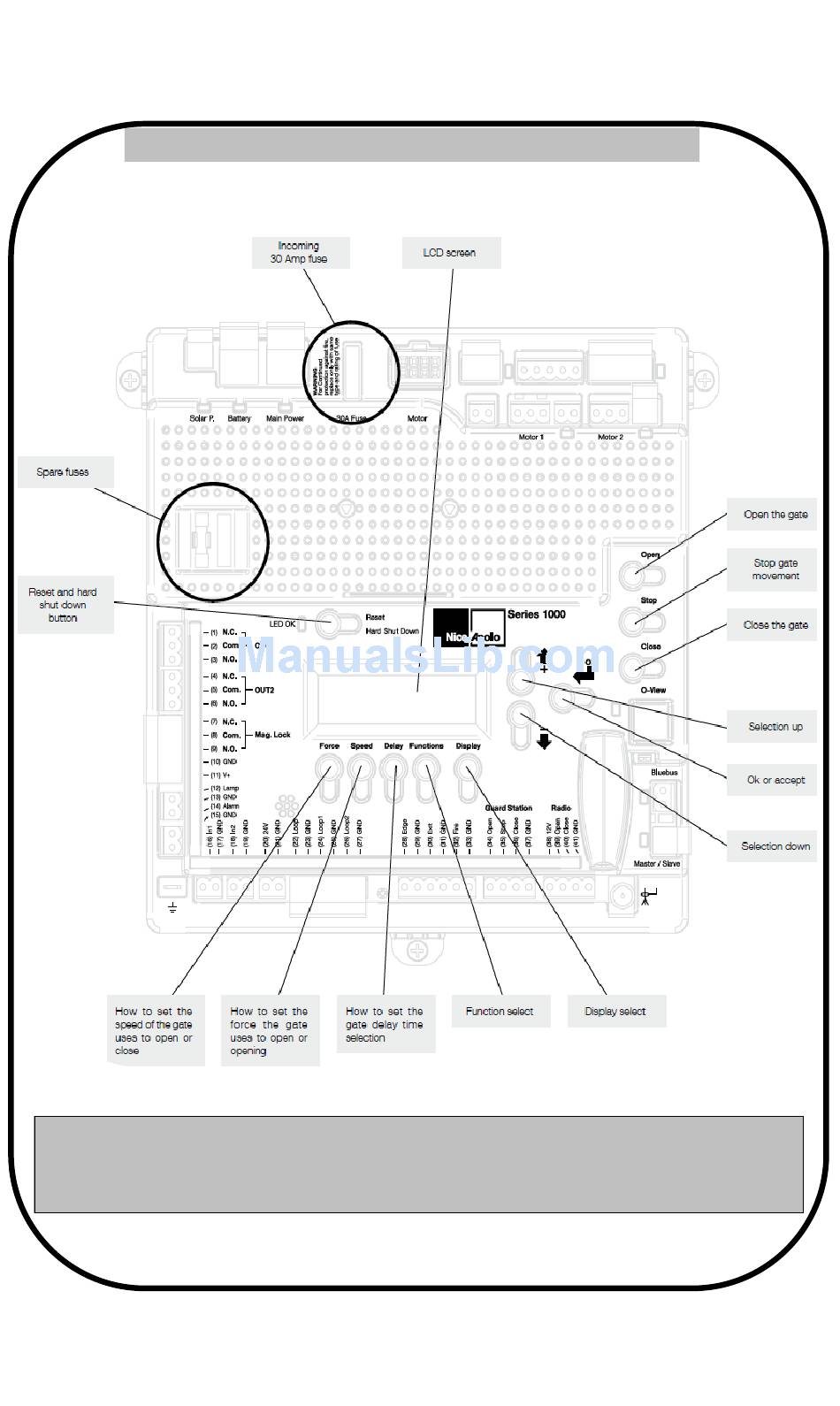

Figure 27 - GENERAL BOARD OVERVIEW
THE PROGRAMMING BUTTONS INDICATED IN THE ABOVE REFERENCE SHOULD BE USED ONLY
AFTER UNDERSTANDING THE MANUAL AND ITS RELATION TO THE PROGRAMMING SEQUENCES
SHOWN ON THE FOLLOWING PAGES. CARE SHOULD BE TAKEN WHENEVER CHANGES ARE IMPLE-
MENTED TO ENSURE PROPER FUNCTIONALITY AND SAFETY.
21
