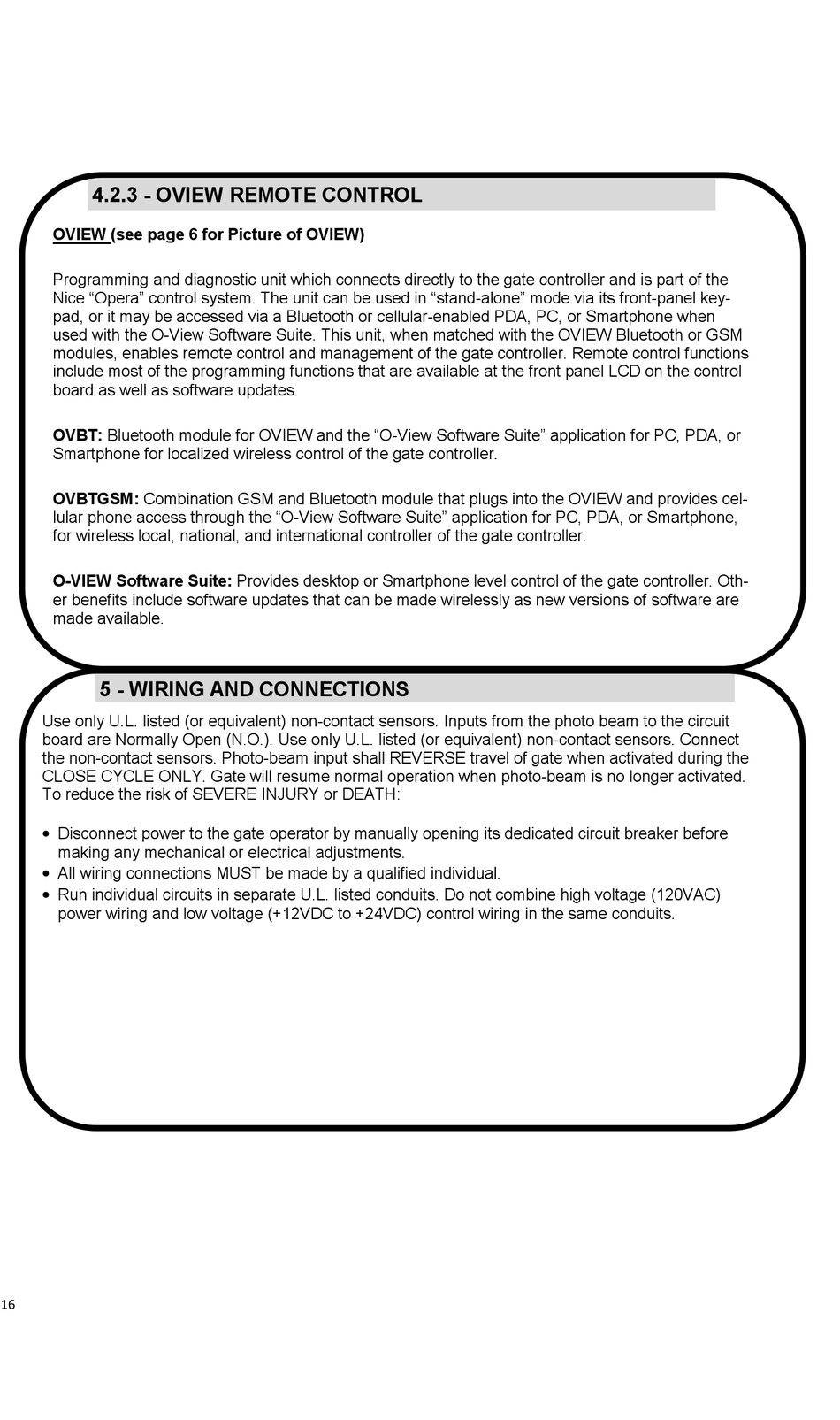

4.2.3 - OVIEW REMOTE CONTROL

OVIEW (see page 6 for Picture of OVIEW)
Programming and diagnostic unit which connects directly to the gate controller and is part of the
Nice "Opera" control system. The unit can be used in "stand-alone" mode via its front-panel key-
pad, or it may be accessed via a Bluetooth or cellular-enabled PDA, PC, or Smartphone when
used with the O-View Software Suite. This unit, when matched with the OVIEW Bluetooth or GSM
modules, enables remote control and management of the gate controller. Remote control functions
include most of the programming functions that are available at the front panel LCD on the control
board as well as software updates.
OVBT: Bluetooth module for OVIEW and the "O-View Software Suite" application for PC, PDA, or
Smartphone for localized wireless control of the gate controller.
OVBTGSM: Combination GSM and Bluetooth module that plugs into the OVIEW and provides cel-
lular phone access through the "O-View Software Suite" application for PC, PDA, or Smartphone,
for wireless local, national, and international controller of the gate controller.
O-VIEW Software Suite: Provides desktop or Smartphone level control of the gate controller. Oth-
er benefits include software updates that can be made wirelessly as new versions of software are
made available.

5 - WIRING AND CONNECTIONS

Use only U.L. listed (or equivalent) non-contact sensors. Inputs from the photo beam to the circuit
board are Normally Open (N.O.). Use only U.L. listed (or equivalent) non-contact sensors. Connect
the non-contact sensors. Photo-beam input shall REVERSE travel of gate when activated during the
CLOSE CYCLE ONLY. Gate will resume normal operation when photo-beam is no longer activated.
To reduce the risk of SEVERE INJURY or DEATH:

Disconnect power to the gate operator by manually opening its dedicated circuit breaker before
making any mechanical or electrical adjustments.

All wiring connections MUST be made by a qualified individual.

Run individual circuits in separate U.L. listed conduits. Do not combine high voltage (120VAC)
power wiring and low voltage (+12VDC to +24VDC) control wiring in the same conduits.
16
