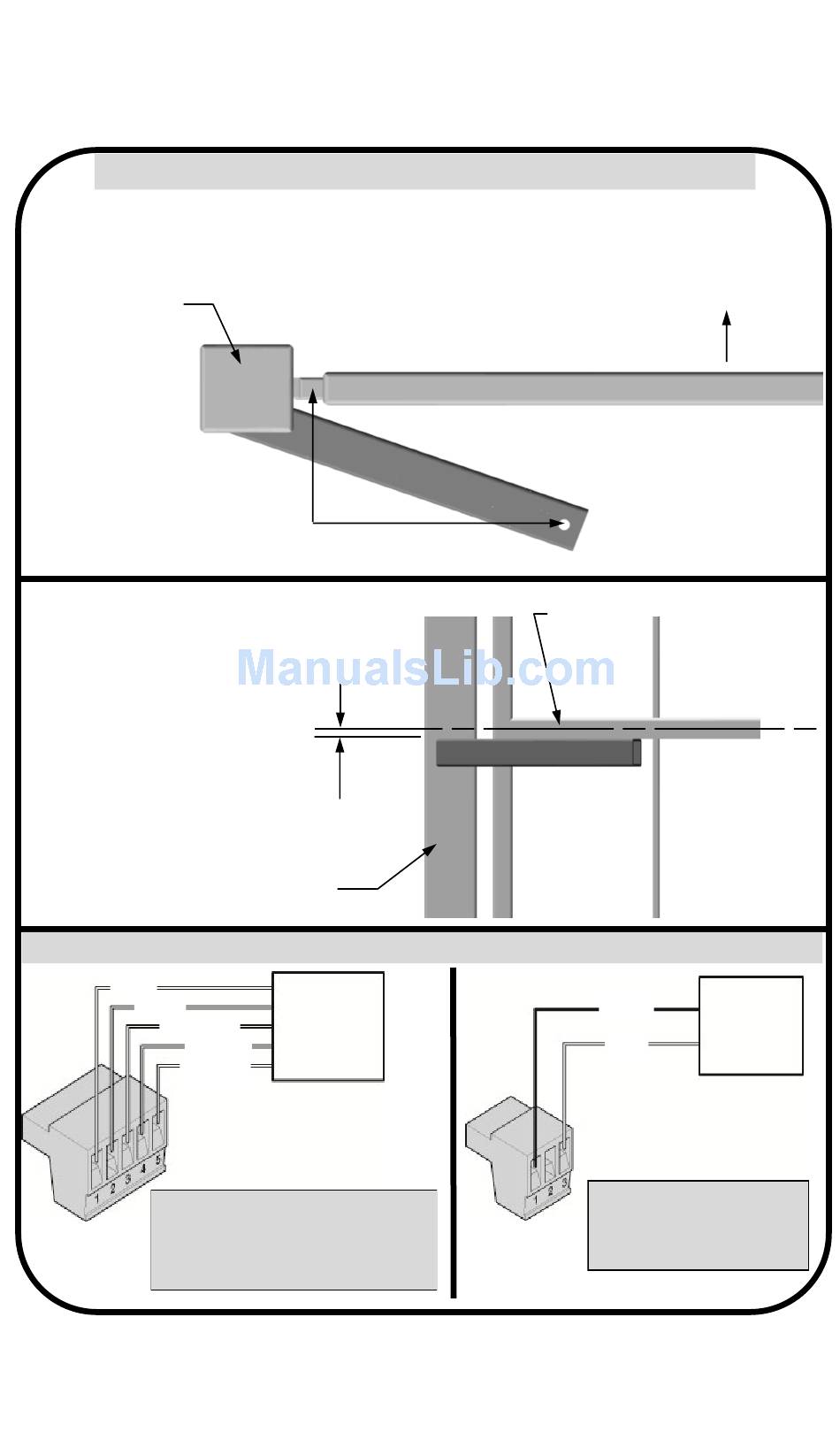

2.1 - PIVOT ARM(s) INSTALLATION
Location of pivot point
Hinge post
Both measurements are
taken from the center of the
hinge.
Vertical position of
pivot arm (s)
Pivot arm must be
level
Figure 12: Pivot Arm Front View
2.2 - REWIRING ACTUATOR TO PUSH OPEN
blue
yellow
green
white:
orange:
green:
yellow:
blue:
PUSH TO OPEN INSTALLATION
6"
1/2"
Hinge
Apollo
816-1K
operator
white
orange
Figure 13: Limit Switch and Sensor Wire
close limit switch
open limit switch
limit switch and motor encoder common
motor encoder signal
motor encoder power (+12VDC)
Gate (closed)
11"
Center Line of attachment
point for gate bracket
Direction of opening
Top View
Figure 11: Pivot Arm Top View
Front View
black
Red and Black
Red
motor power
Note - If gate moves in opposite
direction from what is expected,
reverse the motor power lead wir-
ing. (Red to pin 3, Black to pin 1)
Figure 14: Motor Wiring
Apollo
816-1K
11
