Integrated Refrigeration

Sub-Zero Integrated Refrigeration
The importance of the installation of the Sub-Zero
integrated unit cannot be overemphasized. Installation
should be done by a qualified installer.
Before you begin the installation process, it is recom-
mended that you read this entire installation guide. There
are key details that you should take special care to
observe during the installation. By reading these instruc-
tions carefully, you will make the installation process
easier, problem-free and most importantly, safe.
Any questions or problems regarding the installation
should be directed to your authorized Sub-Zero dealer or
Sub-Zero customer care at 800-222-7820. You may also
check the contact & support section of our website,
subzero.com.

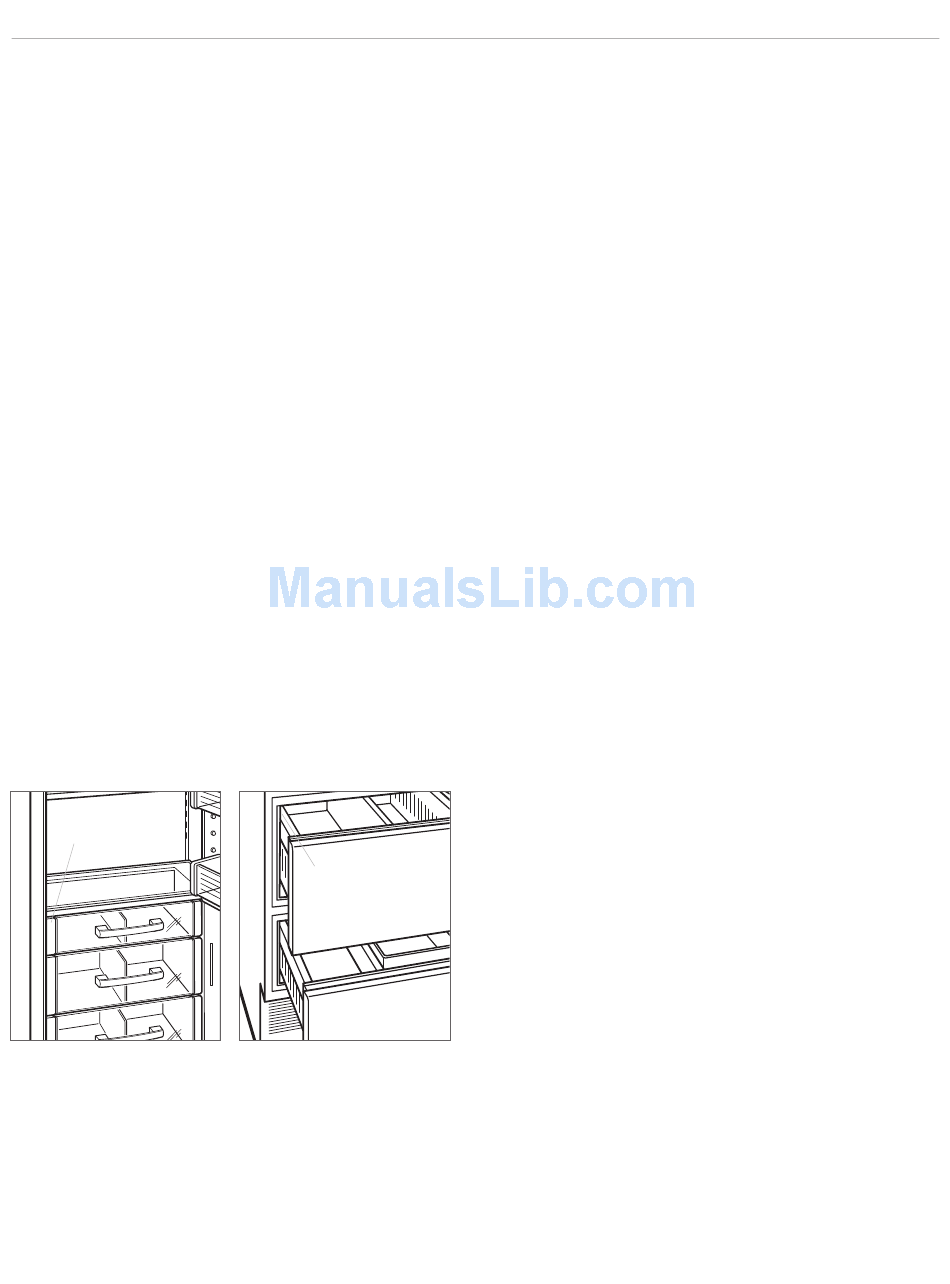

Important product information, including the model and
serial number of your unit are listed on the product rating
plate. For column models, the rating plate is located inside
the top drawer near the drawer guide opposite the hinge.
For tall and drawer models, the rating plate is located
inside the cabinet, to the left of the upper drawer. Refer to
the illustrations below.
RATING PLATE
Column models.
RATING PLATE
Tall and drawer models.
Before You Start
Make sure the opening dimensions, door and drawer
clearances, electrical service and plumbing are correct for
the model you are about to install. Refer to specifications
on the following pages.
IMPORTANT NOTE: The inside edges of the rough
opening, as well as the sides and a portion of the
backside of the decorative panels will need to be finished,
as they will be exposed when the doors are open.
TOOLS AND MATERIALS REQUIRED
• Appliance dolly able to support 500 lbs
adequate manpower to handle the weight of the unit.
• Phillips and slotted screwdrivers.
• Allen, standard and crescent wrenches.
• Various sized pliers.
5
• / " hex bolt nut driver.
16
• Cordless drill and assorted drill bits.
• Level—2' and 4'
(.6 m)
1
• 4' of / " copper, braided stainless steel or
(1.2 m)
4
PEX tubing and saddle valve for water line (do not use
self-piercing valves).
• Tubing cutter.
• Masonite, plywood, pressed fiberboard, cardboard or
other suitable material to protect finished flooring.
• Appropriate materials to cover and protect the home
and furnishings during installation.
subzero.com/specs
(227 kg)
recommended.
(1.2 m)
3
and
