1) Remove the
10
screws from the top cover. Remove
the top cover.
2) Loosen the screws on both cable clamps.
3) Set or remove the strain relief inserts corresponding
to the diameters of the cables.
4) Install the coaxial cable through the top cover cable
clamp. Install the control cable through the bottom
cover cable clamp.
5) After connecting the coaxial cable and control cables,
perform preset tuning setting.
• For the AT -
130E, also perform emergency tuning setting.
6) After internal adjustments, tighten the cable clamp
screws.
Strain relief
Coaxial
cable
Control
cable
Cable
clamp
2

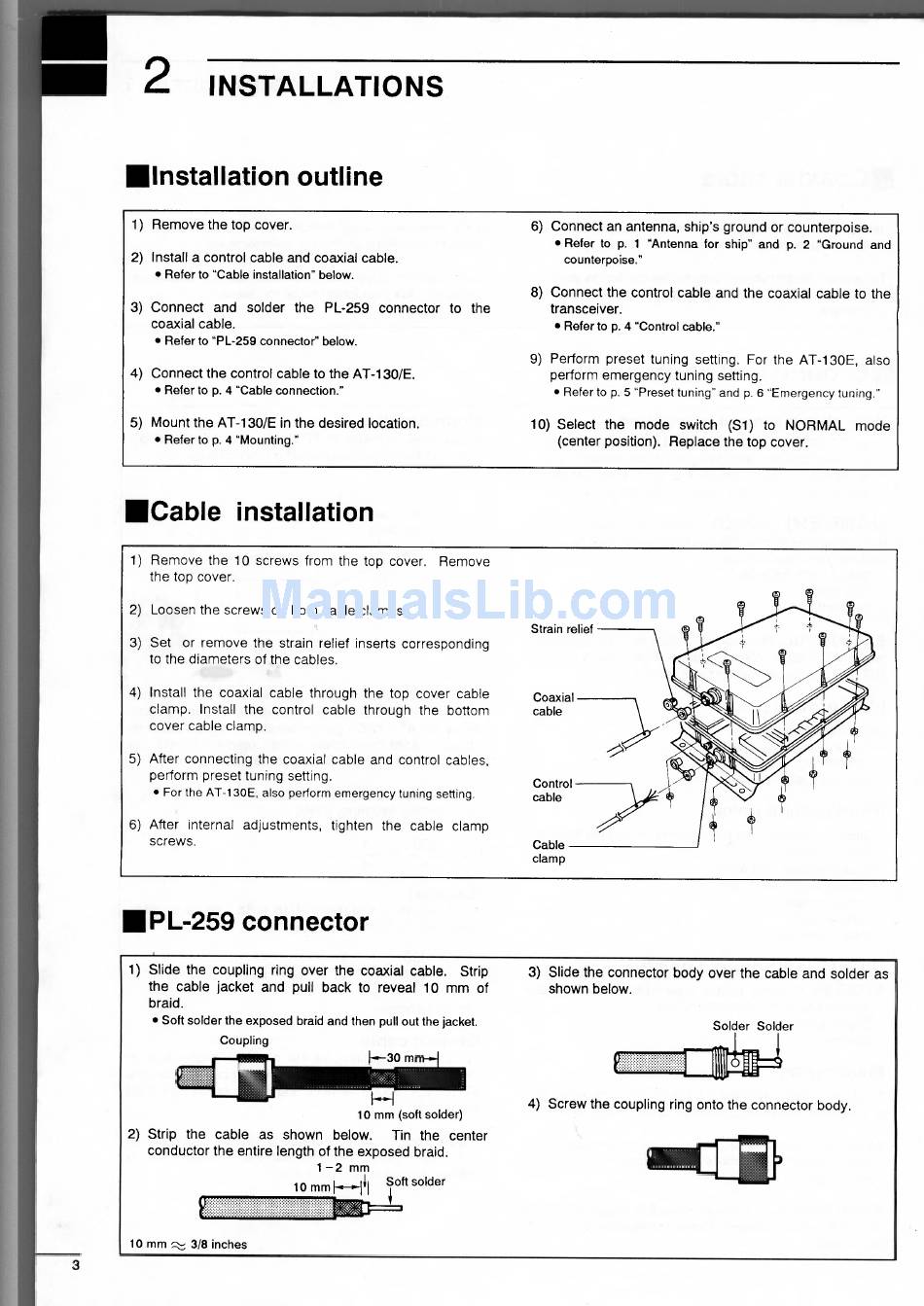

INSTALLATIONS
Installation outline
1) Remove the top cover.
6) Connect an antenna, ship's ground or counterpoise.
• Refer to p. 1 "Antenna for ship" and p. 2 "Ground and
2) Install a control cable and coaxial cable.
counterpoise."
• Refer to "Cable installation" below.
8) Connect the control cable and the coaxial cable to the
3) Connect and solder the PL-259 connector to the
transceiver.
coaxial cable.
•
Refer to p.
4 "Control cable."
• Refer to "PL-259 connector" below.
9) Perform preset tuning setting. For the
AT-130E,
also
4) Connect the control cable to the AT
-
130/E.
perform emergency tuning setting.
• Refer to p.
4 "Cable connection."
• Refer to p. 5 "Preset tuning" and p. 6 "Emergency tuning."
5) Mount the AT-130/E in the desired location.
10) Select the mode switch (S1) to NORMAL mode
• Refer to p.
4
"Mounting."
(center position). Replace the top cover.
Cable installation
PL-259 connector
1) Slide the coupling ring over the coaxial cable. Strip
the cable jacket and pull back to reveal 10 mm of
braid.
• Soft solder the exposed braid and then pull out the jacket.
Coupling
10 mm (soft solder)
2) Strip the cable as shown below. Tin the center
conductor the entire length of the exposed braid.
1 —2 mm
10
Soft solder
10 mm
3/8 inches
3) Slide the connector body over the cable and solder as
shown below.
Solder Solder
4) Screw the coupling ring onto the connector body.
