4

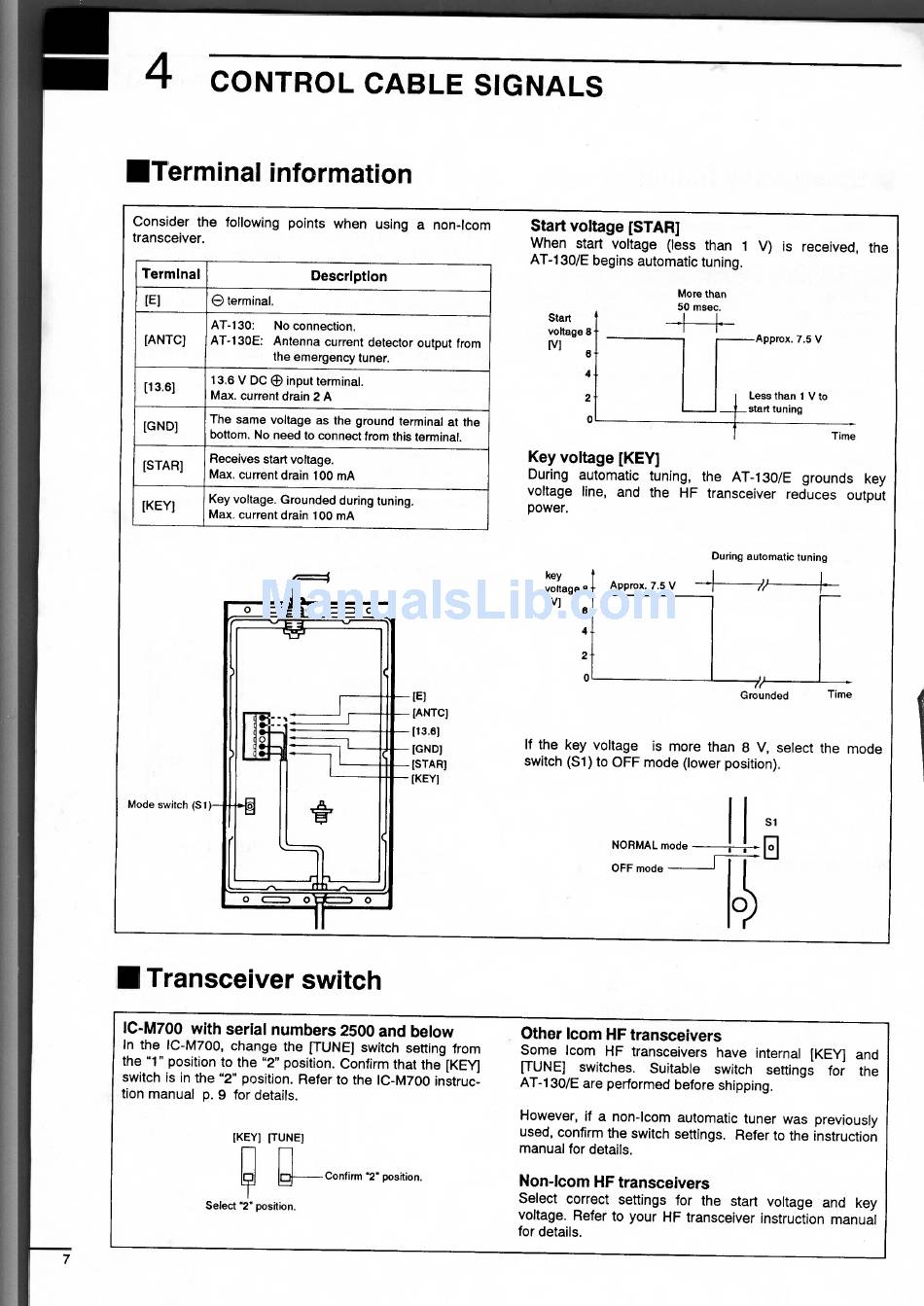

CONTROL CABLE SIGNALS
'Terminal information
Transceiver switch
7
[E]
[ANTC]
[13.8]
[GND]
[STAR]
[KEY]
Mode switch (S1)
Time
Grounded
Consider the following points when using a non-Icom
transceiver.
Terminal
Description
[E]
e
terminal.
[ANTC]
AT-130: No connection.
AT-130E: Antenna current detector output from
the emergency tuner.
[13.6]
13.6 V DC ED input terminal.
Max. current drain 2 A
[GND]
The same voltage as the ground terminal at the
bottom. No need to connect from this terminal.
[STAR]
Receives start voltage.
Max. current drain 100 mA
[KEY]
Key voltage. Grounded during tuning.
Max. current drain 100 mA
Start voltage [STAR]
When start voltage (less than 1 V) is received, the
AT-130/E begins automatic tuning.
More than
50 mse .
Start
voltage 8 -
IV)
-
4 -
Approx. 7.5 V
Less than 1 V to
start tuning
2 -
0
Time
Key voltage [KEY]
During automatic tuning, the AT-130/E grounds key
voltage line, and the HF transceiver reduces output
power.
During automatic tuning
Approx. 7.5 V
2 -
0
If the key voltage is more than 8 V, select the mode
switch (S1) to OFF mode (lower position).
I
S1
key
voltage 8
-
NI
e
-
4 -
NORMAL mode
OFF mode
/ I
Other Icom HF transceivers
Some Icom HF transceivers have internal [KEY] and
[TUNE] switches. Suitable switch settings for the
AT-130/E are performed before shipping.
However, if a non-Icom automatic tuner was previously
used, confirm the switch settings. Refer to the instruction
manual for details.
Non
- Icom HF transceivers
Select correct settings for the start voltage and key
voltage. Refer to your HF transceiver instruction manual
for details.
IC-M700 with serial numbers 2500 and below
In the IC-M700, change the [TUNE] switch setting from
the "1" position to the "2" position. Confirm that the [KEY]
switch is in the "2" position. Refer to the IC-M700 instruc-
tion manual p. 9 for details.
[KEY] [TUNE]
Confirm "2" position.
Select "2" position.
