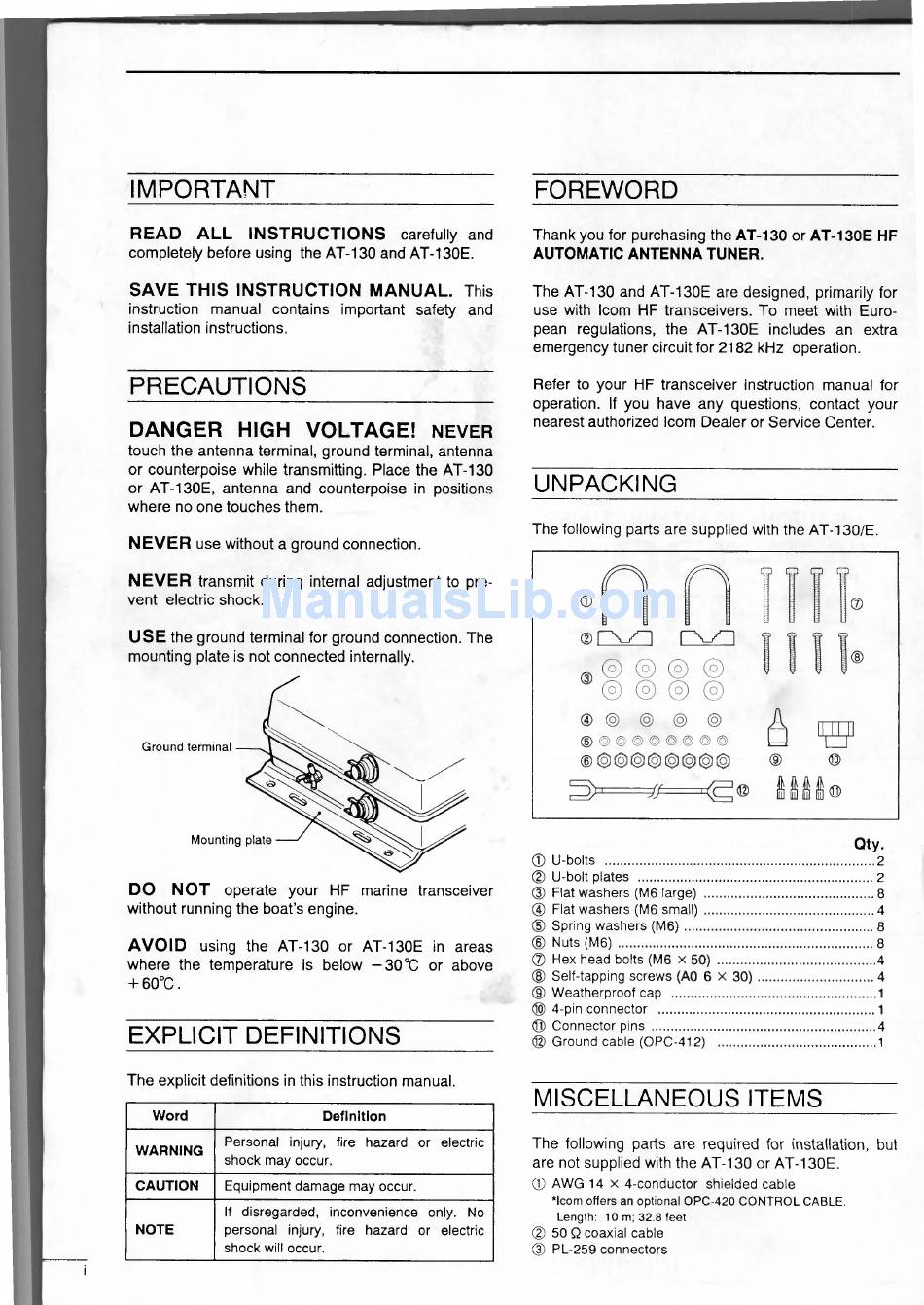

Precautions; Explicit Definitions; Foreword; Unpacking - Icom AT-130 Instruction Manual

Ground terminal
Mounting plate
@ n
n
1MC )
3@@@
tltld
1y1I
©
((
:©
AAAA©
I®
© @ @ @
0
s 0 0 0 © ©
©00000000
IMPORTANT
READ ALL INSTRUCTIONS
carefully and
completely before using the AT
-
130 and AT
-
130E.
SAVE THIS INSTRUCTION MANUAL.
This
instruction manual contains important safety and
installation instructions.
PRECAUTIONS
DANGER HIGH VOLTAGE!
NEVER
touch the antenna terminal, ground terminal, antenna
or counterpoise while transmitting. Place the AT-130
or AT-130E, antenna and counterpoise in positions
where no one touches them.
NEVER
use without a ground connection.
NEVER
transmit during internal adjustment to pre-
vent electric shock.
USE
the ground terminal for ground connection. The
mounting plate is not connected internally.
DO NOT
operate your
HF
marine transceiver
without running the boat's engine.
AVOID
using the AT-130 or AT-130E in areas
where the temperature is below —30 °C or above
+ 60° C .
EXPLICIT DEFINITIONS
The explicit definitions in this instruction manual.
Word Definition
WARNING
Personal injury, fire hazard or electric
shock may occur.
CAUTION
Equipment damage may occur.
NOTE
If disregarded, inconvenience only. No
personal injury, fire hazard or electric
shock will occur.
FOREWORD
Thank you for purchasing the AT-130 or AT-130E HF
AUTOMATIC ANTENNA TUNER.
The AT-130 and AT-130E are designed, primarily for
use with Icom HF transceivers. To meet with Euro-
pean regulations, the AT-130E includes an extra
emergency tuner circuit for 2182 kHz operation.
Refer to your HF transceiver instruction manual for
operation. If you have any questions, contact your
nearest authorized Icom Dealer or Service Center.
UNPACKING
The following parts are supplied with the AT
-
130/E.
Qty.
U-bolts
2
O U-bolt plates
2
C) Flat washers (M6 large)
8
® Flat washers (M6 small) 4
© Spring washers (M6)
8
© Nuts (M6)
8
• Hex head bolts (M6
x
50) 4
® Self-tapping screws (AO 6
x
30)
4
C) Weatherproof cap
1
© 4-pin connector
1
© Connector pins
4
• Ground cable (OPC-412)
1
MISCELLANEOUS ITEMS
The following parts are required for installation, but
are not supplied with the AT-130 or AT-130E.
C) AWG 14
x
4-conductor shielded
cable
*Icom offers an optional OPC-420 CONTROL CABLE.
Length: 10 m; 32.8 feet
© 50
Q coaxial cable
© PL-259 connectors
