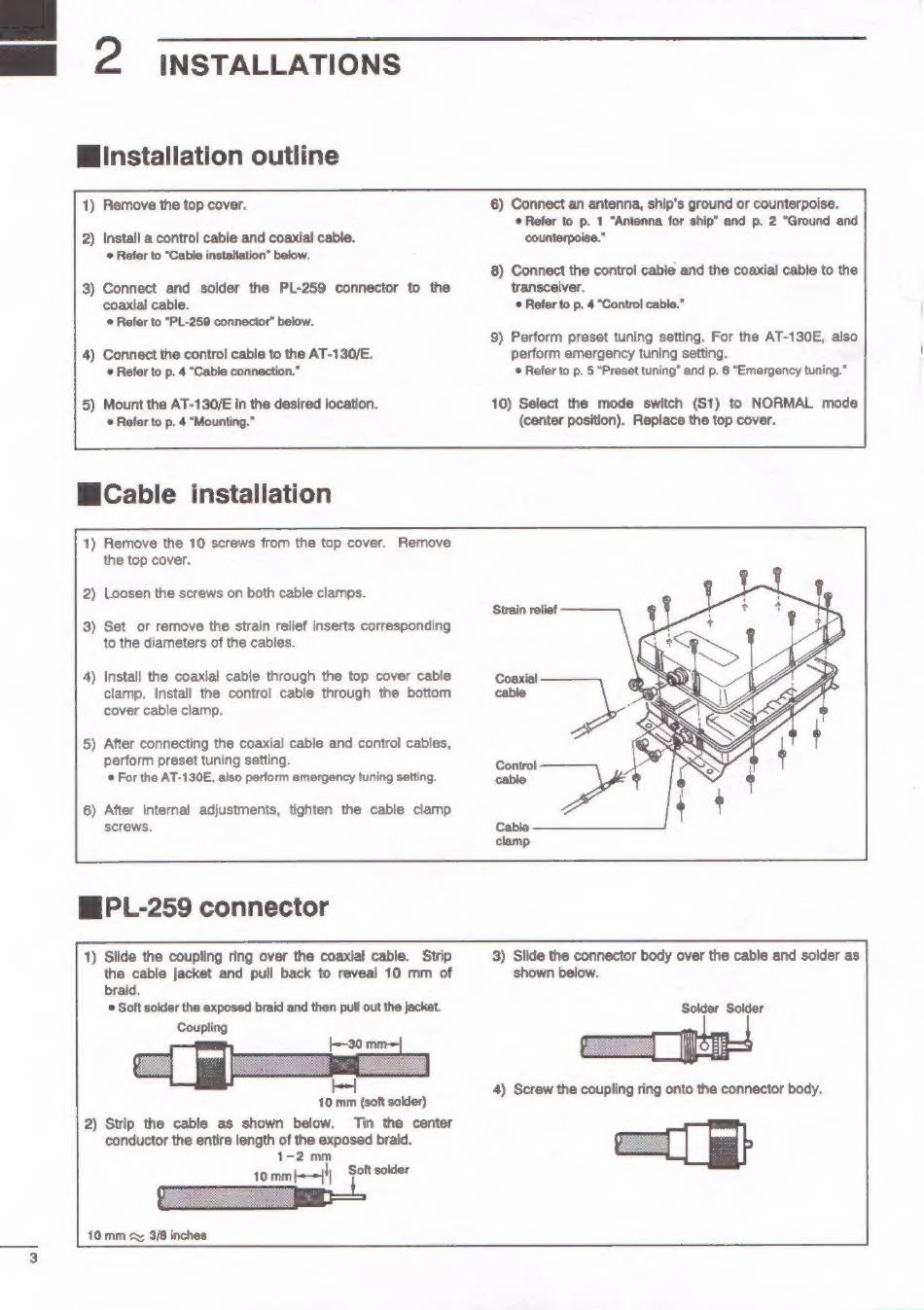

INSTALLATIONS
Hinstallation outline
1) Remove the top cover.
2) Install a control cable and coaxial cable.
Refer to "Cable installation" below.
3) Connect and solder the PL-259 connector to the
coaxial cable.
® Refer to "PL-259 connector" below.
4) Connect the control cable to the AT-130/E.
® Refer to p. 4 "Cable connection."
5) Mount the AT-130/E in the desired location.
* Refer to p. 4 "Mounting."
WCable installation
1) Remove the 10 screws from the top cover. Remove
the top cover.
2) Loosen the screws on both cable clamps.
3) Set or remove the strain relief inserts corresponding
to the diameters of the cables.
4) Install the coaxial cable through the top cover cable
clamp. Install the control cable through the bottom
cover cable clamp.
5) After connecting the coaxial cable and control cables,
perform preset tuning setting.
© For the AT-130E, also perform emergency tuning setting.
6) After internal adjustments, tighten the cable clamp
screws,
HIPL-259 connector
1) Slide the coupling ring over the coaxial cable. Strip
the cable jacket and pull back to reveal 10 mm of
braid.
* Soft solder the exposed braid and then pull out the jacket.
Coupling
[}--30 mi
ke
10 mm (soft solder)
2) Strip the cable as shown below. Tin the center
conductor the entire length of the exposed braid.
1-2 mm
oft solder
10 mm = 3/8 inches
6) Connect an antenna, ship's ground or counterpoise.
Refer to p. 1 "Antenna for ship" and p. 2 "Ground and
counterpoise."
8) Connect the control cable and the coaxial cable to the
transceiver.
© Refer to p. 4 "Control cable."
9) Perform preset tuning setting. For the AT-130E, also
perform emergency tuning setting.
@ Refer to p. 5 "Preset tuning" and p. 6 "Emergency tuning."
10) Select the mode switch (S1) to NORMAL mode
(center position). Replace the top cover.
3) Slide the connector body over the cable and solder as
shown below.
Solder Solder
