Emergency unit location
(for AT-130E)
DS1 - DS23 LED's
Control cable terminals
S1 Mode switch
DS24 LED
S3 Dip switch
S4 Dip switch
S5 Dip switch
J1 Antenna connector
Ground terminal
Mounting plate
Antenna terminal
• Dimensions
• Weight
• Usable temperature range
• Power supply requirement
• Current drain
• Frequency coverage
• Input impedance
• Max. input power
• Automatic tuning time
• Automatic tuning accuracy
: 230(W)
X
340(H)
X
80(D) mm
9.1(W)
X
13.4(H)
X
3.1(D) in
(projections not included)
: AT-130
2.5 kg; 5.5 lb
AT-130E 2.7 kg; 6.0 lb
: —30 °C to + 60 °C
: 13.6 V DC
(supplied
from HF transceiver)
: Max. 2 A
: 1.6
—
30 MHz (with 7 m; 23.0 feet or longer antenna element)
: 50 Q
: 150 W (PEP)
100 W
(continuous)
: Approx. 2
-
3 sec. (general condition)
Max.
15
sec.
Approx. 1 sec.
(retuning for a memorized frequency)
: SWR 2.0:1 (after tuning, except for multiples of 1/2 X )
All stated specifications are subject to change without notice or obligation.
INSIDE VIEW AND SPECIFICATIONS
5

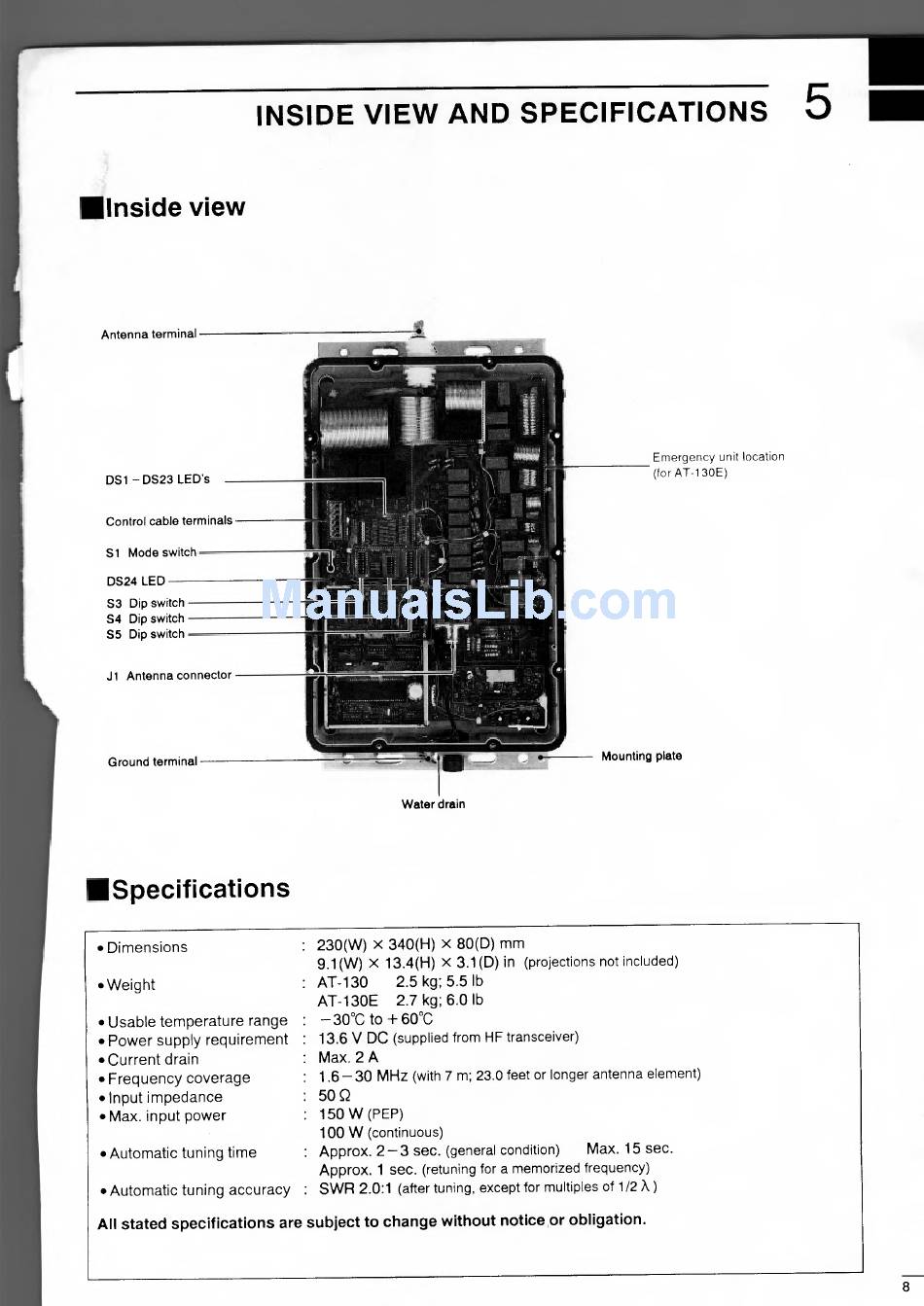

Inside view
Water drain
Specifications
