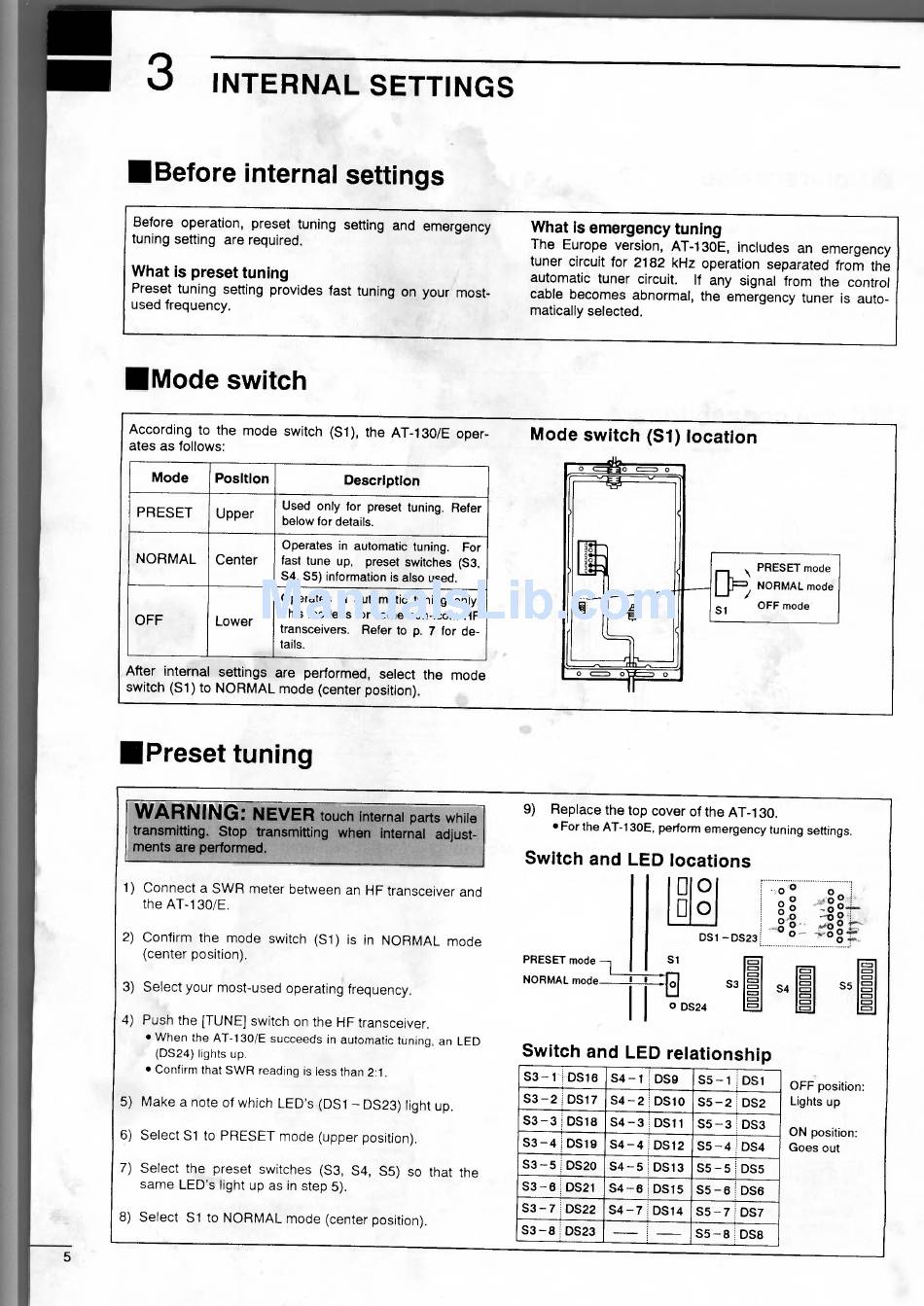

Before operation, preset tuning setting and emergency
tuning setting are required.
What is preset tuning
Preset tuning setting provides fast tuning on your most-
used frequency.
What is emergency tuning
The Europe version, AT-130E, includes an emergency
tuner circuit for 2182 kHz operation separated from the
automatic tuner circuit. If any signal from the control
cable becomes abnormal, the emergency tuner is auto-
matically selected.
r
CD 0
0 0
P N R O E R S ME A TLmodde
SI
OFF mode
According to the mode switch (S1), the AT-130/E oper-
ates as follows:
Mode
Position
Description
PRESET
Upper
Used only for preset tuning. Refer
below for details.
NORMAL
Center
Operates in automatic tuning.
For
fast tune up,
preset switches (S3,
S4, S5) information is also used.
OFF
Lower
Operates in automatic tuning only.
This mode is for some non-Icom HF
transceivers. Refer to p. 7 for de-
tails.
After internal settings are performed, select the mode
switch (S1) to NORMAL mode (center position).
Mode switch (Si) location
o°
0
•• •••
o
o 0 °
,,,,
s'
-0 0 - , o 0 •
o
o 0 _ 0
—0 01-
0 r,
3
INTERNAL SETTINGS
Before internal settings
Mode switch
RPreset tuning
5
WARNING:
NEVER
touch internal parts while
transmitting. Stop transmitting when internal adjust-
ments are performed.
1) Connect a SWR meter between an HF transceiver and
the AT
-
130/E.
2) Confirm the mode switch (S1) is
in NORMAL mode
(center position).
3) Select your most-used operating frequency.
4) Push the [TUNE] switch on the HF transceiver.
• When the AT-130/E
succeeds in automatic tuning, an LED
(DS24) lights up.
• Confirm that SWR reading is less than 2:1.
5) Make a note of which LED's (DS1 - DS23) light up.
6) Select Si to PRESET mode (upper position).
7) Select the preset switches (S3, S4, S5) so that the
same LED's light up as in step 5).
8) Select S1 to NORMAL mode (center position).
9)
Replace the top cover of the AT-130.
• For the AT-130E, perform emergency tuning settings.
Switch and LED locations
01
1 1 0
DS1 —DS23
PRESET mode Si
NORMAL mode
0 DS24
Switch and LED relationshi
S3 —1 DS18
S4 —1
DS9
S5 —1
DS1
S3-2 DS17
S4-2 DS10
S5-2 DS2
S3-3 DS18
S4 —3 DS11
S5-3 DS3
S3-4 DS19
S4-4 DS12
S5-4 DS4
S3 —5 DS20
S4 —5 DS13
S5 —5 DS5
S3-8 DS21
S4-8 DS15
S5-6 DS6
S3 —7 DS22
S4 —7 DS14
S5-7 DS7
S3 —8 DS23
S5 —8 DS8
OFF position:
Lights up
ON position:
Goes out
CI
S3
S4
S5
