2

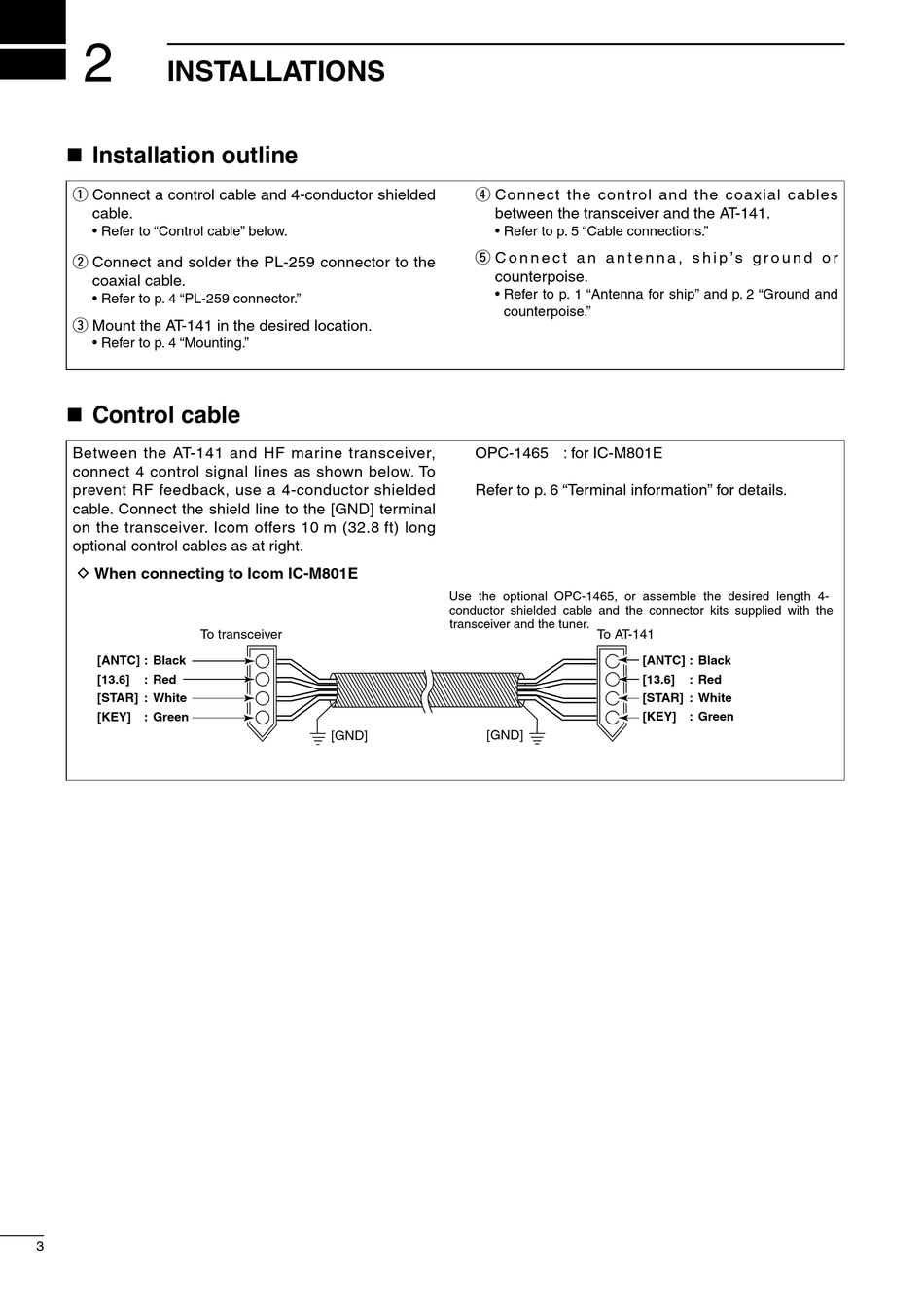

INSTALLATIONS
D When connecting to Icom IC-F7000, IC-M802
To transceiver
n Installation outline
q Connect a control cable and 4-conductor shielded
[E]
: Black
cable.
[13.6]
: Red
• Refer to "Control cable" below.
[STAR] : White
w Connect and solder the PL-259 connector to the
[KEY] : Green
coaxial cable.
• Refer to p. 4 "PL-259 connector."
e Mount the AT-141 in the desired location.
D When connecting to Icom IC-M710/RT, IC-M700PRO
• Refer to p. 4 "Mounting."
To transceiver
[STAR] : White
n Control cable
[KEY] : Green
Between the AT-141 and HF marine transceiver,
connect 4 control signal lines as shown below. To
prevent RF feedback, use a 4-conductor shielded
cable. Connect the shield line to the [GND] terminal
[13.6]
: Red
on the transceiver. Icom offers 10 m (32.8 ft) long
[E]
: Black
optional control cables as at right.
D When connecting to Icom IC-M801E
To transceiver
[ANTC] : Black
[13.6]
: Red
[STAR] : White
[KEY] : Green
3
Use the optional OPC-1147N/1286N/1465, or assemble the
desired length 4-conductor shielded cable and the connector kits
supplied with the transceiver and the tuner.
r Connect the control and the coaxial cables
between the transceiver and the AT-141.
• Refer to p. 5 "Cable connections."
t C o n n e c t a n a n t e n n a , s h i p ' s g r o u n d o r
counterpoise.
• Refer to p. 1 "Antenna for ship" and p. 2 "Ground and
[GND]
[GND]
counterpoise."
Use the optional OPC-566/1147N/1465 (either the connector to the
AT-141 or the transceiver requires assembly), or assemble the
desired length 4-conductor shielded cable and the connector kits
supplied with the transceiver and the tuner.
OPC-1465 : for IC-M801E
Refer to p. 6 "Terminal information" for details.
[GND]
[GND]
Use the optional OPC-1465, or assemble the desired length 4-
conductor shielded cable and the connector kits supplied with the
transceiver and the tuner.
[GND]
[GND]
To AT-141
[E]
: Black
[13.6]
: Red
[STAR] : White
[KEY] : Green
OPC-1465
To AT-141
[E]
: Black
[13.6]
: Red
[STAR] : White
[KEY] : Green
OPC-1465
To AT-141
[ANTC] : Black
[13.6]
: Red
[STAR] : White
[KEY] : Green
