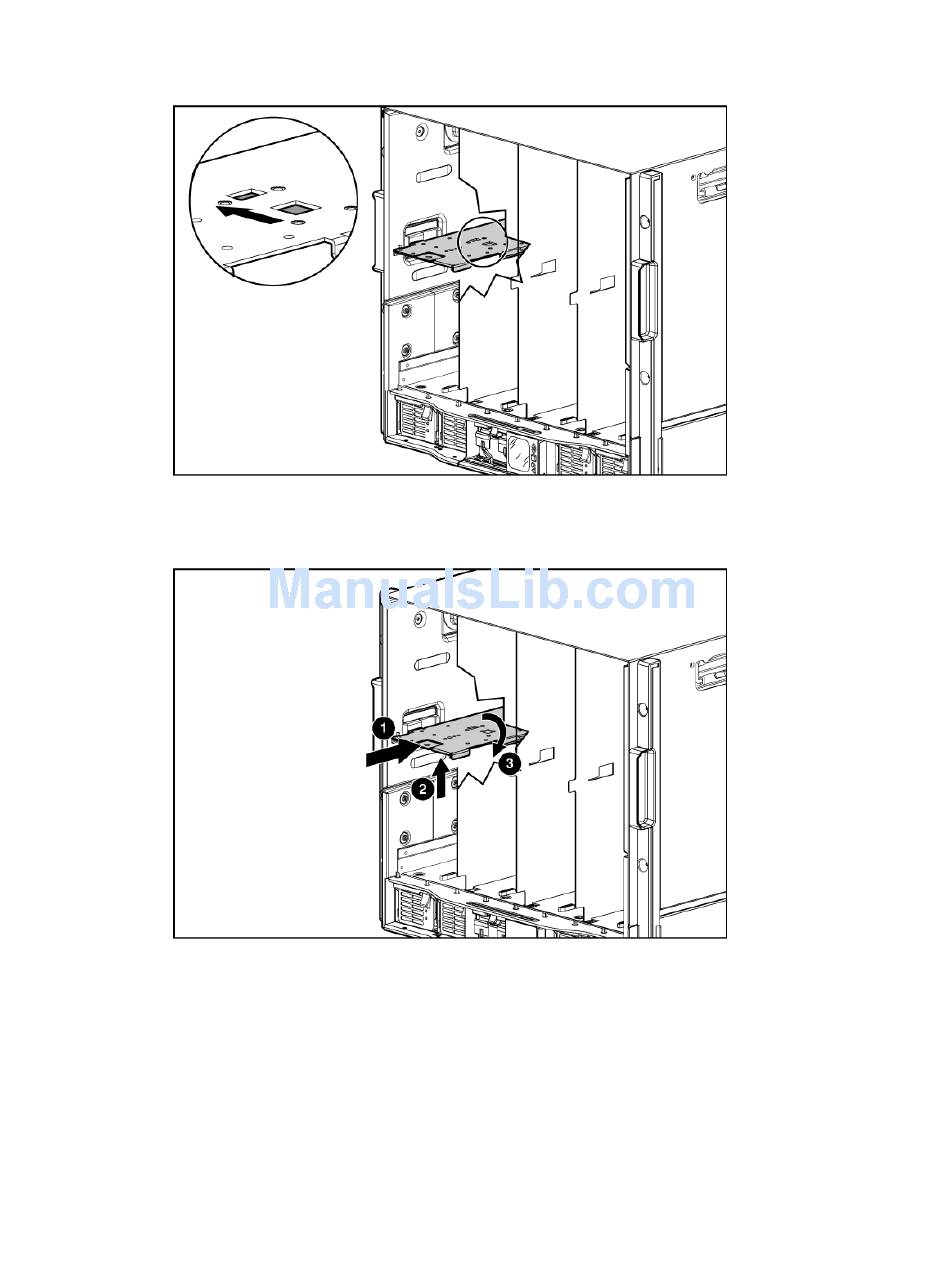

Removing a c7000 device bay divider
1.
Slide the device bay shelf locking tab to the left to open it.
2.
Push the device bay shelf back until it stops, lift the right side slightly to disengage the two
tabs from the divider wall, and then rotate the right edge downward (clockwise).
Installing and powering on the server blade
33
