Electronics Assembly (Front End/Back End Boards) (Figure 2-9)

Removal

1. Remove the bottom extrusion.
2. Remove the front panel and optics assembly.
3. Remove the four (4) screws and star washers that secures the electronics assembly to
the top extrusion supports:
4. Slide out the electronics assembly from the top extrusion.
5. Remove the rear panel and XSYNC assembly.
6. Disconnect the back end board (male connector J3) to the front end board (female
connector J3).

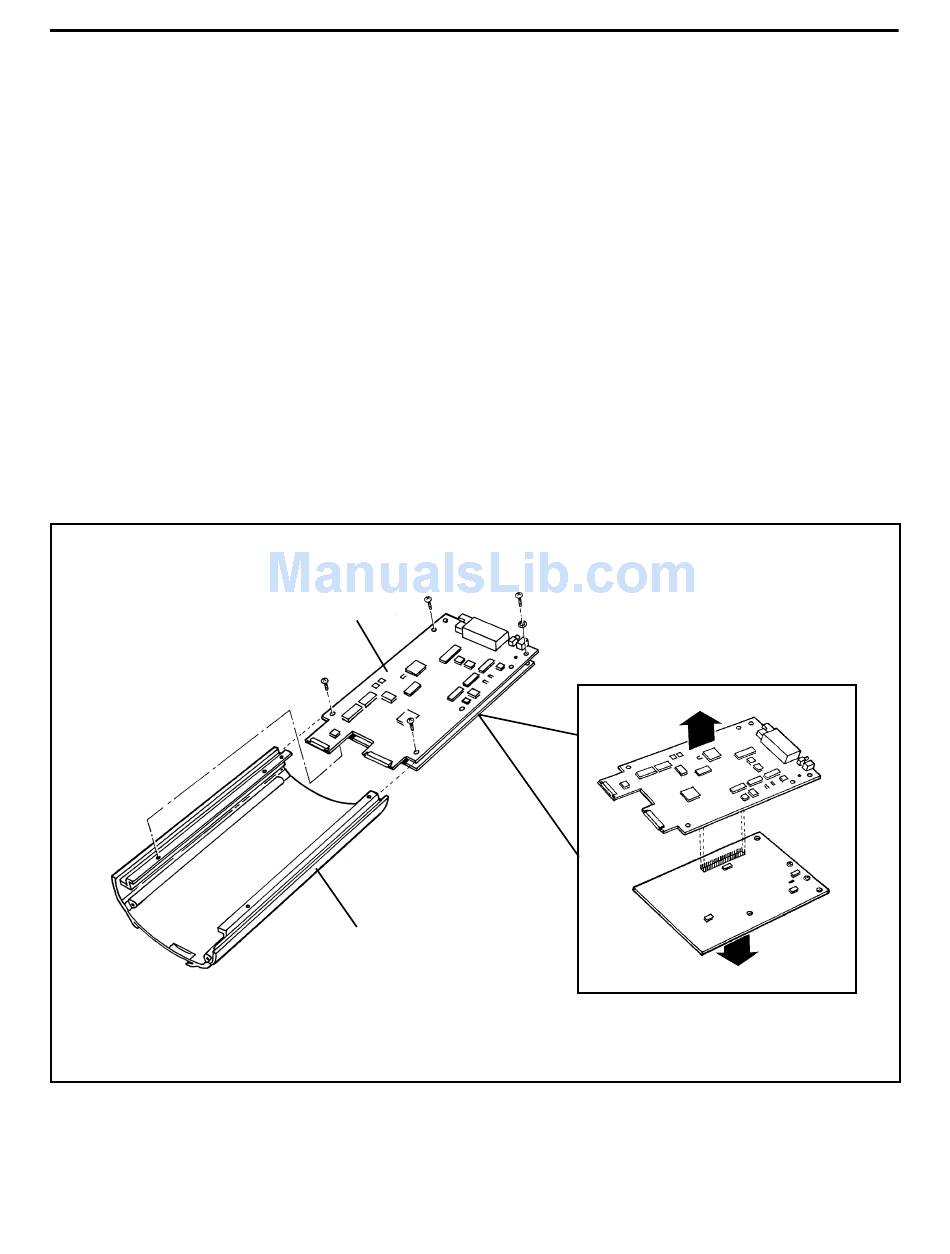

Figure 2-9. Removing electronic assembly (back/front end boards)
Electronics
Assembly
Top Extrusion
Back End
Board
Front End
Board
32
Parts Replacement
J3
