Optics Assembly (Figure 2-6)

Removal

1. Remove the bottom extrusion.
2. Remove the front panel and optics assembly.
3. Place the front panel and the optics assembly onto an anti-static mat.
4. Remove the three (3) screws securing the optics assembly to its front panel supports.
5. Remove the CCD retainer and the backing pad.
6. Lift off the CCD imager from the optical mount being careful not to scratch the CCD imager.
7. Lift out the optics assembly from the front panel.
Optics
Assembly

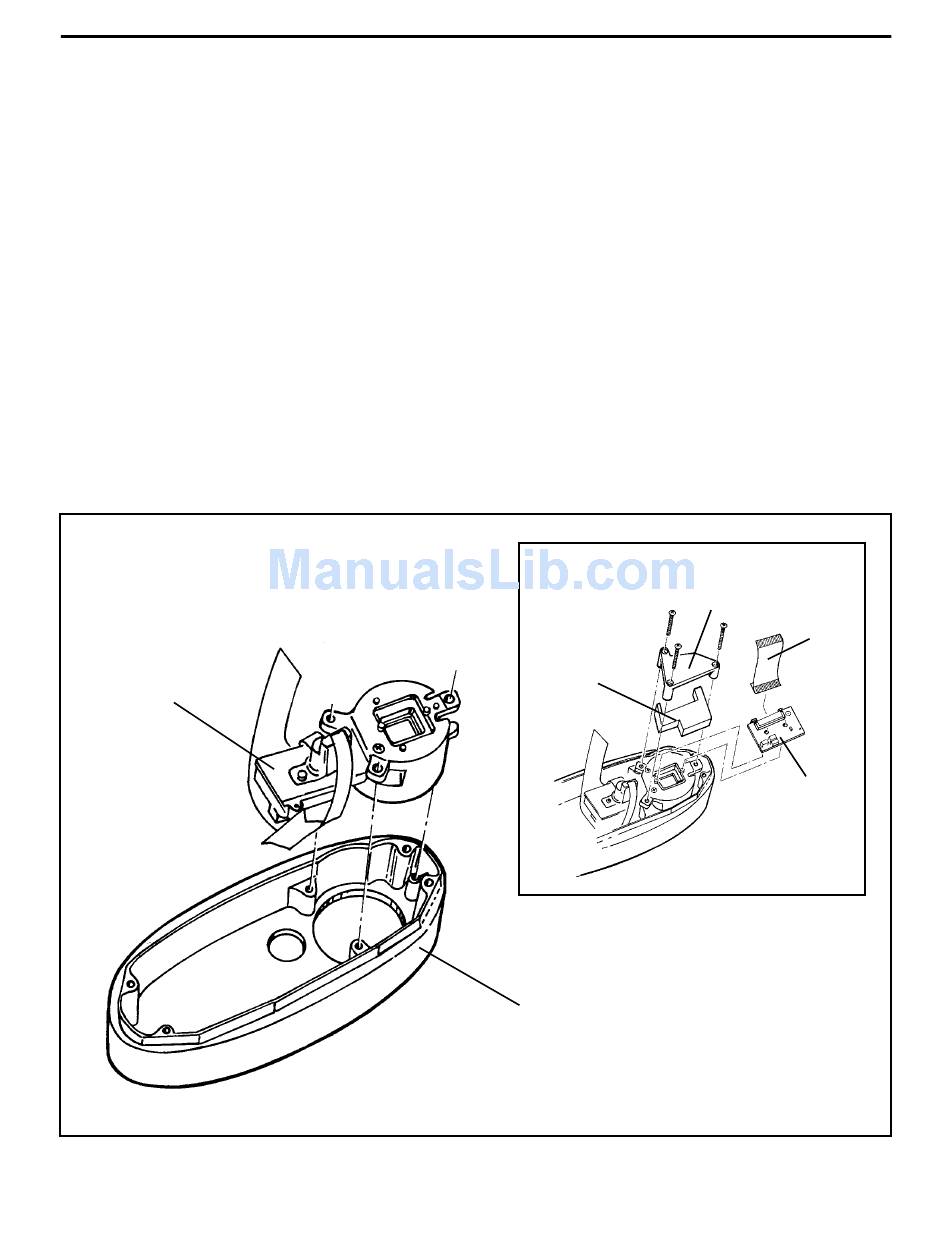

Figure 2-6. Removing optics assembly
25
Backing Pad
Front Panel
Parts Replacement
CCD Imager
Retainer
CCD Imager
Flex
CCD Imager PC
Board
