Page 2 Java® and Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. or other countries, and are used under license. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LXE, Inc. is under license.
Page 3 Moved AppLock Single Application Version section to Appendix C – Reference Material Appendix C – Reference New. Material Entire Manual Changed Reference Guide title to MX5X Reference Guide. Changed name of device to MX5X where applicable. DocID did not change.
Page 5: Table Of Contents
Enter the Multi AppLock Activation Key................... 24 Using a Stylus Tap..........................24 Using the Switch Key Sequence....................... 24 Copy the MX5X LXEbook to the MX5X (Optional) ................. 25 Enter Data ............................. 26 Keypad Entry ............................26 Stylus Data Entry ..........................26 Scanner Entry ............................
Page 6 Table of Contents RS-232 Data Entry ..........................28 Getting Help............................29 Manuals............................... 29 Accessories............................30 MX5X Standard..........................30 MX5X ISAFE Device ........................31 HAPTER HYSICAL ESCRIPTION AND AYOUT Hardware Configuration ........................33 System Hardware ..........................33 Central Processing Unit........................33 Core Logic............................
Page 7 Battery Status LEDs..........................55 Backup Battery............................ 55 Battery Maintenance Publication ......................55 Battery Chargers..........................56 MX5 Multi-Charger (Optional)......................56 External Power Supply for MX5X and Cradle ................... 57 Cradles ..............................58 Tethered Barcode Scanner Data Entry Using the MX5 Cradle............59 HAPTER YSTEM ONFIGURATION Introduction ............................
Page 8 Table of Contents ActiveSync ............................68 Synchronizing from the MX5X......................68 Get Connected ..........................68 Remote Desktop Connection....................... 69 Command Prompt ..........................69 Inbox ..............................69 Internet Explorer ..........................69 Media Player ............................70 Windows Explorer ..........................70 Transcriber ............................70 Taskbar..............................
Page 9 Serial Connection ........................... 107 USB Connection..........................107 Connect – Initial Install Process ..................... 108 Change Connection Parameters ......................108 Backup MX5X Files Using ActiveSync ................... 109 Prerequisites ........................... 109 MX5X and PC Partnership ......................109 Serial Port Transfer......................... 109 Infrared Port Transfer ........................109 USB Transfer..........................
Page 10 COM1/COM4 Tab..........................137 Barcode Tab ............................138 Buttons .............................. 138 Enable Code ID ..........................139 Options ............................139 Barcode – Symbology Settings ......................140 Parameters ............................141 Strip Leading/Trailing Control ....................... 142 Barcode Data Match List ......................143 MX5X Reference Guide E-EQ-MX5CERG-D...
Page 11 EAP-TLS Authentication ....................... 183 Cisco Client Configuration........................ 185 Aironet Client Utility (ACU) ......................185 Profiles Tab ............................ 185 Firmware Tab ..........................185 Status Tab ............................185 Statistics Tab ..........................185 Survey Tab............................186 Cisco Wireless Security ........................186 E-EQ-MX5CERG-D MX5X Reference Guide...
Page 12 Installing a Root CA Certificate on the Mobile Device ..............208 User Certificates..........................210 Generating a User Certificate for the MX5X ................. 210 Installing a User Certificate on the MX5X (WPA-TLS Only)............215 HAPTER Introduction ............................219 Determine Your AppLock Version ....................219 Setup a New Device ...........................
Page 13 ECHNICAL PECIFICATIONS Physical Specifications ........................243 Display Specifications........................244 Environmental Specifications ......................244 MX5X ............................... 244 AC Wall Adapter ..........................244 Network Card Specifications ......................245 Summit Client 2.4GHz Type II......................245 Symbol Client 2.4GHz Type II ......................245 Cisco Client 2.4GHz Type II ......................245...
Page 14 Figure 2-6 DB26 RS-232 Pinouts ........................42 Figure 2-7 MX5X USB Port ..........................43 Figure 2-8 USB-Serial Cable Pinouts ........................43 Figure 2-9 IR Port on MX5X ..........................43 Figure 2-10 Scan Buttons...........................44 Figure 2-11 Power Modes – On, Suspend and Off ....................45 Figure 2-12 The ANSI / Batch Keypad......................47 Figure 2-13 Touchscreen ...........................50...
Page 15 Figure 5-6 SCU – Status Tab ...........................162 Figure 5-7 SCU – Diags Tab..........................163 Figure 5-8 SCU – Global /Global Settings Tab ....................164 Figure 5-9 Sign-On Screen ..........................170 Figure 5-10 Choose Certificate ........................171 Figure 5-11 Configure a Summit Profile with No Security ................172 E-EQ-MX5CERG-D MX5X Reference Guide...
Page 16 Figure 5-62 Logon to Certificate Authority .....................210 Figure 5-63 Certificate Services Welcome Screen...................210 Figure 5-64 Request a Certificate Type ......................211 Figure 5-65 Advanced Certificate Request Screen ..................211 Figure 5-66 Advanced Certificate Details......................212 Figure 5-67 Script Warnings..........................213 Figure 5-68 Script Warnings..........................213 MX5X Reference Guide E-EQ-MX5CERG-D...
Page 17 Figure 6-1 Determine Your AppLock Version ....................219 Figure 6-2 AppLock Panels ..........................221 Figure 6-3 Switchpad Menu..........................224 Figure 6-4 Application Panel – Multi-Application ..................225 Figure 6-5 Application Launch Options......................227 Figure 6-6 Security Panel – Multi-Application....................230 Figure 6-7 Status Panel – Multi-Application ....................231 E-EQ-MX5CERG-D MX5X Reference Guide...
Page 18 Table of Contents MX5X Reference Guide E-EQ-MX5CERG-D...
Page 19: Chapter 1 Introduction

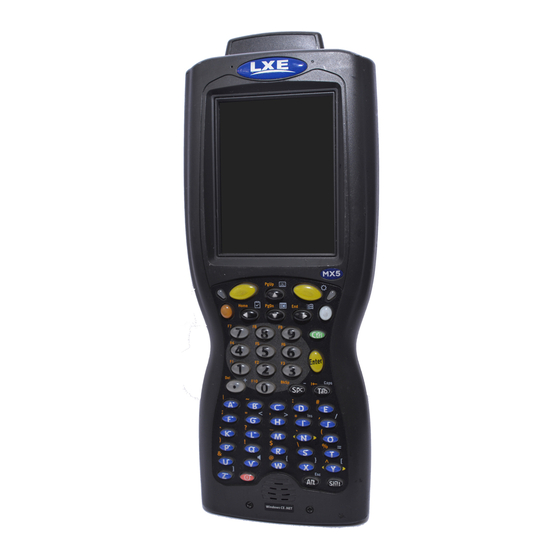

Overview Note: At the bottom of the MX5X is a label that indicates the operating system resident on the mobile device. This guide is directed toward an MX5X with Windows CE on the label. The LXE® MX5X is a rugged, portable, hand-held Microsoft® Windows® CE .NET 4.2 or CE 5.0 equipped mobile computer capable of wireless data communications.
Page 20: Important Battery Information
• Whenever possible, use the AC power adapter with the MX5X to conserve the main battery and charge the backup battery. • When a new battery is installed in the MX5X for the first time (or when the backup battery is completely depleted), the Time and Date reverts to it’s default values.
Page 21: Document Conventions
Keyword that indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. DANGER Keyword that indicates a imminent hazardous situation which, if not avoided, will result in death or serious injury. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 22: Identify Your Device
Identify Your Device Identify Your Device At the front bottom of the MX5X is a label indicating the operating system resident on the mobile device. This document is one in a series covering the MX5X family of computers: Label : Windows CE .NET For MX5X computers equipped with Microsoft Windows CE .NET 4.2 or CE 5.0...
Page 23: Mx5X Features
MX5X Features New features affect user interaction and internal operation of the MX5X. The appropriate wireless client utility for your device configuration has been pre-installed by LXE and the utility icon is displayed on the desktop. Windows CE .NET 4.2 Windows CE 5.0...
Page 24: Upgrading An Mx5X To Ce 5.0
If your (3.8 inch / 9.6 cm diagonal) MX5X touch screen border looks like this: The device must be returned to LXE for upgrading to CE 5.0, or an LXE Field Service Engineer can be dispatched to upgrade the hardware and software. Contact your LXE representative for assistance.
Page 25: Mx5X Hazardous Location Device
MX5X Hazardous Location Device MX5X Hazardous Location Device Label : I-SAFE Environmental Specifications Operating Temperature -6°F to 140°F (-21°C to 60°C) [non-condensing] Storage Temperature -60°F to 160°F (-51°C to 71°C) [non-condensing] Rating IEC IP67 Operating Humidity 5% to 90% non-condensing at 140°F (60°C)
Page 26: Getting Started
LXE to your specifications. The sequence of steps in Getting Started must also be completed when the MX5X returns from a Cold Reset and when a new OS version is loaded. The wireless client, flash card, virtual keyboard and scanner parameters may also need to be reset after a cold reset.
Page 27: Troubleshooting Start-Up
(e.g. Start | Settings ). There may be small delays while the wireless client The MX5X seems to lockup as soon as it is connects to the network, Wavelink Avalanche management warm booted.
Page 28: Access Terminal Emulation Parameters
When returning from a Cold Reset the previously saved (or original if this is the first Cold Reset) registry savings are reloaded. When you want to save the registry without having to reset the MX5X, tap the My Computer icon then the System folder then double-tap the RegSave file.
Page 29: Components
Components Components Figure 1-3 Front of MX5X Scanner Housing Keypad Microphone Power Key Touchscreen Speaker Figure 1-4 Scan Aperture and Audio Jack Scan Aperture Audio Jack E-EQ-MX5CERG-D MX5X Reference Guide...
Page 30: Figure 1-5 Ports
COM 4 – RS-232 and AC Power AC Power Connection Connection COM 3 – IR Port Figure 1-6 Back w/Optional Handle or Hand Strap Scanner Trigger Stylus and Stylus Pocket Battery Fastener Trigger Handle Main Battery MX5X Reference Guide E-EQ-MX5CERG-D...
Page 31: Figure 1-7 Handle (Optional)
Components Figure 1-7 Handle (Optional) Scan Aperture Handle Trigger E-EQ-MX5CERG-D MX5X Reference Guide...
Page 32: Power Key
The Power key is located next to the < Z > key on the keypad. When a battery is inserted in the MX5X for the first time press the Power key. Tapping the Power key places the MX5X immediately in Suspend mode. Tapping the Power key again, or connecting to AC power, immediately releases the MX5X from Suspend Mode.
Page 33: Assembly
Li-Ion batteries (like all batteries) gradually lose their capacity over time (in a linear fashion) and never just stop working. This is important to remember – the MX5X is always ‘on’ even when in the Suspend state and draws power from the batteries at all times. Tap the | Settings | Control Panel | Power tab to check the battery status and power reading.
Page 34: Connect External Power Supply (Optional)
The MX5X receives AC/DC power from the AC/DC 12V Power Supply or a powered MX5 Cradle. The MX5X DC power connection is located at the base of the MX5X. The cradle power jack is located on the back of the cradle.
Page 35: Install Pistol Grip Handle (Optional)
With the handle installed the Scan key on the keypad remains active. The trigger duplicates the operation. The handle is built of a durable and flexible plastic that will not detach from the MX5X if the unit is dropped. The trigger handle is a mechanical device. Battery or external A/C power is not required for operation of the trigger handle.
Page 36: Install Handstrap
An elastic hand strap is available for the MX5X. Once installed, the hand strap provides a means for the user to secure the computer to their hand. It is adjustable to fit practically any size hand and is easily moved to allow installation or removal of the MX5X battery pack.
Page 37: Figure 1-15 Strap Inserted In Upper Bracket
MX5X. Insure that both ends of the bottom assembly are securely installed. 6. After securing the bottom of the strap to the MX5X, loosen the closed loop fastener strap and then secure the upper bracket to the unit with a screw.
Page 38: How To
The first time it is used, the MX5X automatically runs the touchscreen calibration program. The calibration program is also run when Cold Reset is used. If the MX5X is not responding properly to pen touch taps, the touchscreen may need to be recalibrated. Contact your System Administrator for assistance.
Page 39: Set Time Zone (Optional)
How To Set Time Zone (Optional) Note: The first time it is used, or the device returns from a Cold Reset, the MX5X sets Date and Time to the factory default values. To set the Time Zone, tap the | Settings | Control Panel | Date/Time icon.
Page 40: Set The Mx5X Power Schemes Timers
This process returns the backlight to it’s brightest intensity. Connect Audio Jack (Optional) The MX5X audio jack is located on the top of the unit next to the scan aperture. The internal speaker is disabled when the audio jack is connected.
Page 41: Set The Audio Speaker Volume
Shift+Blue+Shift puts the unit in ‘Blue’ Mode which, when followed by ‘V’, puts the unit in ‘Volume Adjust’ mode as well. If the MX5X is responding to touch input, but does not respond to keypad (hard or soft) input, the MX5X may still be in Volume Adjust mode.
Page 42: Enter The Multi Applock Activation Key
A checkmark indicates applications currently active or available for Launching by the user. Previous versions used the program icon to indicate the same function. When Keyboard is selected, the MX5X default input method (Input Panel, Transcriber, or custom input method) is activated.
Page 43: Copy The Mx5X Lxebook To The Mx5X (Optional)
The LXEbook user guides do not contain the illustrations and regulatory information contained in the full user guides on the LXE Manuals CD and on the LXE Website. See the full format user guide MX5X User’s Guide on the LXE Manuals CD.
Page 44: Enter Data
The keypad is used to manually input data that is not collected otherwise. Almost any function that a full sized computer keyboard can provide is duplicated on the MX5X keypad but it may take a few more keystrokes to accomplish a keyed task. Please refer to Appendix A – Key Maps for instruction on the specific keypresses to access all keypad functions.
Page 45: Scanner Entry
Align the red beam so that the barcode is centered within the beam. The laser beam must cross the entire barcode. Move the MX5X towards or away from the barcode so that the barcode takes up approximately two-thirds the width of the beam.
Page 46: Input Panel
• Tap the au key to access symbols. Figure 1-20 Input Panel RS-232 Data Entry The MX5X accepts input from an RS-232 device connected to either RS-232 port. Note: ActiveSync (running on the desktop computer) will not transfer files over the RS-232 connector on the MX5 cradle IF the scanner port is configured for COM 1 External.
Page 47: Getting Help
LXE ServicePass website. Contact your LXE representative to obtain the LXE Manuals CD. You can also get help from LXE by calling the telephone numbers listed on the LXE Manuals CD, in the file titled Contacting LXE. This information is also available on the LXE website’s ServicePass page.
Page 48: Accessories
Getting Help Accessories Note: Bluetooth access, Bluetooth modules and Bluetooth Manager are not supported by LXE. MX5X Standard Note: Items with a Green letter R in the first column are ROHS-compliant. Please contact your LXE representative when ordering ROHS-compliant items as the part number may have changed.
Page 49: Mx5X Isafe Device
Getting Help Tethered Scanners (requires 3” D26 to DA9M cable) Cable, MX5X for Powerscan, 3”, D26 to DA9M MX5A055CBL3IND26D9M Scanner, Powerscan, SR, 8’ Cbl 8300A326SCNRPWRSR8DA9F Strap with Scanner clip 9000A411SCNRSTRAP Scanner, Powerscan, SR, 12’ Cbl 8300A327SCNRPWRSR12DA9F Scanner, Powerscan, LR, 8’ Cbl 8310A326SCNRPWRLR8DA9F Scanner, Powerscan, LR, 12’...
Page 50 Getting Help MX5X Reference Guide E-EQ-MX5CERG-D...
Page 51: Chapter 2 Physical Description And Layout
LXE does not distribute nor support headsets connected to the MX5X. Central Processing Unit The LXE MX5X CPU is an Intel Xscale processor running at 400 MHz. The operating system is, either Microsoft CE .NET 4.2 or Microsoft CE 5.0, resident in flash memory.
Page 52: System Memory
Visual Basic programming languages, TCP/IP and PPP network protocols. The Flash is configured as the primary boot device. The computer has one Type I/II CF slot and one ATA CF slot. The MX5X supports and auto detects up to 256MB of Type I compact flash memory.
Page 53: Com Ports
Refer to ActiveSync Processes in Chapter 3 of this guide. Audio Interface An interface is available for headset/microphone operation. When the headset is plugged into the audio port next to the scan aperture, the speaker at the bottom, front of the MX5X is disabled. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 54: Power Key
Cold Reset Hold down the Power key, the Blue key and the Orange keys for 4+ seconds. The MX5X will power off, release the keys and the device will power on again. Calibrating the touchscreen will need to be performed when the MX5X powers on again. See Chapter 3, section titled Disable Touch and / or Calibration upon Cold Reset.
Page 55: Pcmcia And Flash Cards
Slot 0 The MX5X has one internal compact Flash card port that supports Type I and II CF cards. The wireless client drivers are stored on the compact flash card in the ATA CF slot (under the main battery pack). During the cold boot process, the JmpStart program accesses the compact flash card and loads the wireless client drivers and any saved parameters.
Page 56: Installation / Removal
• Anti-static protection is required when installing/removing cards. (Not supplied by LXE) If you anticipate keeping a card out of the MX5X for a long period of time place it in a static-free storage container. Store in an area that is protected from dirt, moisture, and electrostatic contact.
Page 57: Accessing The Data On Cf And Pcmcia Cards
Hatch CF Card Tap the | Programs | Windows Explorer | Storage Card (Storage Card 2 when the PCMCIA slot is not empty). Hatch PCMCIA Card Tap the | Programs | Windows Explorer | Storage Card. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 58: Com Ports
The COM 3 port is always the IR port on the base of the MX5X. COM 4 is always the right (with screen facing up) RS-232 port on the base of the MX5X. COM 4 port accepts RS-232 and AC power connectors.
Page 59: Integrated Scanner Port (Optional)
Scan buttons have no effect on tethered barcode scanners connected to the RS-232 port. The Scanner LED illuminates during any integrated scanner activation. Look on the label on the back of the MX5X. The type of installed scan engine should be clearly labeled and may be one of the following: •...
Page 60: Data Entry And Tethered Scanners
Please refer to the tethered scanner manufacturer’s user guide for instruction. RS-232 Serial Ports RS-232 connection is made through an RS-232 serial port. The connector is an industry-standard RS-232 DB26 female connector. The MX5X automatically detects the cable configuration type. Figure 2-5 RS-232 Ports COM1 Cable connections: RS-232, Ethernet, USB and AC Power.
Page 61: Usb Port
COM Ports USB Port The USB port (the left port when the MX5X is face up) requires a DB26 to USB cable (available from LXE). The connector is an industry-standard RS-232 DB26 female connector. Figure 2-7 MX5X USB Port The serial port/USB port also supports serial data transfer (using a null modem cable) and USB I/O at 1.5 Mbps.
Page 62: Programmable Buttons
The default setting for the right button is Enter. The default setting for the left button is Enter. When the MX5X does not have an integrated scanner, both buttons default to Enter keys and the Scan selection is greyed out. The buttons can be programmed to perform other functions when there is no internal scanner.
Page 63: Power Modes
• the display backlight is on until the Backlight timer expires The MX5X After a new MX5X has been received, a charged main battery inserted, and the Power key tapped, the MX5X is always On until both batteries are drained completely of power.
Page 64: Led Indicators
A Power key tap wakes the unit and resets the display backlight timers. Connecting the MX5X to AC power wakes the unit and resets the display backlight timers. When the unit wakes up, the Display Backlight and the Power Off timers begin the countdown again.
Page 65: The Keypad
Enter Key Function The Enter key is used to confirm a forms entry or to transmit information. How it is used is determined by the application running on the computer. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 66: Nd Key Function
IBM TN5250 specific keypad only. The left Scan key can be programmed as a Field Exit key. The Field Exit key is used to exit an input field. If the field is an Auto Enter field, the auto transmit function is activated. Refer to the Programmable Buttons section for instruction. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 67: Mode Key Functions
The Input Panel is always available. Tap the keyboard icon at the bottom of the screen to put the input panel on the display. See Input Panel in Chapter 1. If the touch screen has been disabled, the input panel is not available. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 68: Accessing Files On The Compact Flash Card
Touchscreen Figure 2-13 Touchscreen The MX5X Touchscreen is an Active Color LCD unit capable of supporting QVGA graphics modes. Display size is 240 x 320 pixels in portrait orientation. The covering is designed to resist stains. The touchscreen allows signature capture and touch input. A pen stylus is included. The touchscreen responds to an actuation force (touch) of 4 oz.
Page 69: Cleaning The Glass Display/Scanner Aperture
Figure 2-14 Speaker Location The MX5X Speaker has a loudness of at least 87 dB (1500 Hz) at 10 cm measured from the front of the unit. The Speaker volume is adjustable via the keypad or the Settings or by an application through the use of an API call.
Page 70: Set The Audio / Speaker Volume
Shift+Blue+Shift puts the unit in Blue Mode which, when followed by <V>, puts the unit in Volume Adjust mode as well. If the MX5X is responding to touch input, but does not respond to keypad (hard or soft) input, the MX5X may still be in Volume Adjust mode.
Page 71: Power Supply
Whenever possible, use the AC power adapter with the MX5X to conserve the main battery and charge the backup battery.. When a new battery is installed in the MX5X for the first time (or when the backup battery is completely depleted), the Time and Date must be re-set.
Page 72: Main Battery Pack
Battery Hot-Swapping When the main battery power level is low, the MX5X will signal the user with a warning dialog box on the display and a warning tone. The low battery warning notice and tones continue until the main battery is replaced, the battery completely depletes, external power is applied to the MX5X using an AC Adapter, or the MX5X is placed in a powered cradle.
Page 73: Low Battery Warning
AC adapter. It takes several hours of operation before the backup battery is capable of supporting the operation of the computer. The duration of backup battery life is dependent upon operation of the MX5X, it’s features and any operating applications.
Page 74: Battery Chargers
Figure 2-15 LXE Multi-Charger The MX5X main battery pack can be charged in the LXE Multi-Charger. The main battery pack can be charged in the LXE Multi-Charger. Please refer to the MX5 Multi- Charger User’s Guide for instruction. The multi-charger requires an external power source before battery pack charging can commence.
Page 75: External Power Supply For Mx5X And Cradle
Battery Chargers External Power Supply for MX5X and Cradle The MX5X DC adapter can be plugged into either of the D26 pin connectors on the bottom of the MX5X. The cradle power jack is located on the back of the cradle.
Page 76: Cradles
The cradles are not designed to secure an MX5X with a protective padded case. The vehicle cradle is not designed to secure an MX5X with a trigger handle. The desktop cradles will secure mobile device’s with handstraps or trigger handles.
Page 77: Tethered Barcode Scanner Data Entry Using The Mx5 Cradle
The serial port parameters may need to be changed to match the parameters of the tethered scanner. When a tethered scanner is connected to the serial port on a vehicle cradle, the MX5X scanner must be configured as follows: 1. Start | Settings | Control Panel | Scanner | Main | either Port 1 or Port 2 2.
Page 78 Cradles MX5X Reference Guide E-EQ-MX5CERG-D...
Page 79: Chapter 3 System Configuration
Your MX5X operating system may be Windows CE .NET 4.2 or Windows CE 5.0. The MX5X operating system is displayed on the Desktop as Windows CE .NET or Windows CE. This is the factory default value for the Desktop Display Background.
Page 80: Software Load
Optional Software Load The software loaded on the MX5X computer consists of Windows CE .NET 4.2 or Windows CE 5.0 OS, hardware-specific OEM Adaptation Layer, device drivers, Internet Explorer 6.0 for Windows CE browser and utilities. The software supported is summarized below: •...
Page 81: Java (Option)
The MX5X has the Avalanche Enabler installation files loaded, but not installed, on the mobile device when it is shipped from LXE. The installation files are located in the System folder on CE devices. The installation application must be run manually the first time Avalanche is used.
Page 82: Desktop
Note: Whenever possible, use the AC power adapter with the MX5X to conserve the main battery and to ensure the backup battery is charged. The Desktop appearance is similar to that of a desktop PC running Windows 2000 or XP. At a minimum, it has desktop icons that can be tapped with the stylus to access My Computer, Internet Explorer, and the Recycle Bin.
Page 83: My Computer Folders (Ce .Net 4.2)
Files in the Startup folder are executed, but only from System\Startup. Windows\Startup is parsed too early in the boot process so it has no effect. Executables in System\Startup must be the actual executable, not a shortcut, because shortcuts are not parsed by Launch. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 84: My Device Folders (Ce 5.0)
Data saved by running applications Data Storage for downloaded files / My Documents applications Network Mounted network drive Program Files Applications Internal SD Flash Card (CAB file System storage) Temp Location for temporary files Windows Operating System in Secure Storage MX5X Reference Guide E-EQ-MX5CERG-D...
Page 85: Start Menu Program Options
The Microsoft File Viewers cannot display files that have been password protected or encrypted. Communication Access: | Programs | Communication Note: Some communication menu options require an external modem connection to the MX5X. Modems are not available from LXE nor supported by LXE. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 86: Activesync
Once a relationship (partnership) has been established with Connect (on a desktop computer), ActiveSync will synchronize using the wireless link, serial port, USB or the infrared port on the MX5X. Refer to ActiveSync Processes later in this guide. Note: ActiveSync does not transmit through the IR port in vehicle cradles. It will transport through the IR port of the MX5 desktop cradles.
Page 87: Remote Desktop Connection
Inbox as it relates to the general desktop Windows PC Microsoft Outlook Inbox options. Tap the <?> button to access Inbox Help. ActiveSync can be used to transfer messages between the MX5X inbox and a desktop inbox. Refer to ActiveSync Processes in Chapter 3 of this guide.
Page 88: Media Player
Select Transcriber on the Start | Programs menu or tap the icon on the Desktop. To make changes to the Transcriber application, enable or disable the current Transcriber session, etc., tap the hand with a pen icon in the toolbar. Tap the <?> button or the Help button to access Transcriber Help. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 89: Taskbar
Tap the checkbox to have the Control Panel folders appear in drop down menu format from the Settings | Control Panel menu option. Clear Contents of Document Folder Tap the Clear button to remove the contents of the Recently Opened Document folder. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 90: Control Panel Options
Network and Dial Up Set network driver properties and network access properties. Options Owner Set MX5X owner details (name, phone, etc) and Notes. Enter Network ID for the device – user name, password, domain. Includes option to display owner identification at power-on. Password Set MX5X user access password properties.
Page 91: Accessibility
Control Panel Options Option Function PC Connection Control the connection between the MX5X and a local desktop or laptop computer. Power Set Power scheme properties. Review battery status and properties.. Regional Settings Set appearance of numbers, currency, time and date based on regional and language settings.
Page 92: Administration - For Applock
AppLock configuration by the Administrator are available to the user. LXE devices with the AppLock feature are shipped to start up in Administration mode with no default password, and when the device is started for the first time, the user has full access to the mobile device and no password prompt is displayed.
Page 93: Audio
Version 1.01 Version 1.02 System Speaker Volume Loud Loud Events Enabled Enabled Applications Enabled Enabled Notifications Enabled Enabled Key Clicks Loud Loud Screen taps Loud Loud Routing System (Normal) Enabled Enabled Wireless Phone (Network card) Disabled Disabled E-EQ-MX5CERG-D MX5X Reference Guide...
Page 94: Certificates
Certificates are date sensitive and if the date is not correct authentication will fail. Figure 3-6 Digital Certificates Lists the Stored certificates trusted by the MX5X user. These values may change based on the type of wireless security resident in the client, access point or the host system. MX5X Reference Guide...
Page 95: Date/Time
Daylight Savings Disabled Note: Date and time is reset to the default value each time the MX5X is rebooted. Figure 3-7 Date/Time Properties There is minimal change from general desktop PC Date/Time Properties options. Adjust the settings and tap the OK box or the Apply button to save the changes. The changes take effect immediately.
Page 96: Dialing
Control Panel Options Dialing Access: | Settings | Control Panel | Dialing Set dialup properties for internal modems (not supplied/supported by LXE). Tap the <?> and follow the instructions in Help. Factory Default Settings Location Work Area Code Tone Dialing...
Page 97: Display
Adjust the settings and tap the OK box to save the changes. The changes take effect immediately. When the backlight timer expires, the screen backlight is dimmed not turned off and the keypad backlight is turned off. Default values are 1 minute for Battery power and 10 minutes for External power. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 98: Handheld
(My Computer\System folder). When this file is present on the CF card, the touch screen is disabled, and calibration does not occur after a cold reset. To enable the Touch Panel only, uncheck the Touch Panel Disabled checkbox on the Misc tab in the Handheld Properties Control Panel (Start/Settings/Control Panel/Handheld/Misc tab). MX5X Reference Guide E-EQ-MX5CERG-D...
Page 99: Bootloader Version 1.02
COM 1 Port Main Connector enabled Disabled: Power Output for Main Connector, Options Bay COM 4 Port Main Connector enabled Disabled: Power Output for Main Connector, Options Bay Bay Power Disabled: CRMA, Bay 3V, Bay 5V E-EQ-MX5CERG-D MX5X Reference Guide...
Page 100: Radios Tab
PC Slot Wakeup Enabled Disabled (blank) Bluetooth Radio Enabled Disabled (blank) [see Note] Ethernet Enabled Enabled (checkmark) Note: Bluetooth access, modules and Bluetooth Manager are not supported by LXE. Misc tab Parameter Defaults Keyboard Backlight Enabled (checkmark) Enabled Nonvolatile option...
Page 101: Bootloader Version 1.01
Enabled (checkmark) PC Slot Wakeup Enabled Disabled (blank) Bluetooth Radio Enabled Disabled (blank) [see Note] Ethernet Enabled Enabled (checkmark) Note: Bluetooth access, modules and Bluetooth Manager are not supported by LXE. Misc tab Parameter Defaults Keyboard Backlight Disabled Enabled Nonvolatile option...
Page 102: Input Panel
Use this option to make the Input Panel or the physical keypad primarily available when entering data. When new key maps are added to the registry, they will appear in the Input Method dropdown list. Tap the Input Panel icon in the taskbar to toggle the on-screen Keyboard on and off. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 103: Internet Options
Control Panel Options Internet Options Access: | Settings | Control Panel | Internet Options Set MX5X user options for internet connectivity. Windows CE .NET 4.2 Defaults Factory Default Settings General Start Page http://www.msn.com/ Search Page search.msn.com Cache Size 512 Kb...
Page 104: Keyboard
There is no change from general desktop PC Keyboard Properties options. Adjust the settings and tap the OK box to save the changes. The changes take effect immediately. These values do not affect virtual keyboard (Input Panel) taps. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 105: Mouse
11. Select the new connection. Tap OK twice. 12. Close the Control Panel window. 13. Connect the desktop PC to the MX5X with the appropriate cable. 14. Tap the desktop Connect icon to test the new connection. You can activate the connection by double-tapping on the specific connection icon in the Remote Networking window, but this will only start an RAS (Remote Access Services) session, and does not start ActiveSync properly.
Page 106: Owner
Control Panel Options Owner Access: | Settings | Control Panel | Owner Icon Set MX5X owner details. Factory Default Settings Identification Name, Company, Address, Telephones Blank Display at power-on Disabled Notes Notes Blank Display at power-on Disabled Network ID User Name...
Page 107: Password
The screensaver password is not automatically enabled when the power-on checkbox is enabled. PC Connection Access: | Settings | Control Panel | PC Connection Control the connection between the MX5X and a nearby desktop/laptop computer. Factory Default Settings Enable direct connection Enabled Connect Using ‘USB Default’...
Page 108: Figure 3-14 Pc Connection / Change Connection
Control Panel Options Figure 3-14 PC Connection / Change Connection Please refer to the Backup MX5X Files section later in this chapter for parameter setting recommendations. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 109: Power
The Schemes tabs allows the user to set the Suspend timers when the mobile device is running on Battery power or AC power. Adjust the settings and tap the OK box to save the changes. The changes take effect immediately. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 110: Regional Settings
Figure 3-16 Remove/Delete User Installed Programs Select a program and tap Remove. Follow the prompts on the screen to uninstall user-installed only programs. The change takes effect immediately. Files stored in the My Documents folder are not removed using this option. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 111: Scanner
Scanner control panel options are based on the installed software version levels, driver and OS versions in MX5X devices. Your Scanner options may or may not be as described in this section. Contact your LXE representative to obtain the most current software and drivers for your mobile device.
Page 112: Factory Default Settings
ActiveSync will not work over a COM port if that COM port is enabled in the Scanner applet as a scanner input. For example, if COM 1 is being used by the scanner, COM 1 can’t be used by any other program. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 113: Main
If Send Key Messages … is checked any data scan is converted to keystrokes and sent to the active window. When this box is not checked, the application will need to use the set of LXE Scanner APIs to retrieve the data from the scanner driver. Note that this latter method is significantly faster than using Wedge.
Page 114: Keys
Field Exit key. When set to Esc the Scan key press halts the current function. Change a Virtual Key (F20 or F21) Value Modify the Registry using the Registry Editor. LXE recommends caution when editing the Registry and also recommends making a backup copy of the registry before changes are made.
Page 115: Advanced
When the number of characters to be stripped is greater than the number of characters in the barcode a good read beep is sounded but all barcode data is discarded. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 116: Prefix / Suffix
• All keypad keys can be entered by typing the key. Some keypad keys are only valid if in Key Message mode. For example, the Function Keys (F1, PF1) are only valid in Key Message mode. See Hat Encoding and Decimal-Hexadecimal Chart in Appendix C Reference Material. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 117: Com Ports
SCANBAD.WAV. These are unprotected WAV files and can be replaced by a WAV file of the user’s choice. By default a good scan sound on the MX5X is a single 2700 Hz beep, and a bad scan sound is a double beep.
Page 118: Storage Manager
| Settings | Control Panel | Storage Manager Note: Storage Manager is not available until a storage device is installed in the MX5X. Installed storage devices are listed by device name in the dropdown box. To view information about the disk or perform store operations, select a device from the list.
Page 119: Stylus
Figure 3-23 Stylus Properties / Calibration Start / Calibration Begin Press and hold the stylus on the center of the target as it moves around the screen. Press Enter to keep the new calibration settings or Esc to cancel. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 120: System
Move the slider to allocate more memory for programs or storage. If there isn’t enough space for a file, increase the amount of storage memory. If the MX5X is running slowly, try increasing the amount of program memory. Adjust the settings and tap the OK box to save the changes. The changes take effect immediately.
Page 121: Device Name
The device name and description can be changed. Enter the name and description using either the keypad or the Input Panel and tap OK to save the changes. The changes take effect immediately. Copyrights This screen is presented for information only. The Copyrights information cannot be changed by the user. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 122: Compact Flash Cards, Cab Files And Programs
CF card is located in the socket under the main battery pack. It is important that all CAB files on the card be given Read-Only attributes. On the MX5X, when a read-only CAB file is unpacked, it is not deleted.
Page 123: Bluetooth Manager (Ce .Net 4.2 Only)
The guide lists only the LXE-specific API calls and details which calls from the standard LXE API are and are not supported on the MX5X. It is intended as an appendix to the standard Microsoft Windows CE API documentation. The APIs detailed in the Programming Guide are included in the file LXEAPI.DLL..
Page 124: Activesync / Get Connected Process
(in the information types you select) identical on both your PC and your mobile device. If an information type is selected that does not exist on the MX5X, the data appears to transfer, but it is ignored by the MX5X and not loaded.
Page 125: Initial Install
Note: The default is USB Default. This will set up the MX5X to use COM 1. Tap OK and ensure the check box for Enable direct connections to the desktop computer is checked. Select Start | Settings | Control Panel | Scanner and ensure the integrated laser scanner is set to a port that is NOT the same as the Get Connected port (COM 1).
Page 126: Connect - Initial Install Process
1. From the popup list, choose Option Description IRDA This will set up the MX5X to use the Infrared port at 57600 or 115200 baud USB (Default) This will set up the MX5X to use the USB port direct. COM1 @ 115200...
Page 127: Backup Mx5X Files Using Activesync
Setup. Serial Port Transfer A PC with an available serial port and an MX5X with a serial port. The desktop or laptop PC must be running Windows 95, 98, NT or 2000. Null modem cable with all control lines connected. LXE recommends using the RS-232 cable listed in the following section Connect.
Page 128: Ethernet Or Wireless Connection
Tap the status bar icon in the lower right hand corner of the status bar. Then tap the Disconnect button. IRDA Connection Move the MX5X so the infrared beam is broken. Tap the status bar icon in the lower right hand corner of the status bar. Then tap the Disconnect button.
Page 129: Cold Boot And Loss Of Host Re-Connection
An ActiveSync partnership for a unique client can be established to two hosts. If the MX5X is cold booted, the random number is deleted – and the partnership with the last one of the two hosts is also deleted. The host retains the random numbers and unique names of all devices having a partnership with it.
Page 130 ActiveSync / Get Connected Process On the MX5X • Tap Start | Programs | Communication | Get Connected to establish an ActiveSync connection to the host. ActiveSync indicator on the host turns green and spins, but connection never occurs Baud rate of connection is not supported or detected by host.
Page 131: Irescue
Itronix. You can use the iRescue program to backup and restore the contents of the MX5X files and registry. There are four basic reasons to use iRescue: • To clone program settings and files from one device onto other devices.
Page 132: Change Backup Settings
Select the Restore button to restore the files and registry settings of a backup. Only selected items in the tree view are restored; all unselected items are skipped. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 133: Wavelink Avalanche Enabler Configuration
Wavelink Avalanche Enabler Configuration Wavelink Avalanche Enabler Configuration An MX5X device manufactured before October 2006 must have drivers and system files upgraded before it can use the Avalanche Enabler functions. Please contact an LXE representative for details on upgrading the mobile device baseline.
Page 134: Stop The Enabler Service
7. Reboot the device if necessary. Update Monitoring Overview There are three methods by which the Enabler on an LXE device can communicate with the Agent running on the host machine. • Wired via a serial cable between the Agent PC and the LXE device.
Page 135: Mobile Device Wireless And Network Settings
Choose settings for the Use Manual Settings parameter. Choose settings for Manage Network Settings, Manage Wireless Settings and Use Avalanche Network Profile. Click the OK button to save the changes. Reboot the device. See Also: LXE Computers and Wavelink Avalanche User’s Guide. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 136: Enabler Configuration
The opening screen presents the user with the connection status and a navigation menu. Figure 3-27 Avalanche Enabler Opening Screen File View Help Connect Updates Adapter Info Abort Programs About Settings Icons Scan Config List Exit Details Launchable All Packages Time on Taskbar Device Status MX5X Reference Guide E-EQ-MX5CERG-D...
Page 137: File Menu Options
The password is not case-sensitive. Scan Config Note: LXE does not support the Scan Configuration feature on Windows CE devices. The Scan Config option under the File menu allows the user to configure Enabler settings using a special barcode that can be created using the Avalanche Management Console utilities.
Page 138: Avalanche Update Settings
Access: | Avalanche | File | Settings Use these menu options to setup the Avalanche Enabler on the mobile device. LXE recommends changing and then saving the changes (reboot) before connecting to the network. Alternatively, the Agent on the Wavelink Avalanche Management Console can be disabled until needed (refer to the Wavelink Avalanche Manager User Guide for details).
Page 139: Connection
Address device. Check Serial Indicates whether the Enabler should first check for serial port connection Connection to the Agent before checking for a wireless connection to the Agent. Disable Disable ActiveSync connection with the Agent. ActiveSync E-EQ-MX5CERG-D MX5X Reference Guide...
Page 140: Execution
Select Auto- The drop-down box provides a list of applications that have been installed Execute App with the Avalanche Management System. Delay before Time delay before launching Auto-Execute application. execution MX5X Reference Guide E-EQ-MX5CERG-D...
Page 141: Server Contact
Connect to the Agent when the Enabler is accessed. Contact when Initiate connection to the Agent based on a docking event. Not available cradled on the MX5X. Contact Allows the administrator to configure the Enabler to contact the Agent Periodically and query for updates at a regular interval beginning at a specific time.
Page 142: Startup/Shutdown
Wavelink Avalanche Enabler Configuration Startup/Shutdown LXE recommends using LXE AppLock for this function. AppLock is resident on each mobile device with a Windows OS. AppLock configuration instructions are located in Chapter 6. Figure 3-31 Startup / Shutdown Options Do not monitor or launch...
Page 143: Scan Config
Wavelink Avalanche Enabler Configuration Scan Config Note: Scan Config functionality is a standard option of the Wavelink Avalanche System but is not currently supported by LXE on Windows CE. Figure 3-32 Scan Config Option Display Figure 3-33 Window Display Options...
Page 144: Shortcuts
Wavelink Avalanche Enabler Configuration Shortcuts LXE recommends using LXE AppLock for this function. AppLock is resident on each mobile device with a Windows OS. AppLock configuration instructions are located in Chapter 6. Figure 3-34 Application Shortcuts Configure shortcuts to other applications on the mobile device. Shortcuts are viewed and activated in the Programs panel.
Page 145: Adapters
Wavelink Avalanche Enabler Configuration Adapters Note: LXE recommends the user review the network settings configuration utilities and the default values in Chapter 5 before setting All Adapters to Enable in the Adapters applet. Figure 3-35 Adapters Options – Network Manage Network When enabled, the Enabler will control the network settings.
Page 146: Figure 3-36 Avalanche Network Profile Displayed
The Enabler will apply all network settings sent to it by the Management Console. Avalanche Icon Selecting the Avalanche Icon will access the Avalanche Network Profile tab which will display current network settings. Figure 3-36 Avalanche Network Profile Displayed MX5X Reference Guide E-EQ-MX5CERG-D...
Page 147: Figure 3-37 Manual Settings Properties Panels
Figure 3-37 Manual Settings Properties Panels For descriptions of these Enabler parameters, refer to Chapter 5 Wireless Network Configuration. LXE does not recommend enabling Manage Wireless Settings for Client devices. When you download a profile that is configured to manage network and wireless settings, the...
Page 148: Status
Failure to perform the warmboot will leave the device in an undetermined configuration and it may not perform as expected. If the intention is to stop using Avalanche to manage the device configuration, please see Enabler Uninstall Process earlier in this section. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 149: Chapter 4 Scanner
Scanner control panel options are based on the installed software version levels, driver and OS versions in MX5X devices. Your Scanner options may or may not be as described in this section. To identify the current software version, go to Start | Settings | Control Panel | Handheld.
Page 150: Barcode Processing Overview
After scanning the Reset All (to factory defaults) barcode for the specific scan engine, the next step is Start | Settings | Control Panel | Scanner. Tap the OK button and close the scanner applet. This action will synchronize all scanner formats. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 151: Factory Default Settings
• If the internal scanner has to be configured to operate at any communication settings other than 9600, N, 8, 1 and the MX5X either loses power or a cold boot command is entered, the Scanner applet must be reconfigured to match the scanner communication settings.
Page 152: Main Tab
When this box is not checked, the application will need to use the set of LXE Scanner APIs to retrieve the data from the scanner driver. Note that this latter method is significantly faster than using Wedge.
Page 153: Good Scan And Bad Scan Sounds
SCANBAD.WAV. These are unprotected WAV files and can be replaced by a WAV file of the user’s choice. By default a good scan sound on the MX5X is a single 2700 Hz beep, and a bad scan sound is a double beep.
Page 154: Change A Virtual Key (F20 Or F21) Value
F20 and F21. Left Backspace Right Space Enter Down Home Break Page Up Page Down Single letters, numbers and punctuation are valid; a is valid but not aaaaa, 3 is valid but not 333. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 155: Com1/Com4 Tab
Figure 4-3 Scanner Control / COM1 and COM4 Adjust the settings and tap the OK box to save the changes. The changes take effect immediately. Note: Pin 9 power for tethered scanners is supported via the Handheld Settings control panel applet. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 156: Barcode Tab
The Scanner application enables or disables the Code ID that may be scanned. Enabling or disabling a specific barcode symbology is done manually using the configuration barcode in the Integrated Scanner Programming Guide (available on the LXE Manuals CD and the LXE ServicePass website).
Page 157: Enable Code Id
• The tethered scanner operation cannot be controlled by the scanner driver; therefore, a ‘good’ beep may be sounded from the tethered scanner even if a barcode from a tethered scanner is rejected because of the configuration specified. The MX5X will still generate a ‘bad’ scan beep, to indicate the barcode has been rejected.
Page 158: Barcode - Symbology Settings
Barcode Data) add a prefix or suffix to a barcode. The Symbology drop-down box contains all symbologies supported on the MX5X. An asterisk appears in front of symbologies that have already been configured or have been modified from the default value.
Page 159: Parameters
Any barcode scanned that has more characters than specified in the Max field is rejected. The default for this field is All. If the value entered is greater than the maximum value allowed for that symbology, the maximum valid length will be used instead. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 160: Strip Leading/Trailing Control
Barcode tab. Programmed custom identifiers are always checked (in the order they are entered) and stripped, regardless of Enable Code ID setting. By default, Code ID stripping is enabled for all symbologies (meaning code IDs will be stripped, unless specifically configured otherwise). MX5X Reference Guide E-EQ-MX5CERG-D...
Page 161: Barcode Data Match List
• Prefix and Suffix data is always added on after stripping is complete, and is not affected by any stripping settings. • If the stripping configuration results in a 0 length barcode, a ‘good’ beep will still be sounded, since barcode data was read from the scanner. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 162: Match List Rules
Strip: Code ID in the Symbologies dialog. If Strip Code ID is disabled, then the barcode data to match must include the Code ID. If Strip Code ID is enabled, the data should not include the Code ID since it has already been stripped. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 163: Add Prefix/Suffix Control
See Hat Encoding and Decimal-Hexadecimal Chart in Appendix C Reference Material. Note: Non-ASCII equivalent keys in Key Message mode are unavailable in this option. Non- ASCII equivalent keys include the function keys (e.g. <F1>), arrow keys, Page up, Page down, Home, and End. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 164: Barcode - Ctrl Char Mapping
Barcode – Ctrl Char Mapping See Also: Barcode Processing Overview earlier in this chapter. The Ctrl Char Mapping button activates a dialog to define the operations the LXE Wedge performs on control characters (values less than 0x20) embedded in barcodes. Control characters can be replaced with user-defined text which can include hat encoded or hex encoded values.
Page 165 Delete This button is grayed unless an entry in the list box is highlighted. When an entry (or entries) is highlighted, and Delete is selected, the highlighted material is deleted from the list box. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 166: Barcode - Custom Identifiers
ID Code defines the data at the beginning of a barcode that acts as an identifier (the Code actual Code ID). Both Name and ID Code must be specified in order to add a custom text box Code ID to the Custom IDs list. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 167: Buttons
0x0d. Escaped hat-encoded The hat-encoding to Horizontal Tab ‘\^I’ Value 0x09 in a text pass thru to the barcode is application. converted to the text ‘^I’. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 168: Barcode Processing Examples
Provided that the wedge is configured with the previous table, below are examples of scanned barcode data and results of these manipulations. Barcode Symbology Raw Scanner Data Resulting Data EAN-128 ]C11234567890123 bbb1234567890xxx EAN-128 ]C111234567890123 bbb11234567890xxx EAN-128 ]C1123 < rejected > (too short) MX5X Reference Guide E-EQ-MX5CERG-D...
Page 169: Figure 4-12 Barcode Processing Examples
Rejected barcodes generate a bad scan beep. In some cases, the receipt of data from the scanner triggers a good scan beep (from the external scanner), and then the rejection of scanned barcode data by the processing causes a bad scan beep on the same data. Figure 4-12 Barcode Processing Examples E-EQ-MX5CERG-D MX5X Reference Guide...
Page 170: Chapter 5 Wireless Network Configuration
Utility (SCU) features described in this chapter. Please contact your LXE representative for details. The MX5X mobile device offers a choice of Cisco, Symbol and Summit clients. The Summit client is an 802.11g network device and is compatible with Windows CE operating systems. The Cisco and Symbol clients are 802.11b wireless devices and are compatible only with the Windows...
Page 171: Summit Client Configuration
The Diags tab provides utilities to troubleshoot the client (network device). Update Driver and Site Survey functions are not available in this release. Contact your LXE representative for availability. Global parameters are found on the Global Settings or Global tab. The values for these parameters apply to all profiles.
Page 172: Summit Tray Icon
3. Tap the Disable Radio button to remove the connection to the Summit Client Utility. The text on the button changes to Enable Radio. 4. Tap the Power button to place the MX5X in Suspend, then tap the Power button to wake the MX5X from Suspend mode.
Page 173: Main Tab
Admin mode. The profile must already exist. LXE recommends performing a Suspend/Resume function when changing profiles. Profiles can be created or edited after the Admin password has been entered and accepted (LXE recommends that only the default profile be edited).
Page 174: Admin Login
• Access additional troubleshooting features on the Diags tab. After Admin login, the end user can also: • Create, edit, rename and delete profiles on the Config or Profile tab. • Edit global parameters on the Global Setting or Global tabs. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 175: Config Or Profile Tab
Saves the profile settings made on this screen. Settings are saved in the profile. Credentials Allows entry of a username and password, certificate names, and other information required to authenticate with the access point. The information required depends on the EAP type. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 176 Important – The settings for Auth Type, EAP Type and Encryption depend on the security type chosen. Please refer to Wireless Security later in this Summit Client Utility section to determine the proper settings for the security type implemented on the wireless LAN. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 177: Config/Profile Parameters
BG Rates Full only, BG optimized. Note: Default value may vary depending on installed SCU driver version. Auth Type Open 802.11 authentication type used when associating with the Access Point. Options are: Open, LEAP, or Shared key. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 178 TKIP, CKIP Manual, CKIP Auto, Manual WEP CKIP, or Auto WEP CKIP. Note: The Encryption type chosen determines if the WEP/PSK Keys button is active and also determines the available entries in the WEP or PSK pop-up window. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 179: Status Tab
Note: After completing radio configuration, it is good practice to review this screen to verify the radio has associated (no encryption, WEP) or authenticated (LEAP, any WPA), as indicated above. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 180: Diags Tab
Windows folder. It is overwritten when Diagnostics is run again. Not available in earlier releases. Tap the Save To . . . button to save the Diagnostics log to a TXT file in the (default) My Device folder. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 181: Global Or Global Settings Tab
Figure 5-8 SCU – Global /Global Settings Tab Custom Parameter Option LXE does not support the parameter Custom option. The parameter value is displayed as “Custom” when the operating system registry has been edited to set the Summit parameter to a value that is not available from the parameter’s drop down list.
Page 182: Global Parameters
The amount by which a different Access Point signal strength must exceed the current Access Point signal strength before roaming to the different Access Point is attempted. Options are: 5 dBm, 10, 15, 20, 25, 30, 35 dBm or Custom. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 183 Admin Login button is tapped. If Hide Password is On, the password is masked when typed in the Admin Password Entry text box. The password is case sensitive. This value is masked when the Admin is logged out. Options are: none. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 184 A valid directory path, of up to 64 characters, where WPA Certificate Authority and User Certificates are stored on the mobile device. LXE suggests ensuring the directory path currently exists before assigning the path in this parameter. See sections titled Root Certificates and User Certificates later in this chapter for instructions on obtaining CA and User Certificates.
Page 185: Summit Wireless Security
Certificates are date sensitive and if the date is not correct authentication will fail. Default profile LXE recommends editing the Default profile instead of creating new profiles. Perform a Warm Reset (using the Suspend/Resume key sequence) after changing parameters to save the changed parameters in the registry.
Page 186: Sign-On Vs. Stored Credentials
2. For PEAP-MSCHAP, PEAP-GTC and EAP-TLS import the CA certificate into the Windows certificate store. 3. For EAP-TLS, also import the User Certificate into the Windows certificate store. 4. Access the Credentials screen again. Make sure the Validate server and Use MS store checkboxes are checked. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 187: Figure 5-9 Sign-On Screen
If the user clicks the Cancel button, the device does not associate. The user is not prompted again for credentials until the device is rebooted, the radio is disabled then enabled, the Reconnect button on the Diags tag is clicked or the profile is modified and the Commit button is clicked. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 188: Windows Certificate Store Vs. Certs Path
7. Select the desired certificate and click the Select button to return the selected certificate to the CA Cert textbox. 8. Click OK to exit the Credentials screen and then Commit to save the profile changes. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 189: No Security
Tap the Commit button to save the new profile configuration. Perform a warm reset function to connect using the new profile configuration. LXE recommends performing a Warm Reset or Suspend/Resume function after making changes to the SCU configuration. MX5X Reference Guide...
Page 190: Wep Keys
Valid keys are 10 (for 40 bit encryption) or 26 (for 128 bit encryption) hexadecimal characters (0- 9, A-F). Enter the key(s) and tap OK. ASCII Key Format Valid keys are 5 (for 40 bit encryption) or 13 (for 128 bit encryption) alphanumeric characters. Enter the key(s) and tap OK. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 191: Leap W/O Wpa Authentication
No entries are necessary for Sign-On Credentials as the user will be prompted for the User name and Password when connecting to the network. Figure 5-14 LEAP Credentials Dialog Enter the Username or Domain \Username in the Credentials popup text entry box, if desired. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 192: Eap-Fast Authentication
RADIUS server. The RADIUS server must have auto provisioning enabled to send the PAC provisioning credentials to the client device. Please refer to the LXE Security Primer for more information on the RADIUS server configuration.
Page 193: Figure 5-16 Summit Eap-Fast Credentials
Tap OK then tap Commit to save the new profile configuration. Ensure the correct Active Profile is selected on the Main tab and perform a warmboot (or Suspend/Resume) function. See Also: Sign-On vs. Stored Credentials earlier in this chapter if the username and password are left blank during setup. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 194: Peap/Mschap Authentication
Encryption to WPA TKIP. To use Stored Credentials, tap the Credentials button. No entries are necessary for Sign-On Credentials as the user will be prompted for the User name and Password when connecting to the network. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 195: Figure 5-18 Peap/Mschap Credentials Dialog
The device should be authenticating the server certificate and using PEAP/MSCHAP for the user authentication. See Also: Sign-On vs. Stored Credentials earlier in this chapter if the username and password are left blank during setup. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 196: Wpa/Leap Authentication
See Also: LEAP w/o WPA earlier in this section to configure the client for LEAP without WPA. See Also: Sign-On vs. Stored Credentials earlier in this chapter if the username and password are left blank during setup. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 197: Wpa Psk Authentication
Enter the Passphrase in the PSK Entry popup text entry box. This value can be a 64 hex character or an 8-63 byte ASCII value. Tap OK Tap the Commit button to save the new profile configuration. Perform a warm reset (or Suspend/Resume) to connect using the new profile configuration. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 198: Peap/Gtc Authentication
Set Encryption to WPA TKIP. To use stored credentials, tap the Credentials button. No entries are necessary for sign-on credentials as the user will be prompted for the user name and password when connecting to the network. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 199: Figure 5-24 Peap/Gtc Credentials Dialog
The date must be properly set on the device to authenticate a certificate. Perform a Warm Reset function to connect using the new profile configuration. See Also: Sign-On vs. Stored Credentials earlier in this chapter if the username and password are left blank during setup. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 200: Eap-Tls Authentication
No entries are necessary for sign-on credentials as the user will be prompted for the user name and password when connecting to the network. If the username and password are left blank during setup, see Sign-On vs. Stored Credentials earlier in this chapter. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 201: Figure 5-26 Eap-Tls Credentials Dialog
Perform a Warm Reset function to connect using the new profile configuration. Refer to Sign-On vs. Stored Credentials and Windows Certificate Store vs Certs Path earlier in this chapter For information on generating a Root CA certificate, please see “Root CA Certificate” later in this chapter. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 202: Cisco Client Configuration
Displays the current firmware version and allows you to load new firmware. Tap the Browse button to locate the new firmware file. Status Tab Immediately runs status on signal strength and signal quality. Statistics Tab Select the Receive Stats or Transmit Stats. The data is displayed on the screen. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 203: Survey Tab
• WPA requires software revision 1ED or greater. To identify the software revision, tap on the About icon in the Control Panel. • Refer to the LXE Security Primer to prepare the Authentication Server and Access Point for MX5X communication.
Page 204: Checking For The Cisco Peap Supplicant
Note: Instructions are also included in the README file located in the \SYSTEM folder. There are two Cisco CAB files in the \SYSTEM folder of the MX5X. The default files are CISCO.CAB and CISCOPEAP.CAB. The default CISCO.CAB file provides for all authentications except Cisco PEAP. When the default CISCO.CAB file is loaded, the Wireless Network Properties screen looks like the previous...
Page 205: Cisco Wpa Configuration
After booting up, the Microsoft Zero Config tool should start. If it does not, start configuring the wireless connection by tapping on the WZC icon (networked computers) in the toolbar. The Wireless Network Connection screen appears. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 206: Figure 5-30 Cisco Wireless Information Screen
Set the Networks to access drop down box to Only access points. Tap the OK button on the Advanced Wireless Settings screen and the Wireless Information Screen is displayed. On the Wireless Information screen tap the Add New … line. The Wireless Network Properties screen is displayed. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 207: Figure 5-32 Cisco Wireless Network Properties
Enter the Network name (SSID) into the text field. For PEAP/MSCHAP and EAP/TLS, set Encryption to TKIP and Authentication to WPA. For WPA/PSK see WPA/PSK Authentication Configuration. To configure the IEEE 802.1X Authentication box see the following sections for configuration of each authentication protocol. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 208: Peap/Ms-Chap Authentication Configuration
Figure 5-34 Cisco Authentication Settings When first configuring and authenticating, do not validate the server certificate. This allows the user authentication to be tested. When user authentication is successful, come back to this screen and validate the server certificate. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 209: Figure 5-35 Cisco Wireless Network Login
Once authenticated, tap the IP Information tab. Figure 5-36 Cisco IP Information Tab If the network is set to use DHCP, the mobile device displays the IP address assigned by the DHCP server. Now go back and authenticate the server. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 210: Server Authentication
<SSID>, as shown in the figure above. Tap on the IP Information tab and make sure there is a valid IP address as shown in the figure labeled IP Information Tab, earlier in this chapter. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 211: Peap / Gtc Authentication Configuration
When first configuring and authenticating, do not validate the server certificate. This allows the user authentication to be tested. When user authentication is successful, return to this screen and validate the server certificate as shown later in this section MX5X Reference Guide E-EQ-MX5CERG-D...
Page 212: Figure 5-41 Cisco Wireless Network Login
Once authenticated, tap the IP Information tab. Figure 5-42 Cisco IP Information Tab If the network is set to use DHCP, the mobile device displays the IP address assigned by the DHCP server. Now go back and authenticate the server. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 213: Server Authentication
SSID, as shown in the figure above. Tap on the IP Information tab and make sure there is a valid IP address as shown in the figure labeled IP Information Tab in this section. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 214: Wpa/Leap
Start the Cisco ACU by tapping the icon on the desktop or navigate to Start | Programs | Cisco | ACU. Tap on the Profile tab. Tap the Rename button. Name the profile. Figure 5-45 Cisco Renaming Profile Tap the Edit . . . button. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 215 Tap the OK button and the Profiles tab is displayed again. Use the drop down box to choose the profile just configured. Tap OK. The mobile device associates and displays the sign on screen. Figure 5-47 Cisco Login Screen Tap the Status tab to display status. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 216: Eap-Tls Authentication Configuration
If the private key is present, the process is complete. If the private key is not present, import the private key. If there is no user certificate refer to User Certificates in this chapter, to acquire a user certificate and private key file. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 217: Setting Eap/Tls Parameters
With the client parameters configured (see Wireless Network Configuration) set the EAP type to TLS as shown. Figure 5-49 Cisco EAP/TLS Configuration Tap the Properties button. Figure 5-50 Cisco Authentication Settings Tap the Select button to choose the user certificate. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 218: Figure 5-51 Cisco Select Certificate
Tap the OK button to dismiss the configuration screens. When the client re-connects the user is authenticated with the user certificate. If the user does not authenticate, recheck the user certificate and the date on the computer. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 219: Validating The Server Certificate
Figure 5-53 Cisco Validate Server Tap OK to dismiss the configuration boxes. Figure 5-54 Cisco SSID Authenticated Once the authentication completes the status changes to show the mobile device has authenticated to <SSID> as shown above. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 220: Wpa Psk Configuration
Enter an ASCII network key in the text field. Hex keys do not work in the Microsoft Zero Config utility at this time. There is no server authentication when using WPA-PSK. Tap the OK button to complete the configuration. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 221: Symbol Client
By default, IPv6 is enabled and an IPv6 broadcast message is sent on power up. To disable IPv6, \Windows\ipv6Disable.reg perform warmboot. enable IPv6, \Windows\ipv6Enable.reg and perform a warmboot. Contact your LXE representative for ipv6Disable.reg and ipv6Enable.reg availability. Note: These utilities affect the behavior of the IPv6 on warmboot. After a coldboot, IPv6 is enabled. Wireless Information Tab...
Page 222: View Log
3. In the IEEE 802.1X Authentication box, enable 802.1X authentication 4. Select an EAP type. 5. Tap the Properties button. Validate Server is enabled by default. 6. At the Authentication Settings display, tap the Select button to choose a User Certificate. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 223: Certificates
Certificates Certificates Please refer to the LXE Security Primer to prepare the Authentication Server and Access Point for communication. It is important that all dates are correct on CE computers when using any type of certificate. Certificates are date sensitive and if the date is not correct authentication will fail.
Page 224 Figure 5-58 Download CA Certificate Save to Desktop Tap the Save button and save the certificate to the desktop PC. Keep track of the name and location of the certificate as the certificate file name and file location is required in later steps. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 225: Installing A Root Ca Certificate On The Mobile Device
Copy the certificate file from the desktop PC to the mobile device. Import the certificate by navigating to Start | Control Panel | Certificates. Figure 5-59 Certificate Stores Tap the Import button. Figure 5-60 Import Certificate From a File Make sure From a File is selected and tap OK. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 226: Figure 5-61 Browsing To Certificate Location
Using the Explorer buttons, browse to the location where you copied the certificate, select the certificate desired and tap OK. Tap Yes to import the certificate. Once the certificate is installed, return to the proper authentication section, described later in this chapter. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 227: User Certificates
Figure 5-62 Logon to Certificate Authority This process saves a user certificate and a separate private key file. CE devices such as the MX5X require the private key to be saved as a separate file rather than including the private key in the user certificate.
Page 228: Figure 5-64 Request A Certificate Type
Certificates Figure 5-64 Request a Certificate Type Tap on the advanced certificate request link. Figure 5-65 Advanced Certificate Request Screen Tap on the Create and submit a request to this CA link. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 229: Figure 5-66 Advanced Certificate Details
For the Certificate Template, select User. Check the Mark keys as exportable and the Export keys to file checkboxes. Type the full path on the local PC where the private key is to be copied. Also specify the private key filename. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 230: Figure 5-67 Script Warnings
If any script notifications occur, tap the Yes button to continue the certificate request. Figure 5-68 Script Warnings When prompted for the private key password: Tap None if you do not wish to use a password, or Enter and confirm your desired password then tap OK. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 231: Figure 5-69 User Certificate Issued
Be sure use the same name for the certificate file as was used for the private key file. For example, it the private key was saved as MX5USER.PVK then the certificate file created must be given the same name, for example, MX5USER.CER. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 232: Installing A User Certificate On The Mx5X (Wpa-Tls Only)
Certificates Installing a User Certificate on the MX5X (WPA-TLS Only) Copy the certificate and private key files to the mobile device. Import the certificate by navigating to Start | Control Panel | Certificates. Select My Certificates from the pull down list.
Page 233: Figure 5-73 Browsing To Certificate Location
Highlight the certificate you just imported and tap the View. . button. From the Field pull down menu, select Private Key. If the private key is present, the process is complete. If the private key is not present, import the private key. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 234: Figure 5-75 Browsing To Private Key Location
Make sure the certificate and private key file have the same name, for example mx5user.cer for the certificate and mx5user.pvk for the private key file. If the file names are not the same, rename the private key file and import it again. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 235 Certificates MX5X Reference Guide E-EQ-MX5CERG-D...
Page 236: Chapter 6 Applock
Introduction Note: LXE has made the assumption, in this chapter, that the first user to power up a new mobile device is the system administrator. LXE’s AppLock is designed to be run on LXE certified Windows CE based devices only. LXE loads the AppLock program as part of the LXE customer installation process.
Page 237: Setup A New Device
10. Press the Switch Key sequence to launch AppLock and lock the configured application(s). 11. The device is now in end-user mode. Note: LXE has made the assumption, in this appendix, that the first user to power up a new mobile device is the system administrator. Note: AppLock cannot support multiple windows of some applications.
Page 238 Setup a New Device Application Panel End User Switchpad Application – Launch Panel Security Panel Status Panel Figure 6-2 AppLock Panels E-EQ-MX5CERG-D MX5X Reference Guide...
Page 239: Administration Mode
If this type of application is being locked, the administrator should close all other applications before switching to end user mode to minimize the screen flicker. Windows accelerator keys such as Alt-F4 are disabled. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 240: Passwords
See Also: Appendix C – Reference Material, sections titled AppLock Error Messages and AppLock Registry Settings. AppLock Password Troubleshooting Can’t locate the password that has been set by the administrator? Enter this LXE back door key sequence: Ctrl+L Ctrl+X Ctrl+E...
Page 241: End-User Switching Technique
Misc | Touch Panel Disabled setting. Figure 6-3 Switchpad Menu A checkmark indicates applications currently active or available for Launching by the user. When Keyboard is selected, the MX5X default input method (Input Panel, Transcriber, or custom input method) is activated. Using a Stylus Tap When the mobile device enters end-user mode, a Switchpad icon (it looks like three tiny windows one above the other) is displayed in the taskbar.
Page 242: Multi-Application Configuration
Arguments Default is blank. Enter the command line parameters for the application in the Arguments text box. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 243 See following section titled Launch Button. Button Note: AppLock Administrator Control panel file Launch option does not inter- relate with similarly-named options contained in other LXE Control Panels. Global Key Default is Ctrl+Spc. Select the Global Key key sequence the end-user is to press when switching between applications.
Page 244: Launch Button
Launch Button Note: The Launch button may not be available in all versions of Multi-AppLock. Contact your LXE representative for assistance, downloads and AppLock update availability. When clicked, displays the Launch options panel for the Filename selected on the Administration panel.
Page 245: Auto Re-Launch
When Auto At Boot and Manual (Launch) are both disabled for a specific application, the application is 1) not placed on the list of approved applications for end-user manual launch and 2) never launched, and 3) not displayed on the Switchpad. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 246: Allow Close
This means that IEXPLORER.EXE should be specified in the Application text box and the internet application should be entered in the command line. In this case, do not check the Internet checkbox. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 247: Security Panel
SIP when configuring the key. However, when the hotkey is pressed to switch user modes, the normal key must be entered from the keypad; it cannot be entered from the SIP. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 248: Setting A Password In The Security Panel
Process Processing status shows the flow control of AppLock components and is mainly intended for LXE Customer Service when helping users troubleshoot problems with their AppLock program. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 249: Log
If the filename exists, the user is prompted whether the file should be overwritten. If the file does not exist, it is created. See Also: Appendix C – Reference Material, sections titled AppLock Error Messages and AppLock Registry Settings. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 250: Troubleshooting Applock
When the Administrator is selecting a hotkey sequence to use when switching user modes, they are not allowed to enter key combinations that are reserved by installed software applications. LXE has validated RFTerm key combinations ONLY. When RFTerm is installed on the mobile device and an RFTerm restricted key sequence is...
Page 251 Multi-Application Configuration MX5X Reference Guide E-EQ-MX5CERG-D...
Page 252: Appendixa Key Maps
Ctrl, Alt, Shft, Blue and Orange keys are sticky keys. Sticky keys do not need to be held down before pressing the next (or desired) key. It is valid to use combined modifiers on specific keys. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 253: Key Map 101-Key Equivalencies
Backlight must be toggled On. Once the backlight is off, the Blue key / Right Scan key sequence toggles the backlight on and at it’s brightest intensity. Both Scan keys are programmable. Before using as Scan key, make sure key has been programmed to Scan. See section titled “Programmable Buttons.”. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 254 Keypad Press These Keys and Then … To Get This Key / Function Press This Key Caps Blue Orange Ctrl Shft Lock Page Down Down Arrow E-EQ-MX5CERG-D MX5X Reference Guide...
Page 255 Keypad Press These Keys and Then … To Get This Key / Function Press This Key Caps Blue Orange Ctrl Shft Lock . (DOT) < > : (colon) MX5X Reference Guide E-EQ-MX5CERG-D...
Page 256 Keypad Press These Keys and Then … To Get This Key / Function Press This Key Caps Blue Orange Ctrl Shft Lock ; (semicolon) . (period) _ (underscore) , (comma) ‘ (apostrophe) ~ (tilde) “ & E-EQ-MX5CERG-D MX5X Reference Guide...
Page 257: Ibm Keypad Overlays
Please refer to the RFTerm Reference Guide for further information about 3270 key functions on the mobile device. Note: The MX5X device approved for use in Hazardous Locations has a blue keypad overlay with the same 3270 keymap markings as shown in this figure. 3270 Keypad...
Page 258 Please refer to the RFTerm Reference Guide for further information about 5250 key functions on the mobile device. Note: The MX5X device approved for use in Hazardous Locations has a blue keypad overlay with the same 5250 keymap markings as shown in this figure. E-EQ-MX5CERG-D...
Page 259: 5250 Keypad
FFwd Fast Forward Ctrl + F Not Supported Fld – Field Minus Ctrl + M Fld + Field Plus Ctrl + L Insert Ctrl + I New Line Ctrl + N SysReq System Ctrl + S MX5X Reference Guide E-EQ-MX5CERG-D...
Page 260: Appendixb Technical Specifications
In-Unit Chargeable or Externally 7.4V 2.8Ah Chargeable Backup Internal Nickel Metal Hydride Automatically charges from main battery (CMOS) (NiMH) during normal operation. Requires AC 5.7V max. power for re-charging. Memory operational for 24 hours when main battery is depleted E-EQ-MX5CERG-D MX5X Reference Guide...
Page 261: Display Specifications
Water and Dust IP67 Operating Humidity Up to 90% non-condensing at 140°F (60°C) Standards See Appendix B in the MX5X User’s Guide. Contamination Resistant to exposure to skin oil and other lubricants. Vibration Based on MIL Std 810F 8 KV air, 4kV direct contact Shock Multiple 2 meter (6.6’) drops to concrete.
Page 262: Network Card Specifications
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps RF Power Level: 18 dBm 64mW Max Channels 11 US, 13 Europe, 13 Japan Operating Temperature see MX5X Environmental Specs Storage Temperature see MX5X Environmental Specs Connectivity: Novell, TCP/IP, Ethernet, ODI Symbol Client 2.4GHz Type II Bus Interface: PCMCIA 2.0, Type II slot...
Page 263 Appendix B Technical Specifications MX5X Reference Guide E-EQ-MX5CERG-D...
Page 264: Appendixc Reference Material
Contents of this Appendix include: • AppLock – Single Application Configuration. • Includes information and instruction for an MX5X using AppLock to manage a single application. AppLock error messages and registry settings are also included. • MX5X Reference Guide Revision History and the following charts: •...
Page 265: Applock - Single Application Configuration
Access: | Settings | Control Panel | Administration icon LXE’s AppLock is designed to be run on LXE certified Windows CE .NET / CE based devices only. LXE loads the AppLock program as part of the LXE customer installation process.
Page 266: Setup A New Device
10. Press the hotkey sequence to launch AppLock and lock the configured application(s). 11. The device is now in end-user mode. Note: LXE has made the assumption, in this appendix, that the first user to power up a new mobile device is the system administrator. Note: AppLock cannot support multiple windows of some applications.
Page 267: End User Mode
To summarize, if an error occurs that prevents AppLock from switching to user mode, the password will not timeout and AppLock will wait until the correct password is entered. Password Troubleshooting Can’t locate the password that has been set by the administrator? Enter this LXE back door key sequence: Ctrl+L Ctrl+X Ctrl+E...
Page 268: Single Application Configuration
A mobile device running the Single Application version of AppLock becomes a dedicated, single application device. In other words, only the application or feature specified in the AppLock configuration by the Administrator is available to the user. Administrator Control Panels – Single Application E-EQ-MX5CERG-D MX5X Reference Guide...
Page 269: Control Panel
This means that IEXPLORER.EXE should be specified in the Application text box and the internet application should be entered in the command line. In this case, do not check the Internet checkbox. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 270: Security Panel
Password fields must match. Passwords are case sensitive. When the user exits the Administrator Control panel, the two passwords are compared to verify that they match. If they do not match, a dialog box is displayed notifying the user of the error. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 271: Status Panel
Process Processing status shows the flow control of AppLock components and is mainly intended for LXE Customer Service when helping users troubleshoot problems with their AppLock program. Extended Extended status provides more detailed information than that logged by Process Logging.
Page 272: Levels
When the ‘Save As’… button is selected, a standard ‘Save As’ dialog screen is displayed. Specify the path and filename. If the filename exists, the user is prompted whether the file should be overwritten. If the file does not exist, it is created. See Also: Error Messages E-EQ-MX5CERG-D MX5X Reference Guide...
Page 273: Applock Error Messages
AppLock system to reload. Converted Pwd Converted password from wide to mbs. LOG_EX Could not create event The keyboard filter uses this event at the Administrator LOG_ERROR EVT_HOTKEYCHG Control panel. The event could not be created. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 274 This message logs that the timer has expired and the processing is at the beginning of the timer function. Enter TaskbarScreenMode Entering the function that switches the screen to non-full LOG_PROCESSING screen mode and enable the taskbar. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 275 In addition to preventing the locked application from LOG_EX exiting, AppLock must also prevent the application from enabling the taskbar and resizing the application’s window. This message traps a change in the window size and corrects it. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 276 It the Administration key cannot be opened or if the AppName value is missing or empty, this error is logged. The other application information is not required. If the AppName value is not available, AppLock cannot switch into user mode. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 277 The taskbar is moved when switching into user mode. LOG_ERROR This prevents them from being visible if the application is exited and restarted by the timer. This error does not affect the screen mode switch; processing continues. MX5X Reference Guide E-EQ-MX5CERG-D...
Page 278: Applock Registry Settings
AppLock AppLock Registry Settings This system application runs at startup via the Launch feature of LXE Windows CE devices. When the launch feature is installed on the device, the following registry settings are created. The launch feature registry settings are embedded in the mobile device OS image: •...
Page 279: Valid Vk Codes For Ce
VK_F1 VK_MEDIA_PREV_TRACK VK_VOLUME_UP VK_F10 VK_MEDIA_STOP VK_ZOOM VK_F11 VK_MENU VK_F12 VK_MULTIPLY VK_F13 VK_NEXT VK_F14 VK_NOCONVERT VK_F15 VK_NONAME VK_F16 VK_NUMLOCK VK_F17 VK_NUMPAD0 VK_F18 VK_NUMPAD1 VK_F19 VK_NUMPAD2 VK_F2 VK_NUMPAD3 VK_F20 VK_NUMPAD4 VK_F21 VK_NUMPAD5 VK_F22 VK_NUMPAD6 VK_F23 VK_NUMPAD7 VK_F24 VK_NUMPAD8 MX5X Reference Guide E-EQ-MX5CERG-D...
Page 280: Ascii Control Codes
Data Link Escape Ctrl-p Device Control 1, normally XON Ctrl-q Device Control 2 Ctrl-r Device Control 3, normally XOFF Ctrl-s Device Control 4 Ctrl-t Negative AcKnowledge Ctrl-u SYNchronous idle Ctrl-v End Transmission Block Ctrl-w CANcel line Ctrl-x E-EQ-MX5CERG-D MX5X Reference Guide...
Page 281 VK_SHIFT (0x10) down WM_CHAR 0x36 down Record Separator WM_CHAR 0x36 up VK_SHIFT up VK_CONTROL up VK_CONTROL (0x11) down VK_SHIFT (0x10) down VK_PACKET (0xe7) down Unit Separator WM_CHAR 0x1f VK_PACKET (0xe7) up VK_SHIFT (0x10) up VK_CONTROL (0x11) up MX5X Reference Guide E-EQ-MX5CERG-D...
Page 282: Hat Encoding
¦ 0xA6 ~& 0x7F 0x80 § 0xA7 ~’ 0x81 ¨ 0xA8 0x82 © 0xA9 0x83 ª 0xAA 0x84 « 0xAB 0x85 ¬ 0xAC 0x86 (soft hyphen) 0xAD ~- (Dash) Hat Encoded Characters Hex 00 through AD E-EQ-MX5CERG-D MX5X Reference Guide...
Page 283 0xF8 Ð 0xD0 ù 0xF9 Ñ 0xD1 ú 0xFA Ò 0xD2 û 0xFB Ó 0xD3 ü 0xFC Ô 0xD4 ý 0xFD Õ 0xD5 þ 0xFE Ö 0xD6 ÿ 0xFF Hat Encoded Characters Hex AE through FF MX5X Reference Guide E-EQ-MX5CERG-D...
Page 284: Decimal - Hexadecimal Chart
0x23 0x4B 0x73 0x9B 0x24 0x4C 0x74 0x9C 0x25 0x4D 0x75 0x9D 0x26 0x4E 0x76 0x9E 0x27 0x4F 0x77 0x9F Decimal – Hexadecimal Chart (0 to 159 Decimal) The answer to Life, the Universe and Everything. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 285 0xBA 0xE2 0xBB 0xE3 0xBC 0xE4 0xBD 0xE5 0xBE 0xE6 0xBF 0xE7 0xC0 0xE8 0xC1 0xE9 0xC2 0xEA 0xC3 0xEB 0xC4 0xEC 0xC5 0xED 0xC6 0xEE 0xC7 0xEF Decimal – Hexadecimal Chart (160 to 255 Decimal) MX5X Reference Guide E-EQ-MX5CERG-D...
Page 286: Revision History
Summit client device. Entire Manual Changed “radio” to “wireless” or “client” in context, where applicable. Changed chapter cross-references to match Chapter number changes. Updated equipment figures to show new LXE logo on equipment. E-EQ-MX5CERG-D MX5X Reference Guide...
Page 287: Revision History
Revision B, Nov 2005 Entire Manual Added note (for backward compatibility) to all references to “Bluetooth”: Note Bluetooth access, modules and Bluetooth Manager are not supported by LXE. Chapter 1 – Added explanatory note to “Tapping the Touchscreen with a Stylus” Introduction right mouse click function.
Page 288 Revision History E-EQ-MX5CERG-D MX5X Reference Guide...
Page 289: Index
Alt key function ............48 Battery Auto Turn Off ..........79 API calls ..............105 Battery Chargers ............56 API.CAB ...............104 Battery Charging LED location .......16 Application Panel ..........225 Battery Life AppLock ..............24 Approximate ............54 EUIE ..............229 Battery status LED explanation .......55 Passwords............223 E-EQ-MX5CERG-D MX5X Reference Guide...
Page 290 Root CA ............206 Current Time ............77 User..............210 Custom ID parameters ...........148 Certificates are date sensitive ......153, 186 Custom identifiers..........138 Change the MX5X Time and Date ......36 Custom IDs............148 Change virtual keys ..........136 Custom Parameter Option........164 Character Recognition Customize dates, times, currency ......92 Touch screen ............70...
Page 291 Flash Cards My Documents............64 Install and remove..........38 Recycle Bin............64 Flash Specifications..........34 Start..............64 Folders Transcriber ............64 copied at startup ..........65 Wireless Client Setup..........64 My Computer ............65 Idle Time ..............79 My Device............66 IEC IP65 ..............244 Function IEC IP67 ..............7 E-EQ-MX5CERG-D MX5X Reference Guide...
Page 292 Important Battery Information........2 LXE Security Primer ........153, 206 Inbox LXE_MX5X..............63 Outlook ...............69 LXE_MX5X_ENABLER.CAB......115 Increase or Decrease Keypad and Display Backlight LXEbook – MX5X Users Guide ......25 Intensity ...............22 Indicators LEDs ..............46 Infrared (IR) port, described ........43 Main..............93, 131 Input Panel...............84 Main Battery Install ActiveSync on Desktop or Laptop....107...
Page 293 Scanner LED, functioning ........27 Scanner range ............41 Scanner, factory defaults ........131 Scanning and data entry...........27 Quick Start Instructions ..........8 Schemes tab .............91 SCU Help...............154 SE1223, SE1224 or SE2223 ........36 Security options, supported ........153 Rate................86 Security Panel E-EQ-MX5CERG-D MX5X Reference Guide...
Page 294 Symbol Network Card specifications ....245 Soft Keyboard............84 Symbology settings........138, 140 Soft keypad, virtual keyboard........28 Sync Clock for Enabler..........123 Software and Files ...........61 Synchronizing from the MX5X .......68 Software Load ............62 System Configuration ..........61 Space key function...........48 System Hardware Configuration ......33 Speaker ..............51 System Requirements, WPA .........186...
Page 295 WPA LEAP Authentication, Summit ....179 Volume WPA PSK Authentication, Summit.......180 adjust audio volume ........51, 52 WPA PSK Configuration........203 adjustments ............23 WZC icon ..............155 Wake the device from Suspend .......64 Zero Config Utility, Microsoft ......188 Warm Reset .............36 Warning E-EQ-MX5CERG-D MX5X Reference Guide...
Page 296 Index MX5X Reference Guide E-EQ-MX5CERG-D...

LXE MX5X Reference Manual

Chapter 1 Introduction

Overview

When to Use this Guide

Document Conventions

Identify Your Device

MX5X Features

Upgrading an MX5X to CE 5.0

MX5X Hazardous Location Device

Getting Started

Setup the Client and Network

Access Terminal Emulation Parameters

Saving Settings

Components

Power Key

Assembly

How to

Enter Data

Getting Help

Chapter 2 Physical Description and Layout

Hardware Configuration

Power Key

PCMCIA and Flash Cards

COM Ports

Programmable Buttons

Power Modes

The Keypad

Accessing Files on the Compact Flash Card

Touchscreen

Display and Keypad Backlight Timer

Cleaning the Glass Display/Scanner Aperture

Speaker

Power Supply

Battery Chargers

Cradles

Chapter 3 System Configuration

Introduction

Windows Operating System

2.4 Ghz Network Configuration

Installed Software

Optional

Desktop

Start Menu Program Options

Control Panel Options

Compact Flash Cards, CAB Files and Programs

Bluetooth Manager (CE .NET 4.2 Only)

API Calls

Activesync / Get Connected Process

Irescue

Wavelink Avalanche Enabler Configuration

Quick Links

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LXE MX5X

Summary of Contents for LXE MX5X
