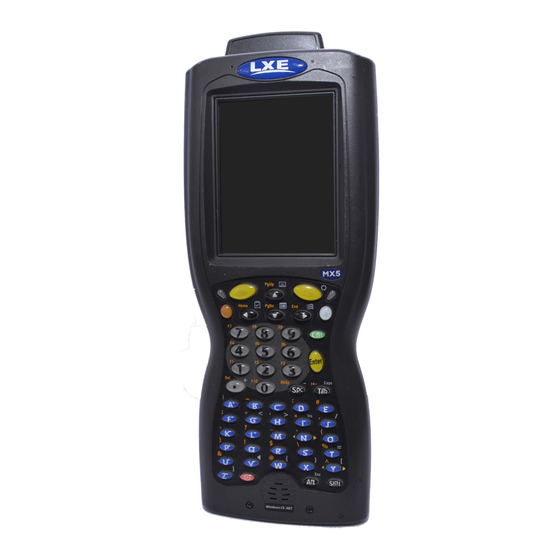

LXE MX5 User Manual
Intrinsically safe for use in hazardous locations
Hide thumbs
Also See for MX5:
- Reference manual (144 pages) ,
- User manual (68 pages) ,
- Installation instructions manual (6 pages)
Related Manuals for LXE MX5
Summary of Contents for LXE MX5

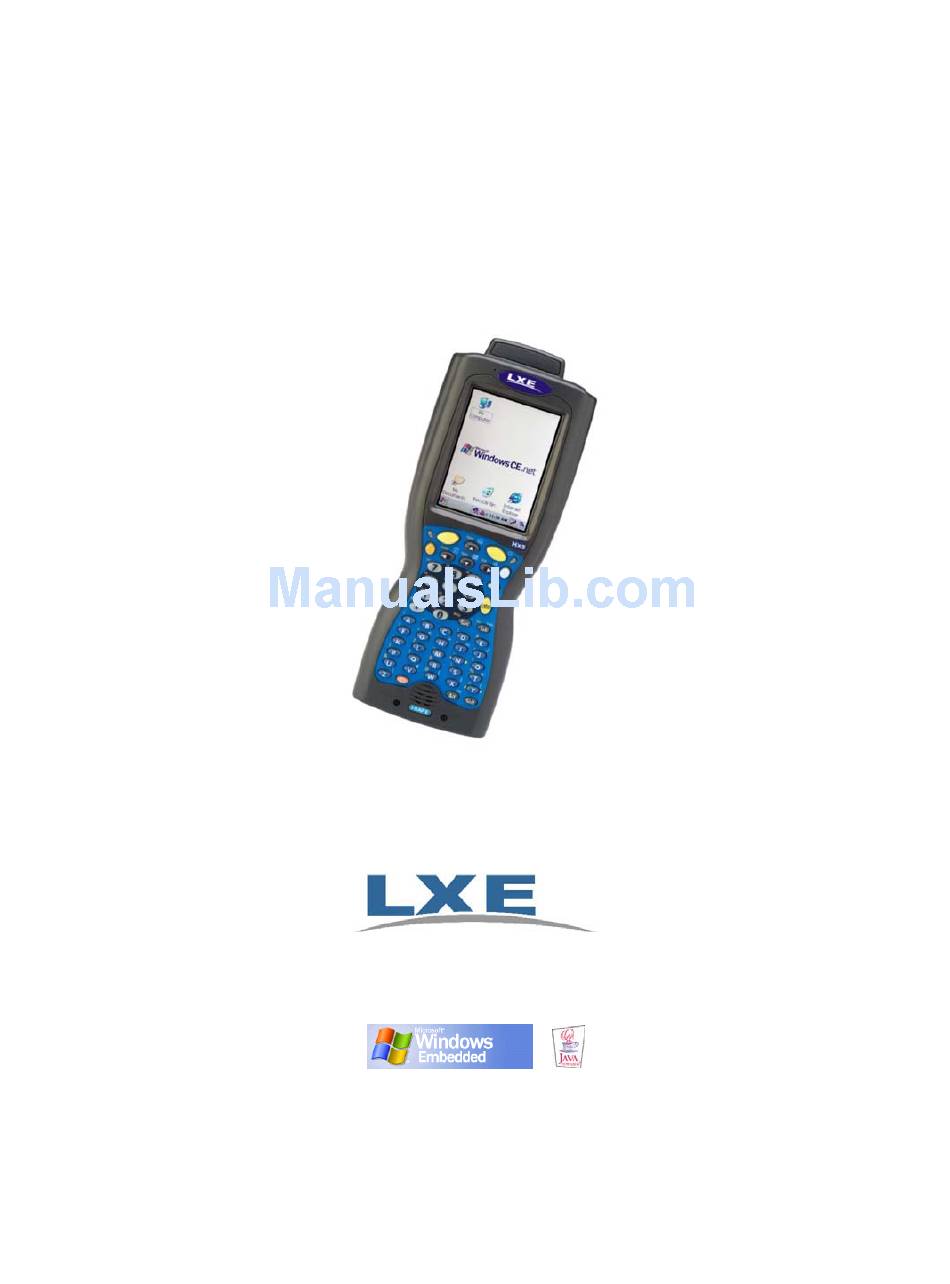

- Page 1 MX5 Intrinsically Safe User’s Guide ® ® (Microsoft Windows CE .NET 4.2 / CE 5.0 Equipped) (MX5-IS For Use in Hazardous Locations) Copyright © 2007 by LXE Inc. All Rights Reserved E-EQ-MX5ISOGWW-D...
- Page 2 Java® and Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. or other countries, and are used under license. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LXE, Inc. is under license.
-
Page 3: Revision Notice
Safety Information Entire Manual Changed MX5 CE .NET Guide titles to MX5X Guide titles. Changed name of MX5 CE .NET device to MX5X where applicable. DocID did not change. Added Windows CE 5.0 information or instruction where applicable. Revision Notice... -
Page 5: Table Of Contents
NTRODUCTION Overview ... 1 Identify Your Device ... 2 Features ... 3 Using an MX5-IS in a Hazardous Location... 4 MX5-IS Environmental Specifications ... 4 Read Before Use ... 4 Document Conventions... 5 MX5 Environmental Specifications ... 5 Laser Warnings and Labels ... 6 Quick Start... - Page 6 Battery Chargers... 42 Charge Battery in LXE MX5 Multi-Charger ... 42 LXE MX5 Multi-Charger (Optional)... 42 Cradles... 43 Tethered Barcode Scanner Data Entry Using the MX5 Cradle... 43 PPENDIX Keypad ... 45 Key Map 101-Key Equivalencies ... 46 MX5 Intrinsically Safe User’s Guide...
- Page 7 Figure 1 MX5 Handheld Devices ...2 Figure 2 CDRH / IEC 825 Caution Label Location – Back ...6 Figure 3 Caution Label - Scanner ...6 Figure 4 Front of MX5 Intrinsically Safe Device ...9 Figure 5 Scan Aperture and Audio Jack ...10 Figure 6 Ports...10 Figure 7 Back w/Optional Handle or Hand Strap ...11...
- Page 8 Table of Contents MX5 Intrinsically Safe User’s Guide E-EQ-MX5ISOGWW-D...
-
Page 9: Introduction
Important: Until the main battery and backup battery are completely depleted, the MX5-IS is always drawing power from the batteries (On). The MX5-IS is to be used with the LXE power supply (LXE P/N MX5A305PSACUS / MX5A305PSACWW). E-EQ-MX5ISOGWW-D Introduction... -
Page 10: Identify Your Device
MX5 PPC User’s Guide MX5 PPC Reference Guide LXEbook -- MX5 PPC User’s Guide The following guides are interchangeable for MX5X and MX5-IS devices (except where noted in the guides): • MX5 Cradle Reference Guide • MX5 Multi-charger Reference Guide •... -
Page 11: Features
Features New features affect user interaction and internal operation of the MX5X. The MX5-IS is an MX5X that has been designed specifically for use in Hazardous Locations. The appropriate wireless client utility for your device configuration has been pre-installed by LXE and the utility icon is displayed on the desktop. -
Page 12: Using An Mx5-Is In A Hazardous Location
Using an MX5-IS in a Hazardous Location MX5-IS Environmental Specifications Operating Temperature Storage Temperature Rating Operating Humidity Vibration Read Before Use DO NOT USE THIS UNIT IN CLASSIFIED AREAS UNSUITABLE FOR ITS SAFETY CSA C22.2 No. 213-M1987 Non-Incendive Electrical Equipment for Use in Class I, Division 2... -
Page 13: Document Conventions
Vibration If the MX5-IS has a dead main battery and is as cold as the extended operating temperature’s lowest value, the unit must be warmed to above –20°C (-4°F) before installing a new main battery pack and pressing the On button. -
Page 14: Laser Warnings And Labels
Do not remove the laser caution labels from the mobile device. • Do not connect the laser barcode window to any other device. The laser barcode window is certified for use with the MX5-IS only. Laser radiation when open. Please read the caution labels. Caution: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. -
Page 15: Quick Start
In general, the sequence of events is: Windows CE .NET 4.2 1. Insert a fully charged battery. (Always put a fully charged battery in the MX5-IS at the beginning of the shift or workday.) 2. Connect an external power source to the unit (if available). -
Page 16: Start-Up Troubleshooting
SE1223, SE1224 or SE2223 scan engine. Important Battery Information Important: If the main battery has been out of the MX5-IS for an extended period of time or becomes fully discharged or dead, a fully charged backup battery will last for up to 24 hours. -
Page 17: Components
Components Scanner Housing Microphone Touchscreen E-EQ-MX5ISOGWW-D Figure 4 Front of MX5 Intrinsically Safe Device Keypad Power Key Speaker MX5 Intrinsically Safe User’s Guide... -
Page 18: Figure 5 Scan Aperture And Audio Jack
AC Power Connection COM 3 -- IR Port Note: Do not connect AC/DC power cables or tethered scanners to the ports when the MX5-IS is in a hazardous location. MX5 Intrinsically Safe User’s Guide Figure 5 Scan Aperture and Audio Jack... -
Page 19: Figure 7 Back W/Optional Handle Or Hand Strap
Scanner Stylus and Stylus Pocket Trigger Handle E-EQ-MX5ISOGWW-D Figure 7 Back w/Optional Handle or Hand Strap Trigger Battery Fastener Main Battery MX5 Intrinsically Safe User’s Guide... -
Page 20: Figure 8 Handle (Optional)
Scan Aperture Trigger MX5 Intrinsically Safe User’s Guide Figure 8 Handle (Optional) Handle E-EQ-MX5ISOGWW-D... -
Page 21: Insert Main Battery
Insert Main Battery Do not remove or install a main battery pack when the MX5-IS is in a Hazardous Location. The Battery Compartment is located at the bottom of the back of the computer. The fasteners in the main battery Pack are connected to the Battery Pack. Press the Power key after the battery is... -
Page 22: Power Key
A warm reset does not affect the operating system and no data loss occurs. Cold Reset Hold down the Power key, the Blue key and the Orange keys for 4+ seconds. The MX5-IS will power off, release the keys and the device will power on again. -
Page 23: Connect External Power Supply
Do not connect the Audio Jack when the MX5-IS is in a Hazardous Location. The MX5-IS audio jack is located on the top of the unit next to the scan aperture. The internal speaker is disabled when the audio jack is connected. Insert the barrel end of the connector into the MX5-iS audio jack and push in firmly. -
Page 24: Install Pistol Grip Handle (Optional)
With the handle installed the Scan key on the keypad remains active. The trigger duplicates the function of the Scan key. The handle is built of a durable and flexible plastic that will not detach from the MX5-IS if the unit is dropped. -
Page 25: Install Handstrap (Optional)
MX5. Insure that both ends of the bottom assembly are securely installed. 5. After securing the bottom of the strap to the MX5, loosen the closed loop fastener strap and then secure the upper bracket to the unit with the screws provided. -
Page 26: Tapping The Touchscreen With A Stylus
MX5-IS when the stylus is not in use. In the same manner as using a mouse to left-click icons on a desktop/laptop computer screen, using the stylus to tap icons on the MX5-IS display is the basic action that can: • Open applications •... -
Page 27: Entering The Multi Applock Activation Key
A checkmark indicates applications currently active or available for Launching by the user. Previous versions used the program icon to indicate the same function. When Keyboard is selected, the MX5-IS default input method (Input Panel, Transcriber, or custom input method) is activated. -
Page 28: Toggle The Display And Keypad Backlight On And Off
| Settings | Control Panel | Display | Backlight tab. Change the parameter values and tap OK to save the changes. The first option affects the MX5-IS when it is running on battery power only. The second option affects the MX5-IS when it is running on external power (e.g. AC adapter, powered cradle). The backlight will remain on all the time when both checkboxes are blank. -
Page 29: Set The Mx5-Is Power Schemes Timers
Use this option when the MX5-IS will be running on battery power only. Switch state to Suspend: AC Power Scheme Use this option when the MX5-IS will be running on external power (e.g. AC adapter, powered cradle). Switch state to Suspend:... -
Page 30: Set The Audio / Speaker Volume
An application may override the control of the speaker volume. Turning off sounds saves power and prolongs battery life. The audio volume can be adjusted to a comfortable level for the user. The MX5-IS has an internal speaker and a jack for an external headset. -
Page 31: Troubleshooting Volume Adjust
<Shift+Blue+Shift> puts the unit in ‘Blue’ Mode which, when followed by <V>, puts the unit in ‘Volume Adjust’ mode as well. If the MX5-IS is responding to touch input, but does not respond to keypad (hard or soft) input, the MX5-IS may still be in Volume Adjust mode. -
Page 32: Enter Data
The keypad is used to manually input data that is not collected otherwise. Almost any function that a full sized computer keyboard can provide is duplicated on the MX5-IS keypad but it may take a few more keystrokes to accomplish a keyed task. Please refer to Appendix A - Key Maps for instruction on the specific keypresses to access all keypad functions. -
Page 33: Scanner Entry
Align the red beam so that the barcode is centered within the beam. The laser beam must cross the entire barcode. Move the MX5-IS towards or away from the barcode so that the barcode takes up approximately two-thirds the width of the beam. -
Page 34: Input Panel - Virtual Keyboard
ActiveSync (running on the desktop computer) will not transfer files over the RS-232 connector on the MX5 cradle IF the scanner port is configured for COM 1 External. Refer to ActiveSync Processes in Chapter 3 of the MX5X Reference Guide. -
Page 35: Getting Help
Getting Help All LXE manuals are now available on one CD and they can also be viewed/downloaded from the LXE ServicePass website. Contact your LXE representative to obtain the LXE Manuals CD. You can also get help from LXE by calling the telephone numbers listed on the LXE Manuals CD, in the file titled Contacting LXE. -
Page 36: Accessories
Accessories Note: Items with a Green letter R in the first column are ROHS-compliant. Please contact your LXE representative when ordering ROHS-compliant items as the part number may have changed. Items without the letter R may have received ROHS-compliance after this guide was published. -
Page 37: Revision History
“Entering the Multi AppLock Activation Key”. Added the following note: Bluetooth access, modules and Bluetooth Manager are not supported by LXE. • Getting Help - Manuals: Noted obsolescence of MX5 PPC device. Updated Accessories. Included ROHS information. Updated “Install Handstrap (Optional)”. Added “Revision History”. - Page 38 Getting Help MX5 Intrinsically Safe User’s Guide E-EQ-MX5ISOGWW-D...
-
Page 39: Mx5-Is Hand Held Computer
Suspend state. See the section titled Set the Display / Keypad Backlight Timer in the previous section Quick Start. E-EQ-MX5ISOGWW-D Figure 22 Touchscreen MX5 Intrinsically Safe User’s Guide... -
Page 40: Touchscreen Calibration
Touchscreen Calibration If the MX5-IS is not responding properly to pen touch taps, the touchscreen may need to be recalibrated. Contact your System Administrator for assistance. To recalibrate the touchscreen, tap the Figure 23 Stylus Properties / Calibration Start / Calibration Begin To start, tap Recalibrate. -
Page 41: Programmable Buttons
The default setting for the right button is Enter. The default setting for the left button is Enter. When the MX5-IS does not have an integrated scanner, both buttons default to Enter keys and the Scan selection is greyed out. The buttons can be programmed to perform other functions when there is no internal scanner. -
Page 42: Com Ports
COM Ports COM 1 port is always the left port on the base of the MX5-IS when the MX5-IS is face up. COM 1 port accepts RS-232, USB, Ethernet and AC power connection. The RS-232 port on the docking cradle is ‘connected’ to the MX5-IS when a tethered scanner is connected to the RS-232 port on the MX5 cradle, and the MX5-IS is in the cradle. -
Page 43: Usb Port
The serial port/USB port also supports serial data transfer (using a null modem cable) and USB I/O at 1.5 Mbps. The MX5-IS automatically detects the cable configuration. Host and client is automatically configured based on the type of cable used. Refer to section titled Accessories in this guide for part numbers for the DB26-USB cable and the null modem cable. -
Page 44: The Keypad
Figure 27 The ANSI / Batch Keypad Overlay Scanner Active LED Left and Right Scan Blue and Orange 2 Ctrl Enter The keymaps (keypress sequences) are located in Appendix A - Key Maps. MX5 Intrinsically Safe User’s Guide Function Key Power Key Shift E-EQ-MX5ISOGWW-D... -
Page 45: Scan Key Function
Using the 2 key only stays active for one keystroke. Each time you need to use the 2 key. To cancel a 2 key again. key activates the second key function. function before pressing MX5 Intrinsically Safe User’s Guide... -
Page 46: Spc Key Function
See Appendix A – Key Maps for key maps for all keypads. Accessing Files on the CompactFlash Card Double tap My Computer then select System. Files stored on the CompactFlash (CF) card are listed. MX5 Intrinsically Safe User’s Guide E-EQ-MX5ISOGWW-D... -
Page 47: External Power Supply For Mx5-Is And Cradles
The MX5-IS DC adapter can be plugged into either of the D26 pin connectors on the bottom of the MX5-IS. The cradle power jack is located on the back of the cradle. The MX5-IS is to be used with a power supply. -
Page 48: Main Battery
LXE MX5 Multi-charger or MX5-IS unit. The fasteners are connected to the main battery pack and remain with the Battery Pack through it’s life cycle. Contact your LXE representative if the fasteners must be replaced for any reason. -
Page 49: Checking Battery Status
If the status is shown as Very Low, charge or replace the battery immediately. For best results, it is recommended that the MX5-IS use external power whenever available. Charge the main battery pack in the MX5-IS at the end of each work day. -
Page 50: Battery Chargers
Note: The main battery can also be charged in the secondary battery charging pocket in the Desktop cradles. An MX5-IS does not need to be in the cradle at the time the secondary charging pocket is being used. LXE MX5 Multi-Charger (Optional) The main battery pack can be charged in the LXE MX5 Multi-Charger. -
Page 51: Cradles
The cradles are not designed to secure an MX5-IS with a protective padded case. The vehicle cradle is not designed to secure an MX5-IS with a trigger handle. The desktop cradles will secure mobile device’s with handstraps or trigger handles. - Page 52 Cradles MX5 Intrinsically Safe User’s Guide E-EQ-MX5ISOGWW-D...
-
Page 53: Appendixa Key Maps
Ctrl, Alt, Shft, Blue and Orange keys are sticky keys. They do not need to be held down before pressing the next (or desired) key. It is valid to use combined modifiers on specific keys. E-EQ-MX5ISOGWW-D Appendix A Key Maps Figure 32 ANSI / Batch Keypad function keys. MX5 Intrinsically Safe User’s Guide... -
Page 54: Key Map 101-Key Equivalencies
Note: This key mapping is used on hand held computers that are NOT running an LXE Terminal Emulator. When using a sequence of keys that includes the Orange or Blue keys, press the color key first then the rest of the key sequence. - Page 55 Page Up Page Down E-EQ-MX5ISOGWW-D Press These Keys and Then … Blue Orange Ctrl Press This Key Caps Shft Lock Up Arrow Down Arrow Right Arrow Left Arrow Left Arrow Right Arrow Up Arrow Down Arrow MX5 Intrinsically Safe User’s Guide...
- Page 56 To Get This Key / Function MX5 Intrinsically Safe User’s Guide Press These Keys and Then … Blue Orange Ctrl Press This Key Caps Shft Lock E-EQ-MX5ISOGWW-D...
- Page 57 To Get This Key / Function . (DOT) < > E-EQ-MX5ISOGWW-D Press These Keys and Then … Blue Orange Ctrl Press This Key Caps Shft Lock MX5 Intrinsically Safe User’s Guide...
- Page 58 To Get This Key / Function : (colon) ; (semicolon) . (period) _ (underscore) , (comma) ‘ (apostrophe) ~ (tilde) “ & MX5 Intrinsically Safe User’s Guide Press These Keys and Then … Blue Orange Ctrl Press This Key Caps Shft Lock E-EQ-MX5ISOGWW-D...
-
Page 59: 3270 Keypad
Please refer to the RFTerm Reference Guide for further information about 3270 key functions on the mobile device. Note: The MX5-IS device approved for use in Hazardous Locations has a blue keypad overlay with markings as shown in this figure. See section titled Using... -
Page 60: 5250 Keypad
Fld + ...Field Plus ... Ctrl + L Ins ...Insert ... Ctrl + I NL...New Line... Ctrl + N SysReq...System ... Ctrl + S MX5 Intrinsically Safe User’s Guide Please refer to the RFTerm Reference Guide for further information about 5250 key functions on the mobile device. -
Page 61: Appendixb Regulatory Notices And Safety Information
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this device not expressly approved by LXE, Inc., could void the user’s authority to operate this equipment. EMC Directive Requirements: This is a Class B product. - Page 62 Li-Ion Battery When disposing of the MX5-IS main battery, the following precautions should be observed: The battery should be disposed of promptly. The battery should not be disassembled or crushed. The battery should not be heated above 212°F (100°C) or incinerated.
-
Page 63: Mx5 I-Safe Approvals/Standards
Electronic Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this product can be recycled, reclaimed and re-used when properly discarded. Do not discard labeled units with trash. For information about proper disposal, contact LXE through your local sales representative, or visit www lxe com. - Page 64 Radio: EN 300 328-1 and -2: 2000-7 Safety: EN 60950-1: 2001 We, LXE Inc., declare that the equipment specified above complies with all Essential Health and Safety Requirements of the above Directives and Standards, as amended. Place Date of issue LXE Inc.
- Page 65 The LXE 4830 can be equipped with external antennas. The antennas listed have been evaluated with the LXE 4830 pursuant to EN 300 328, and therefore meet the definition of ‘dedicated antenna’ per ERC/REC 70-03 Appendix 1 Table 3; thus the requirement set forth in ERC/REC 70-03 , Annex 3 are met by the LXE model 4830 transceiver.
- Page 66 EN 300 328-1 and -2: 2000-7 Safety: EN 60950-2: 1992 + A1..A4 We, LXE Inc., declare that the equipment specified above complies with all Essential Health and Safety Requirements of the above Directives and Standards, as amended. Place Date of issue LXE Inc.
- Page 67 The LXE 6726 can be equipped with external antennas. The antennas listed have been evaluated with the LXE 6726 pursuant to ETSI EN 300 328, and therefore meet the definition of ‘dedicated antenna’ per ERC/REC 70-03 Appendix 1 Table 3; thus the requirement set forth in ERC/REC 70-03 , Annex 3 are met by the LXE model 6726 transceiver.
- Page 68 Safety Standard: EN60950-1: 2001 The product carries the CE Mark: We, LXE Inc., declare that the equipment specified above complies with all Essential Health and Safety Requirements of the above Directives and Standards, as amended. Date of issue: June 18, 2003 LXE Inc.
- Page 69 The LXE 6816 can be equipped with external antennas. The antennas listed have been assessed with the LXE 6816 pursuant to EN 300 328, and therefore meet the definition of ‘dedicated antenna’. The table below lists the maximum output power setting for the radio module in order to result in a total EIRP of 100mW or less.
-
Page 70: Declaration Of Conformity
EN 300 328-1 and -2: 2000-7 The product carries the CE Mark: We, LXE Inc., declare that the equipment specified above complies with all Essential Health and Safety Requirements of the above Directives and Standards, as amended. Date of issue: July 30, 2006 MX5 Intrinsically Safe User’s Guide... - Page 71 A/C Power Supply Safety Statement – MX5-IS Output Rated 12 VDC, 3.75 A. Optional A/C Power Supply: Outside North America, this unit is intended for use with an IEC certified ITE power supply with output rated as stated at the top of this page. (US) Alimentation c.a.
-
Page 72: Laser Light Safety Statement
Este producto usa luz de láser. Las etiquetas se proveen en la máquina exploradora. Por favor, lea detenidamente la explicación para las precauciones. (ES) Waarschuwing: Dit product gebruikt laserlicht. Een van de volgende labels is op de scanner aangebracht. Lees a.u.b. de waarschuwing onder Oppassen. (NL) MX5 Intrinsically Safe User’s Guide E-EQ-MX5ISOGWW-D... - Page 73 Aþaðýdaki etiketlerden bir tanesi tarayýcýnýn üstünde saðlanýr. Lütfen Dikkat ifadesini okuyun. (TR) (CN) E-EQ-MX5ISOGWW-D (KR) Legend: Chinese-CN; Danish-DK; Dutch-NL; English-US; Finnish- FI; French-FR; German-DE; Greek-GR; Italian-IT; Japanese-JP; Korean-KR; Norwegian-NO; Portuguese-PT; Spanish-ES; Swedish-SE; Turkish-TR (GR) (JP) MX5 Intrinsically Safe User’s Guide...
- Page 74 Appendix B Regulatory Notices and Safety Information Laser Light Labels - MX5-IS Hand Held Computer Class 2 MX5 Intrinsically Safe User’s Guide E-EQ-MX5ISOGWW-D...
-
Page 75: Index
Desktop...7 Desktop cradle ...43 Display Features...31 Pixels...31 Display Cleaning ...32 Display, Backlight ...31 electrostatic discharge...7 End user switching Touch ...19 Enhanced Desktop Cradle ...43 Enhanced Desktop Cradle with Ethernet Port ...43 Enter key function ...37 MX5 Intrinsically Safe User’s Guide... - Page 76 ...26 Insert Battery, How to ...13 IR operating envelope...35 IR Port bi-directional half-duplex...35 Keymaps ...45 Keypad MX5 Intrinsically Safe User’s Guide described ...36 Keypad and entering data ...24 Keypad Shortcuts...18 Laser labels Class 2...66 Battery status...41 Li-Ion battery life...39 Lithium Ion battery warning...8...
- Page 77 Touchscreen and the stylus...18 USB port...35 Vehicle Mount Cradle...43 View Display ...31 View File Properties ...18 Virtual keyboard Input panel ...26 Volume adjust audio volume ...22 Warm reset...14 Warnings and Labels Laser Scanner...6 WEDGE checkbox ...34 MX5 Intrinsically Safe User’s Guide...
- Page 78 Index MX5 Intrinsically Safe User’s Guide E-EQ-MX5ISOGWW-D...
