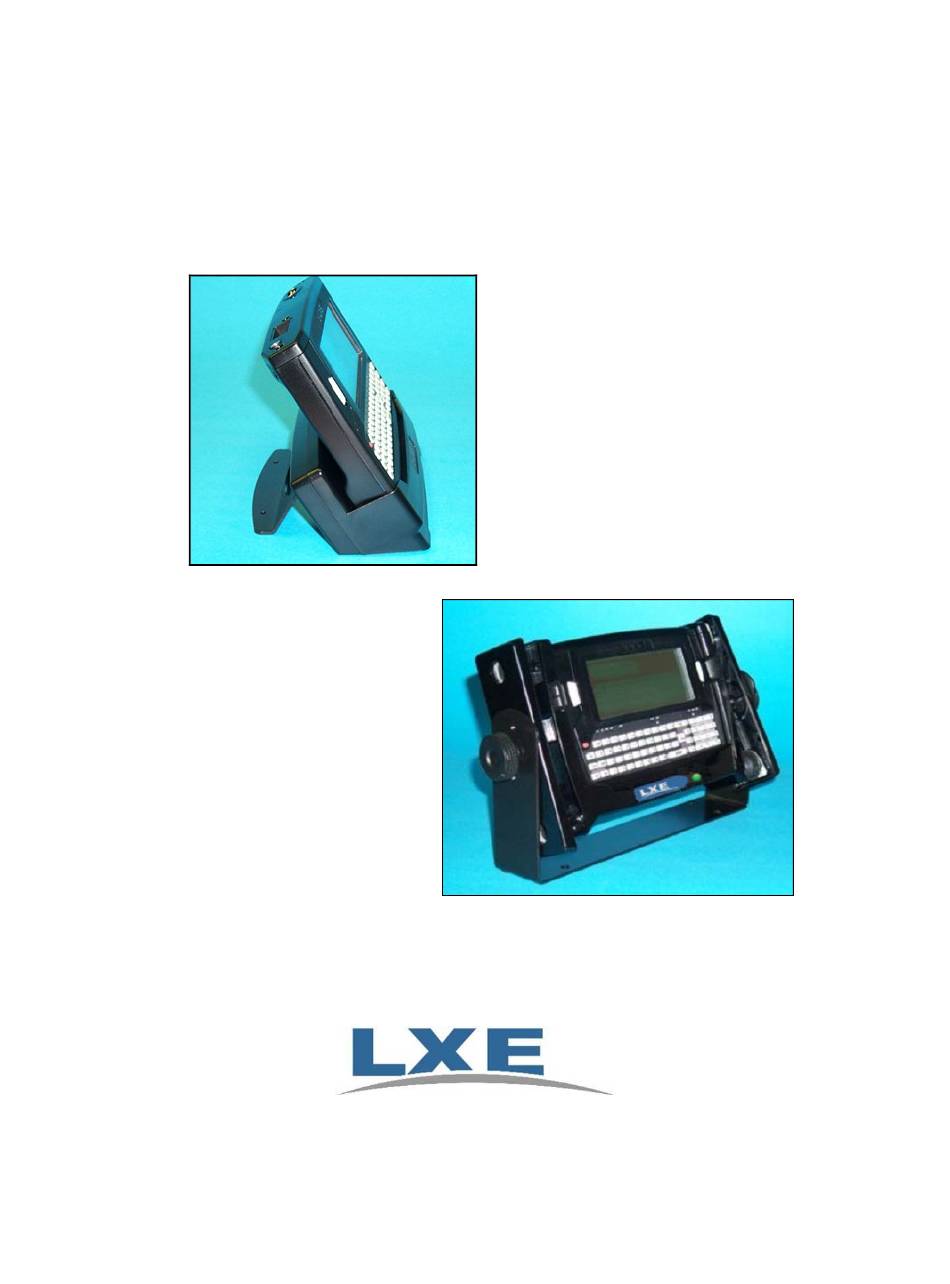

- Page 1 MX3 Cradle Reference Guide IMPORTANT NOTICE – This user guide is obsolete. The cradle is still in use. Please refer to the [device specific] cradle reference guide. Copyright © 2010 by LXE Inc. All Rights Reserved E-EQ-MX3DKRG-J-ARC...
- Page 2 Notices LXE Inc. reserves the right to make improvements or changes in the products described in this guide at any time without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, LXE assumes no liability resulting from any errors or omissions in this document, or from the use of the information contained herein.
-
Page 3: Table Of Contents
Table of Contents MX3 C RADLES Introduction ....................... 1 Identify Your MX3 Device ..................2 Quick Start Installation..................... 3 Desk Top Cradle ........................3 Powered Vehicle Mount Cradle ....................3 U-Bracket ..........................3 RAM Ball Assembly ......................3 Desk Top Cradle......................4 Desk Top Cradle Footprint .......................4 Status LED..........................5 Power Connector ........................5 RS-232 Connector ........................6... - Page 4 Table of Contents PPENDIX EGULATORY OTICES AND AFETY NFORMATION Cradle Approvals ...................... 1 PPENDIX BSOLETE QUIPMENT Obsolete Devices ...................... 5 MX3-RFID Device, MX3P Device and the Passive Vehicle Cradle ........5 Passive Vehicle Mount Cradle ....................5 Passive Cradle Assembly Components ..................7 RAM Mount Assembly......................8 Connect External Power Supply to the MX3-RFID and MX3P ..........9 MX3P Specific Power Accessories..................9...
- Page 5 Introduction Illustrations Figure 1 Identify Your MX3 Mobile Device and Compatible Cradles..............2 Figure 2 Desk Top Cradle............................4 Figure 3 Desk Top Cradle Footprint........................4 Figure 4 Desk Top Cradle Status Indicator......................5 Figure 5 Desk Top Cradle Power Connector .......................5 Figure 6 Desk Top Cradle RS-232 Connector .....................6 Figure 7 RS-232 Connector ..........................6 Figure 8 RS-232 Pinout ............................6 Figure 9 Desktop Cradle AC Power Supply ......................7...
- Page 6 Table of Contents MX3 Cradle Reference Guide E-EQ-MX3DKRG-J-ARC...
-
Page 7: Mx3 Cradles
Main Battery. The mobile device can be either on or off while in the cradle. Cables are available from LXE for connecting the cradle to a printer, a desktop PC or laptop, or a barcode printer. Tethered scanners (for RS-232 serial port connection) are also available from LXE. -
Page 8: Identify Your Mx3 Device

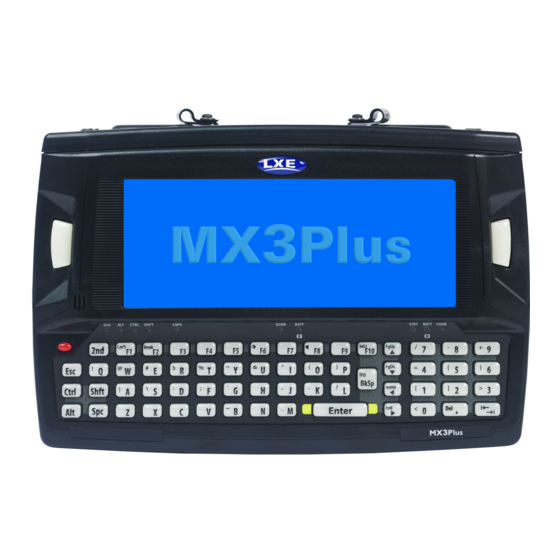

Identify Your MX3 Device Identify Your MX3 Device The mobile device must have a main battery (MX3A378BATT) installed when it is docked in a cradle. MX3X MX3Plus Windows CE .NET 4.2 Windows CE 5 Windows CE 5 Device Battery Cradle MX3X MX3A378BATT MX3002DSKCRDL... -
Page 9: Quick Start Installation
3. The desktop cradle can be mounted to a flat surface, using the mounting holes in the desktop cradle bracket. LXE does not supply the mounting hardware. 4. If required, connect the AC/DC power supply to the cradle. The LED indicator on the front of the powered cradle will illuminate orange. -
Page 10: Desk Top Cradle
Figure 2 Desk Top Cradle You will need a torque wrench capable of torquing at 6±1 IN/LB when assembling the cradle components. LXE does not supply the tools (torque wrench, screwdrivers) required for assembly. How To Attach the bracket to the back of the Desk Top cradle, torquing both screws to 6 in/lbs. -
Page 11: Status Led
The Power connector is located on the back of the cradle. The cradle can be powered, if required, by an LXE US AC Adapter or an LXE International AC Adapter. When powered, the cradle transfers power to the internal charging circuitry of the mobile device allowing it to recharge the Main Battery. -
Page 12: Rs-232 Connector
+5VDC at 200mA continuous (see note below) Figure 8 RS-232 Pinout Note: Pin 9 of this port is connected to +5VDC and only approved LXE cables are to be used for communication between the cradle and external devices. MX3 Cradle Reference Guide... -
Page 13: Desktop Cradle Power Supply
Desk Top Cradle Desktop Cradle Power Supply The mobile device must have a main battery (MX3A378BATT) installed when it is docked in a cradle. 9000A301PSACUS AC Power Supply, US, trickle charger Figure 9 Desktop Cradle AC Power Supply 1. Plug the AC Power Supply into an uninterrupted power source, e.g. wall outlet. 2. -
Page 14: Powered Vehicle Mount Cradle
Powered Vehicle Mount Cradle Powered Vehicle Mount Cradle Figure 10 Vehicle Mount Cradle – Front 1. Vehicle Mount Bracket Assembly 2. MX3 Release Mechanism 3. IR Port 4. Battery Power Connection 5. Vehicle Cradle Status LED This cradle is specifically designed for vehicle mount applications. The cradle restrains the mobile device and isolates it from shock and vibration. -
Page 15: Power Connector
Powered Vehicle Mount Cradle Power Connector Figure 11 Vehicle Cradle Power Connector The Power connector is located on the back of the cradle. The cradle is powered by either a vehicle's 12V battery or from an approved accessory for vehicles with higher voltage (24 to 60 VDC) batteries. -
Page 16: Figure 13 Vehicle Rs-232 Connector
+5VDC at 200mA continuous (see note below) Figure 14 Vehicle RS-232 Pinout Note: Pin 9 of this port is connected to +5VDC and only approved LXE cables are to be used for communication between the cradle and external devices. See “Accessories”. MX3 Cradle Reference Guide... -
Page 17: Attach U-Bracket To Vehicle
Vehicle Mount Cradle. 2. Using the mounting dimensions on the following diagram mount the bottom mounting bracket to the vehicle, using ¼” bolts (not supplied by LXE). E-EQ-MX3DKRG-J-ARC... -
Page 18: Vehicle Cradle Mounting Bracket Dimensions
Powered Vehicle Mount Cradle Vehicle Cradle Mounting Bracket Dimensions Measurements are not to scale. Figure 16 Mounting Footprint Care must be taken to avoid bending or warping the bottom “U” shaped bracket when attaching the cradle to a lift truck or other vehicle. -
Page 19: Assemble Vehicle Cradle
Powered Vehicle Mount Cradle Assemble Vehicle Cradle Before installation begins, make sure you have the following Vehicle Mount Cradle assembly components: Front Side Figure 18 Vehicle Mount Cradle Figure 19 Adjusting Knobs Attach the Bottom Mounting Bracket (currently secured to the vehicle) to the Vehicle Mount Cradle with the Adjusting Knobs. -
Page 20: Attach Ram Ball Assembly To Vehicle And Mobile Device
Figure 21 RAM Bracket Kit Components Mount the RAM ball to the bottom of the cradle with the bolts, washers and nuts supplied by LXE. Qty 4 - Hex Cap 1/4-20 x 3/4 bolts Qty 4 - 1/4 flat washer... -
Page 21: Ram Mount Assembly
Figure 22 RAM Assembly Footprint Note: LXE does not supply the bolts or washers needed when mounting the RAM ball to the vehicle chassis. LXE recommends using bolts with a maximum 10/32” (0.3125) diameter. Attach the RAM ball to the vehicle, making sure it does not impede safe operation of the vehicle. -
Page 22: Power Supplies
UL Listed, with LPS or Class 2 outputs rated 12V, minimum 1Amp. Desk Top/Mobile Device Power Supply, External, AC LXE offers two types of external power supplies for the desk top cradle: • Power Supply, External, AC, US •... -
Page 23: Worldwide Ac To Dc Adapter Specifications
Power Supplies Worldwide AC to DC Adapter Specifications Figure 24 Worldwide AC Power Supply Part Number: 9000A322PSACWW Feature Specification Operating Temperature 32°F to 104°F (-0°C to 40°C) Storage Temperature -13°F to 158°F (-25°C to 70°C) Operating Humidity Up to 90% non-condensing at 104°F (40°C) Input Power Switch None Power "ON"... -
Page 24: Vehicle Cradle 10.8-16 Vdc Direct Connection
See the following table for wire color-coding specifics. Wiring color codes for LXE supplied DC input power cabling: Vehicle Supply Wire Color +10.8 - 16VDC... -
Page 25: Vehicle Cradle 24/72 Maximum Vdc Input Cable Connection
5 inches of the battery positive (+) terminal. Recommended for vehicle electrical systems that use between 2 and 5 twelve volt batteries in series. LXE Part Number: 9000A316PS24V72MX13 (Replaces 1300A301PS24WW). 1. Power Switch 2. Power On Indicator 3. Output to Vehicle Cradle 4. -
Page 26: Figure 30 Vehicle Power Supply Footprint
Use proper electrical and mechanical fastening means for terminating the cable. Properly sized "crimp" type electrical terminals are an accepted method of termination. Wiring color codes for LXE supplied DC input power cabling: Vehicle Supply Wire Color... - Page 27 The input power cord for the DC-DC Power Supply uses white, black and green wires. Some LXE products have DC input power cords with brown, blue and green wires. The previous table shows the correct electrical connection for either type of cable.
-
Page 28: Dc To Dc Power Supply Installation
DC to DC Power Supply Installation DC to DC Power Supply Installation For use with 9000301PWRSPLY – Power Supply, 18-60VDC with cable 9000302PWRSPLY – Power Supply, 60-110VDC with cable Connecting Electrical Cables To Power Sources The DC to DC power supply is used to provide vehicle power to certain hand held devices when placed in a DC powered vehicle dock. -
Page 29: How To: Connect Vehicle Electrical Connection
DC to DC Power Supply Installation How To: Connect Vehicle Electrical Connection Please review the wiring illustration in the following figure titled “Wiring Diagram” before beginning the DC to DC Power Supply power cable installation. Figure 32 Wiring Diagram – DC to DC Power Supply If connecting a hand-held device cradle, the cradle must be empty. -
Page 30: Figure 34 Input/Output - Dc To Dc Power Supply
DC to DC Power Supply Installation Remove the lid from the DC to DC converter. Attach the stripped wire ends to the output side of the DC to DC converter. Attach stripped wire ends to the input side of the DC to DC converter. -
Page 31: Maintenance
Check the cradle regularly for excessive wear at pressure points. If the cradle becomes cracked or broken at any time, it must be taken out of service and replaced. Contact LXE Customer Service for a replacement cradle (see "Contacting LXE"). -
Page 32: Getting Help
ServicePass website only. You can get help from LXE by calling the telephone numbers listed on the LXE Manuals CD, in the file titled “Contacting LXE”. This information is also available on the LXE website. -
Page 33: Manuals And Accessories
MX3X User Guide / MX3X Reference Guide / MX3Plus Multicharger User Guide MX3Plus User Guide / MX3Plus Reference Guide Accessories Note: Because cradle and cradle accessories continue to evolve and improve, please contact your LXE representative for current releases and availability. MX3002DSKCRDL Desk Top Cradle with Serial RS-232 ActiveSync Support... - Page 34 Manuals and Accessories MX3 Cradle Reference Guide E-EQ-MX3DKRG-J-ARC...
-
Page 35: Appendixa Regulatory Notices And Safety Information
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Warning: Changes or modifications to this device not expressly approved by LXE, Inc., could void the user’s authority to operate this equipment. - Page 36 Cradle Approvals A/C Power Supply Safety Statement – MX3 Output Rated 12 VDC, 1 A. Optional A/C Power Supply: Outside North America, this unit is intended for use with an IEC certified ITE power supply with output rated as stated at the top of this page. (US) Alimentation c.a.
- Page 37 Cradle Approvals Vehicle Power Supply Connection Safety Statement Vehicle Power Supply Connection: If the supply connection is made directly to the battery, a 5A slow-blow fuse should be installed in the positive lead within 5 inches (12.7 cm.) of the battery positive (+) terminal. (US) Raccordement de l'alimentation du véhicule Si l'alimentation est raccordée directement à...
- Page 38 Cradle Approvals MX3 Cradle Reference Guide E-EQ-MX3DKRG-J-ARC...
-
Page 39: Appendixb Obsolete Equipment
Manuals for obsolete devices can be downloaded from the LXE ServicePass website. Contact your LXE representative for replacement or availability of cradles and cables for obsolete devices. The mobile device must have a main battery installed when it is docked in a cradle. - Page 40 LXE. Check the cradle regularly for excessive wear at pressure points. If the cradle becomes cracked or broken at any time, it must be taken out of service and replaced. Contact LXE Customer Service for a replacement MX3-RFID passive cradle.
-
Page 41: Passive Cradle Assembly Components
Appendix B Obsolete Equipment Passive Cradle Assembly Components Note: LXE does not supply the bolts or washers needed when mounting the RAM ball to the vehicle chassis. LXE recommends using bolts with a maximum 10/32” (0.3125) diameter. Passive Cradle RAM Ball and Arm Cylinder... -
Page 42: Ram Mount Assembly
RAM Assembly Footprint Note: LXE does not supply the bolts or washers needed when mounting the RAM ball to the vehicle chassis. LXE recommends using bolts with a maximum 10/32” (0.3125) diameter. Attach the RAM ball to the vehicle, making sure it does not impede safe operation of the vehicle. -
Page 43: Connect External Power Supply To The Mx3-Rfid And Mx3P
Appendix B Obsolete Equipment Connect External Power Supply to the MX3-RFID and MX3P The DC power jack is located on the endcap. The passive cradle does not have a power jack. Connect External Power Supply Insert the barrel connector into the power jack on the mobile device endcap and push in firmly. -
Page 44: 24/72 Maximum Vdc Power Supply Input/Output Cable Connection (Mx3P)
6. Power On Indicator 7. Output to MX3P 8. Input from Vehicle Battery LXE Part Number: 9000A316PS24V72VMX3P Vehicle Power Supply, 24 – 72 Maximum VDC (Fuse Not Shown) Connecting the Power Supply to the MX3P Endcap Power Jack Power Supply Dimensions Length 9.25”... - Page 45 Note: The input power cord for the DC-DC Power Supply uses white, black and green wires. Some LXE products have DC input power cords with brown, blue and green wires. The previous table shows the correct electrical connection for either type of cable.
-
Page 46: Vdc Power Cable Connection (Mx3P)
Appendix B Obsolete Equipment 12V VDC Power Cable Connection (MX3P) 9000A060CBL12V POWER CABLE, BARE WIRE, 12 FT, 12V, DC JACK If the mobile device is in the cradle, it can be either On or in Suspend Mode during this process. Connect the two-wire end of the power cable to the 12V power source battery terminals. -
Page 47: Revision History
Removed "Contacting LXE" section. The information is available on the LXE Manuals CD, in the file titled "Contacting LXE". Added LXE order number for the LXE Manuals CD to the section titled "Manuals". Revision A – Oct 2000, Initial Release... -
Page 48: Index
MX3P Power Jack, attach power supply ....9 Color MX3-RFID and Cradles ..........5 Cable Wiring............18 Color Codes ............21, 11 Contact LXE............26 Cradle and Battery part numbers .......2, 7, 5 Operating Temperature Cradles, storage and function ........1 US AC to DC ............16 WW AC to DC............17... - Page 49 Index Torque wrench, Desk Top Cradle ......4 RAM ball assembly instructions......15, 8 RAM bracket kit components......14, 7 Reverse Polarity............18 User Guides .............26 RS-232 connection Desk Top...............6 Vehicle Mount ............9 Vehicle 12VDC Power Cable........12 Vehicle 24/72VDC Power Supply.....20, 11 Vehicle Cradle for MX3-RFID........5 Specifications Vehicle mount cradle Vehicle 10.8 - 16VDC ........18...
- Page 50 Index MX3 Cradle Reference Guide E-EQ-MX3DKRG-J-ARC...
