Summary of Contents for Atlona CDM-660

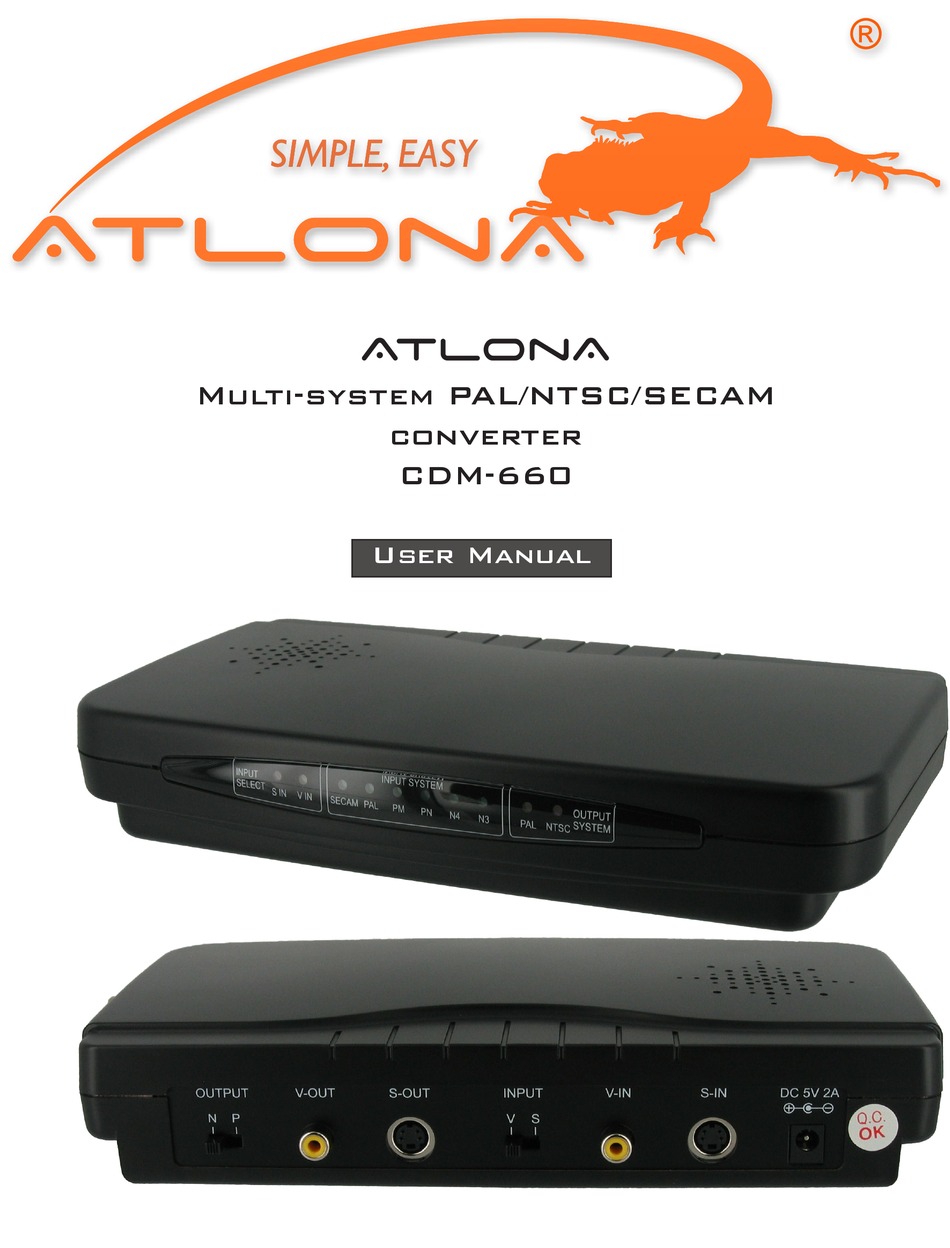

- Page 1 AtlonA Multi-system PAL/NTSC/SECAM converter CDM-660 User Manual...
-
Page 2: Table Of Contents
2. Precautions ..........3. Features ..........4. Operation Controls and Functions ..........4.1. Front Panel ..........4.2. Rear Panel ..........5. Connection and Installation ..........6. Specifications ..........7. Safety Information ..........8. Warranty ..........9. Atlona Product Registration .......... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the CDM-660 Multi-system PAL/NTSC/SECAM Converter. This product has many innovative features that will prove absolutely useful to you. Please read this instructions carefully as it will guide you through the most of the setup process. In case of as- sistance with troubleshooting, please contact us. -
Page 4: Operation Controls And Functions
OPERATION CONTROLS and FUNCTIONS 4.1 Front Panel 1. Illuminates when S-IN is selected. 2. Illuminates when V-IN is selected. 3. Illuminates when input system is SECAM. 4. Illuminates when input system is PAL. 5. Illuminates when input is PAL M. 6. -
Page 5: Connection And Installation
CONNECTION and INSTALLATION Video Cassette Recorder Satellite Receiver Laser Disc Camcorder PAL NTSC or SECAM NTSC or PAL Video Recorder NTSC or PAL SPECIFICATIONS: Input systems NTSC, N4, PAL, PAL M, PAL N, SECAM Output TV Systems NTSC 3.58, PAL Connection Terminals Video input: 1 S input : 1... -
Page 6: Safety Information
It may also cause damage to your the manufacturer could void the CDM-660. Opening the product will void the user’s authority to operate this warranty. equipment. -
Page 7: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 8: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
