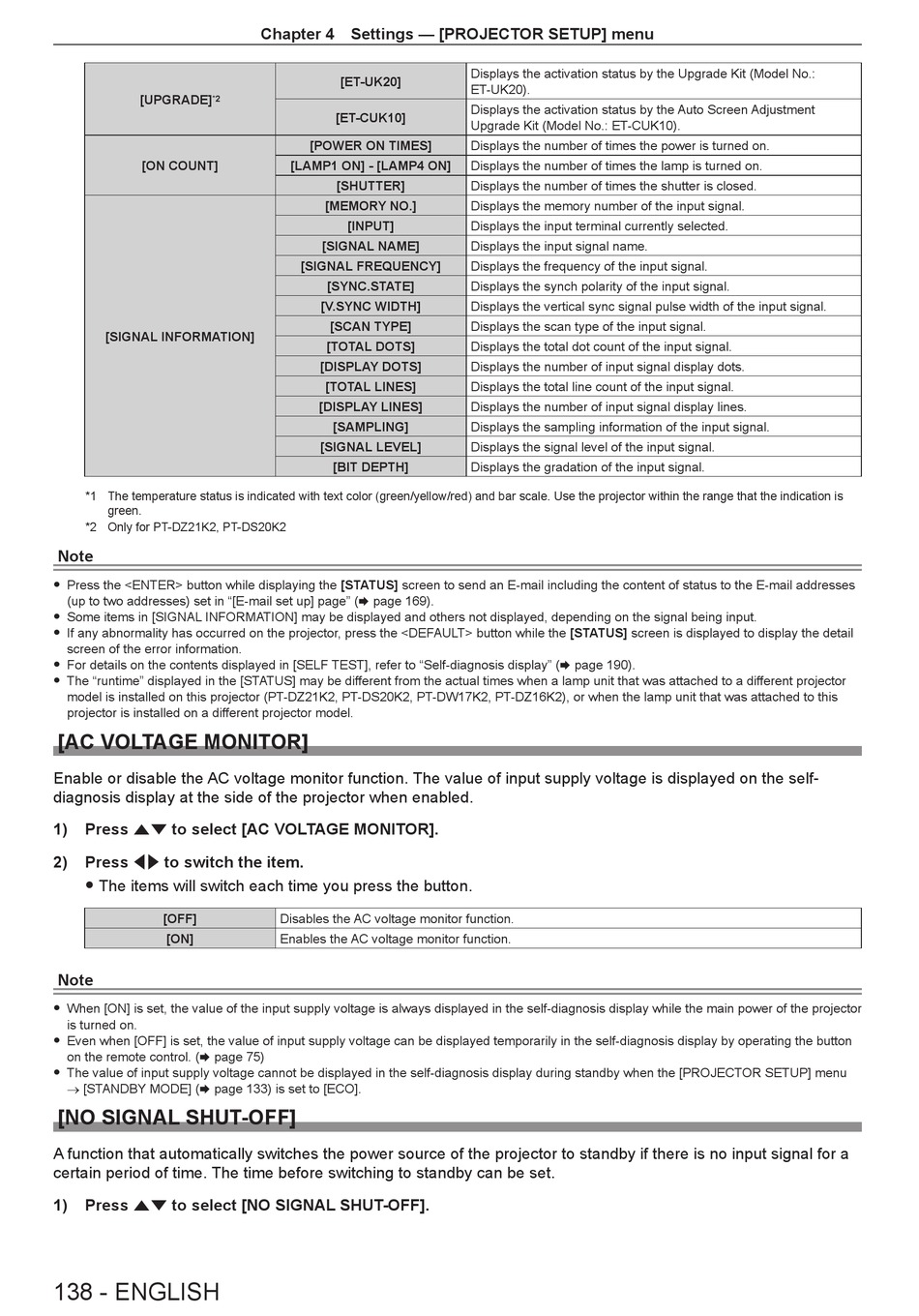

[UPGRADE]
*2
[ON COUNT]
[SIGNAL INFORMATION]
*1 The temperature status is indicated with text color (green/yellow/red) and bar scale. Use the projector within the range that the indication is
green.
*2 Only for PT-DZ21K2, PT-DS20K2
Note
f Press the <ENTER> button while displaying the [STATUS] screen to send an E-mail including the content of status to the E-mail addresses
(up to two addresses) set in "[E-mail set up] page" (x page 169).
f Some items in [SIGNAL INFORMATION] may be displayed and others not displayed, depending on the signal being input.
f If any abnormality has occurred on the projector, press the <DEFAULT> button while the [STATUS] screen is displayed to display the detail
screen of the error information.
f For details on the contents displayed in [SELF TEST], refer to "Self-diagnosis display" (x page 190).
f The "runtime" displayed in the [STATUS] may be different from the actual times when a lamp unit that was attached to a different projector
model is installed on this projector (PT-DZ21K2, PT-DS20K2, PT-DW17K2, PT-DZ16K2), or when the lamp unit that was attached to this
projector is installed on a different projector model.

[AC VOLTAGE MONITOR]

Enable or disable the AC voltage monitor function. The value of input supply voltage is displayed on the self-
diagnosis display at the side of the projector when enabled.
1) Press as to select [AC VOLTAGE MONITOR].
2) Press qw to switch the item.
f The items will switch each time you press the button.
[OFF]
[ON]
Note
f When [ON] is set, the value of the input supply voltage is always displayed in the self-diagnosis display while the main power of the projector
is turned on.
f Even when [OFF] is set, the value of input supply voltage can be displayed temporarily in the self-diagnosis display by operating the button
on the remote control. (x page 75)
f The value of input supply voltage cannot be displayed in the self-diagnosis display during standby when the [PROJECTOR SETUP] menu
→ [STANDBY MODE] (x page 133) is set to [ECO].

[NO SIGNAL SHUT-OFF]

A function that automatically switches the power source of the projector to standby if there is no input signal for a
certain period of time. The time before switching to standby can be set.
1) Press as to select [NO SIGNAL SHUT-OFF].
138 - ENGLISH
Chapter 4 Settings — [PROJECTOR SETUP] menu
[ET-UK20]
[ET-CUK10]
[POWER ON TIMES]
[LAMP1 ON] - [LAMP4 ON]
[SHUTTER]
[MEMORY NO.]
[INPUT]
[SIGNAL NAME]
[SIGNAL FREQUENCY]
[SYNC.STATE]
[V.SYNC WIDTH]
[SCAN TYPE]
[TOTAL DOTS]
[DISPLAY DOTS]
[TOTAL LINES]
[DISPLAY LINES]
[SAMPLING]
[SIGNAL LEVEL]
[BIT DEPTH]
Disables the AC voltage monitor function.
Enables the AC voltage monitor function.
Displays the activation status by the Upgrade Kit (Model No.:
ET-UK20).
Displays the activation status by the Auto Screen Adjustment
Upgrade Kit (Model No.: ET-CUK10).
Displays the number of times the power is turned on.
Displays the number of times the lamp is turned on.
Displays the number of times the shutter is closed.
Displays the memory number of the input signal.
Displays the input terminal currently selected.
Displays the input signal name.
Displays the frequency of the input signal.
Displays the synch polarity of the input signal.
Displays the vertical sync signal pulse width of the input signal.
Displays the scan type of the input signal.
Displays the total dot count of the input signal.
Displays the number of input signal display dots.
Displays the total line count of the input signal.
Displays the number of input signal display lines.
Displays the sampling information of the input signal.
Displays the signal level of the input signal.
Displays the gradation of the input signal.
