AT&T TL92220 Quick Start Manual
Dect 6.0 cordless telephone/answering system with bluetooth® wireless technology
Hide thumbs
Also See for TL92220:
- Quick start manual (24 pages) ,
- User manual (110 pages) ,
- User manual (110 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for AT&T TL92220
Summary of Contents for AT&T TL92220

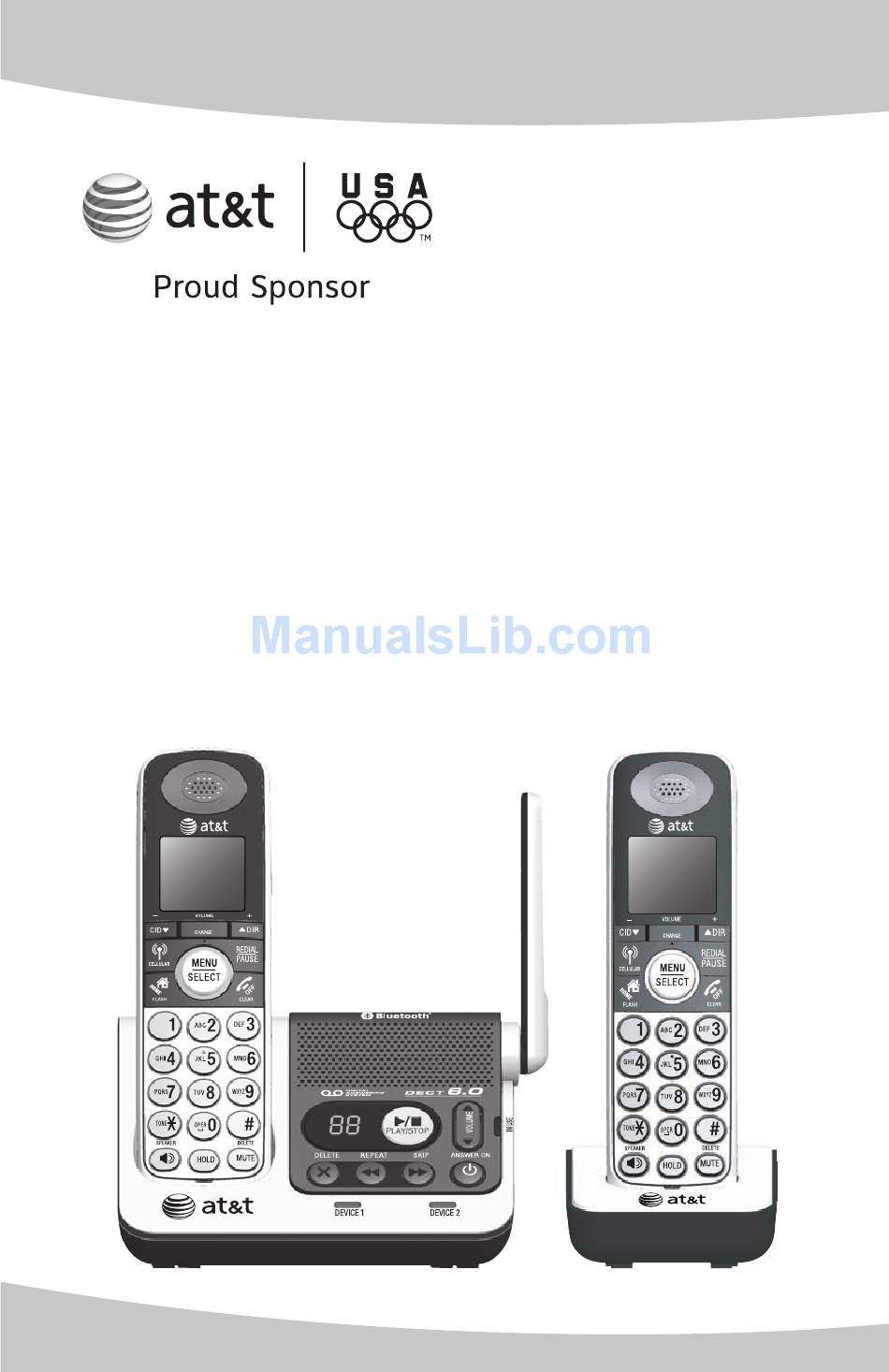

- Page 1 Quick start guide TL92220/TL92270/TL92320/ TL92370/TL92420/TL92470 DECT 6.0 cordless telephone/ answering system with BLUETOOTH® wireless technology...
-
Page 2: Installation
Getting started Installation You must install and charge See pages 4-5 for easy the handset battery before instructions. using the cordless handset. Install the telephone base close to a telephone jack and a power outlet not controlled by a wall switch. The telephone base can be placed on a flat surface or vertically mounted on the wall. -
Page 3: Telephone Base Installation
Getting started Telephone base installation If you subscribe to high-speed Internet service (digital subscriber line - DSL) through your telephone line, you must install a DSL filter between the telephone line cord and the telephone wall jack. The filter prevents noise and caller ID problems caused by DSL interference. -
Page 4: Charger Installation
Getting started Charger installation Plug the power adapter into an electrical outlet not controlled by a wall switch. IMPORTANT INFORMATION: Use only the power adapter(s) provided with this product. To obtain a replacement, visit our www.telephones.att.com 1 (800) 222-3111 website at or call . -
Page 5: Battery Installation And Charging
Getting started Battery installation and charging Install the battery as shown below. Step 1 Step 2 Plug the battery connector securely Align the cover flat against the into the socket inside the handset battery compartment, then slide it battery compartment, matching the upwards until it clicks into place. -
Page 6: Battery Charging
Getting started Battery charging Once you have installed the battery, the screen indicates the battery status (see table below). If necessary, place the handset in the telephone base or charger to charge the battery. For best performance, keep the handset in the telephone base or charger when not in use. -
Page 7: Bluetooth Setup
To use a Bluetooth enabled cellular phone with your telephone, you must first pair and connect your Bluetooth cellular phone with the telephone base. All TL92220/TL92270/TL92320/TL92370/TL92420/TL92470 handsets can be used to make or answer on the cell phone line. Bluetooth wireless technology operates within a short range (up to 0 feet). -
Page 8: Auto Connection
Bluetooth Bluetooth setup Enter the PIN of the telephone base (the default PIN is 0000) into your cell phone to continue the pairing process. Base name: AT&T DECT 6.0 When a device is successfully connected, the handset CODE:0000 displays Paired with cellular and then Cellular setup completed Device connected. - Page 9 Bluetooth Bluetooth setup Pair a headset Before you begin, make sure that your Bluetooth enabled headset is not connected to any other Bluetooth device. Refer to your headset user's manual to learn how to search for or add new Bluetooth devices. To pair and connect a headset: Answering sys Press MENU/...
- Page 10 Bluetooth Bluetooth setup When the handset displays Headset A paired to base. Connect now? Press SELECT, then press /SELECT MENU Headset A on the handset. paired to base. Connect now? • When you already have two devices on the active devices list, the handset shows Maximum of 2 Press SELECT...
- Page 11 Bluetooth Bluetooth setup Paired devices All paired devices are stored on the Paired devices list. Up to four devices (cell phones and headsets) can be paired with the telephone base. To use a paired device, it must be connected and on the active devices list (page 2).
- Page 12 Bluetooth Bluetooth setup Remove a paired device If you want to add another Bluetooth device and you already have the maximum of four devices on the paired devices list, you must first delete a device from the paired devices list. To remove a paired device: Answering sys Press MENU/...
- Page 13 Bluetooth Bluetooth setup Active devices Only devices on the active devices list can establish a Bluetooth connection with the telephone base. Although two paired devices can be connected to the telephone base, only one Bluetooth cell phone or a headset can be on a call at a time.
- Page 14 Bluetooth Bluetooth setup Replace an active device You can replace an active device with a device on the paired devices list even if you already have two devices on the active devices list. To replace an active device: BLUETOOTH Press MENU/ on the handset when it is not in use.
- Page 15 Bluetooth Bluetooth setup Add an active device You can have a maximum of two devices on the active devices list. To add an active device: Press MENU/ on the handset in idle mode to enter Answering sys SELECT Directory the main menu. Cal l log Intercom DIR to highlight Bluetooth, then press...
- Page 16 Bluetooth Bluetooth setup Remove an active device You can remove an active device from the active devices list. Answering sys Directory To remove an active device: Cal l log Intercom Press MENU/ on the handset when it is not in use. SELECT Bluetooth Press...
- Page 17 SELECT. If you press /SELECT to continue the MENU download process, the directory stored on the TL92220/TL92270/ TL92320/TL92370/TL92420/TL92470 for that cell phone is erased and replaced with the current cell phone directory. If you have edited the downloaded entries, those changes are lost.
- Page 18 For example, if you have home, mobile and work numbers for a particular contact, the three categories may not transfer to your TL92220/TL92270/ TL92320/TL92370/TL92420/TL92470. On certain cell phones, you may need to press a key to confirm the directory download.
- Page 19 Bluetooth Bluetooth setup setup Interruption to directory download If you are downloading a directory from a cell phone and the cell phone receives a call, the download process stops and all handsets display Download dir aborted. When you try to view the downloaded directory, the handset displays Last download aborted: MM/DD/YY Press SELECT.
- Page 20 Bluetooth Quick reference guide - telephone base /PLAY/STOP Press to play messages. /REPEAT Press to stop message playback. Press to repeat a message or press twice to play the previous VOLUME message. Press to adjust the volume during playback. When the phone is not in use, press to adjust the telephone base /HANDSET LOCATOR...
- Page 21 Getting started Quick reference guide - handset CHARGE light (blue ring around MENU/SELECT) On when the handset is charging in the telephone base or charger. CID /-VOLUME Press to scroll down while in menus. Press to decrease the volume level during a call. Press to show the caller ID history when the telephone is not in use.
- Page 22 Getting started Quick reference guide - handset DIR/VOLUME+ Press to scroll up while in menus. Press to increase the volume level during a call. Press to show directory entries when the telephone is not in use. While entering names or numbers in the directory, press to move the cursor to the right.
-
Page 23: Main Menu
Getting started Quick reference guide - handset During an outside call, intercom call, message or announcement playback, press to change the quality of the audio to best suit your hearing. Feature menu Play messages Answering sys Directory Call log Intercom Bluetooth Ringers Main menu... - Page 24 www.telephones.att.com The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Advanced American Telephones and its parent, VTech Holdings Limited, is under license. VTech Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners. ©...
