Summary of Contents for AT&T TL92220

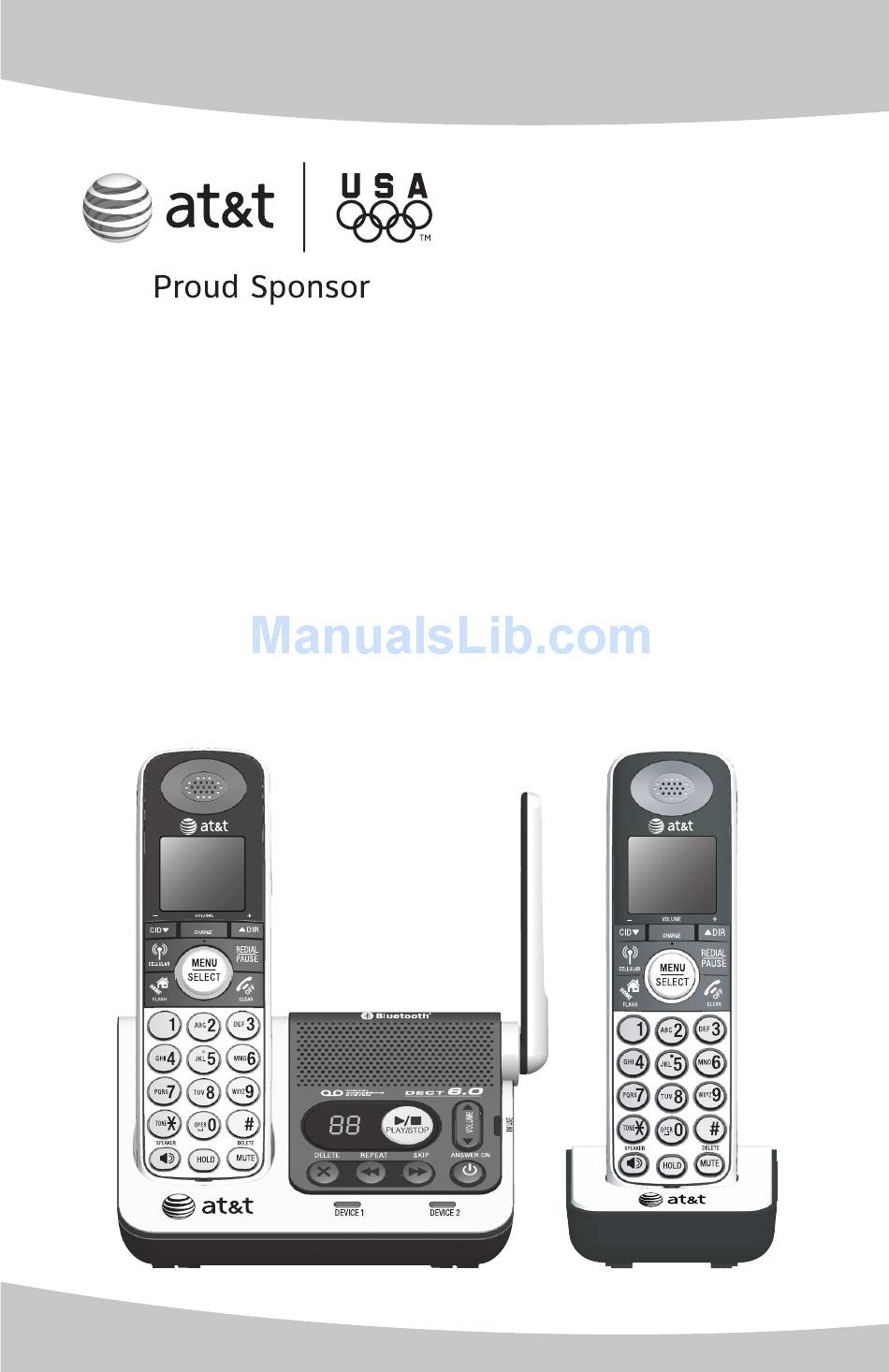

Page 1 Quick start guide TL92220/TL92270/TL92320/ TL92370/TL92420/TL92470 DECT 6.0 cordless telephone/ answering system with BLUETOOTH® wireless technology...
Page 2: Installation
Installation You must install and charge See pages 4-5 for easy the handset battery before instructions. using the cordless handset. Install the telephone base close to a telephone jack and a power outlet not controlled by a wall switch. The telephone base can be placed on a flat surface or vertically mounted on the wall.
Page 3: Telephone Base Installation
Telephone base installation If you subscribe to high-speed Internet service (digital subscriber line - DSL) through your telephone line, you must install a DSL filter between the telephone line cord and the telephone wall jack. The filter prevents noise and caller ID problems caused by DSL interference.
Page 4: Charger Installation
Charger installation Plug the power adapter into an electrical outlet not controlled by a wall switch. IMPORTANT INFORMATION: Use only the power adapter(s) provided with this product. To obtain a replacement, visit our www.telephones.att.com 1 (800) 222-3111 website at or call .
Page 5: Battery Installation And Charging
Battery installation and charging Install the battery as shown below. Step 1 Step 2 Plug the battery connector securely Align the cover flat against the into the socket inside the handset battery compartment, then slide it battery compartment, matching the upwards until it clicks into place.
Page 6: Battery Charging
Battery charging Once you have installed the battery, the screen indicates the battery status (see table below). If necessary, place the handset in the telephone base or charger to charge the battery. For best performance, keep the handset in the telephone base or charger when not in use. The battery is fully charged after 6 hours of continuous charging.
Page 7: Bluetooth Setup
To use a Bluetooth enabled cellular phone with your telephone, you must first pair and connect your Bluetooth cellular phone with the telephone base. All TL92220/TL92270/TL92320/TL92370/TL92420/TL92470 handsets can be used to make or answer calls on the cell phone line.
Page 8: Auto Connection
Bluetooth setup Enter the PIN of the telephone base (the default PIN is 0000) into your cell phone to continue the pairing process. Base name: AT&T DECT 6.0 When a device is successfully connected, the handset CODE:0000 displays Paired with cellular and then Cellular setup completed Device connected.
Page 9 Bluetooth setup Pair a headset Before you begin, make sure that your Bluetooth enabled headset is not connected to any other Bluetooth device. Refer to your headset user's manual to learn how to search for or add new Bluetooth devices. To pair and connect a headset: Answering sys Press MENU/...
Page 10 Bluetooth setup When the handset displays Headset A paired to base. Connect now? Press SELECT, then press /SELECT MENU Headset A on the handset. paired to base. Connect now? • When you already have two devices on the active devices list, the handset shows Maximum of 2 Press SELECT devices can be connected.
Page 11 Bluetooth setup Paired devices All paired devices are stored on the Paired devices list. Up to four devices (cell phones and headsets) can be paired with the telephone base. To use a paired device, it must be connected and on the active devices list (page 2).
Page 12 Bluetooth setup Remove a paired device If you want to add another Bluetooth device and you already have the maximum of four devices on the paired devices list, you must first delete a device from the paired devices list. To remove a paired device: Answering sys Press MENU/ on the handset in idle mode to enter...
Page 13 Bluetooth setup Active devices Only devices on the active devices list can establish a Bluetooth connection with the telephone base. Although two paired devices can be connected to the telephone base, only one Bluetooth cell phone or a headset can be on a call at a time.
Page 14 Bluetooth setup Replace an active device You can replace an active device with a device on the paired devices list even if you already have two devices on the active devices list. To replace an active device: BLUETOOTH Press MENU/ on the handset when it is not in use.
Page 15 Bluetooth setup Add an active device You can have a maximum of two devices on the active devices list. To add an active device: Press MENU/ on the handset in idle mode to enter Answering sys SELECT Directory the main menu. Cal l log Intercom Press...
Page 16 Bluetooth setup Remove an active device You can remove an active device from the active devices list. Answering sys Directory To remove an active device: Cal l log Intercom Press MENU/ on the handset when it is not in use. SELECT Bluetooth Press...
Page 17 Before downloading the directory, make sure the cell phone is paired to your TL92220/TL92270/TL92320/TL92370/TL92420/TL92470 and on the active devices list. Place your cell phone next to the telephone base when you download a cell phone directory to your TL92220/TL92270/ TL92320/TL92370/TL92420/TL92470. Answering sys To download a cell phone directory:...
Page 18 For example, if you have home, mobile and work numbers for a particular contact, the three categories may not transfer to your TL92220/TL92270/ TL92320/TL92370/TL92420/TL92470. On certain cell phones, you may need to press a key to confirm the directory download.
Page 19 Bluetooth setup Interruption to directory download If you are downloading a directory from a cell phone and the cell phone receives a call, the download process stops and all handsets display Download dir aborted. When you try to view the downloaded directory, the handset displays Last download aborted: MM/DD/YY Press SELECT.
Page 20 Quick reference guide - telephone base /PLAY/STOP Press to play messages. /REPEAT Press to stop message playback. Press to repeat a message or press twice to play the previous VOLUME message. Press to adjust the volume during playback. When the phone is not in use, press to adjust the telephone base /HANDSET LOCATOR...
Page 21 Quick reference guide - handset CHARGE light (blue ring around MENU/SELECT) On when the handset is charging in the telephone base or charger. CID /-VOLUME Press to scroll down while in menus. Press to decrease the volume level during a call. Press to show the caller ID history when the telephone is not in use.
Page 22 Quick reference guide - handset DIR/VOLUME+ Press to scroll up while in menus. Press to increase the volume level during a call. Press to show directory entries when the telephone is not in use. While entering names or numbers in the directory, press to move the cursor to the right.
Page 23: Main Menu
Quick reference guide - handset During an outside call, intercom call, message or announcement playback, press to change the quality of the audio to best suit your hearing. Feature menu Play messages Answering sys Directory Call log Intercom Bluetooth Ringers Main menu Settings Website...
Page 24 www.telephones.att.com The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Advanced American Telephones and its parent, VTech Holdings Limited, is under license. VTech Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners. ©...
