Connecting your Sky box

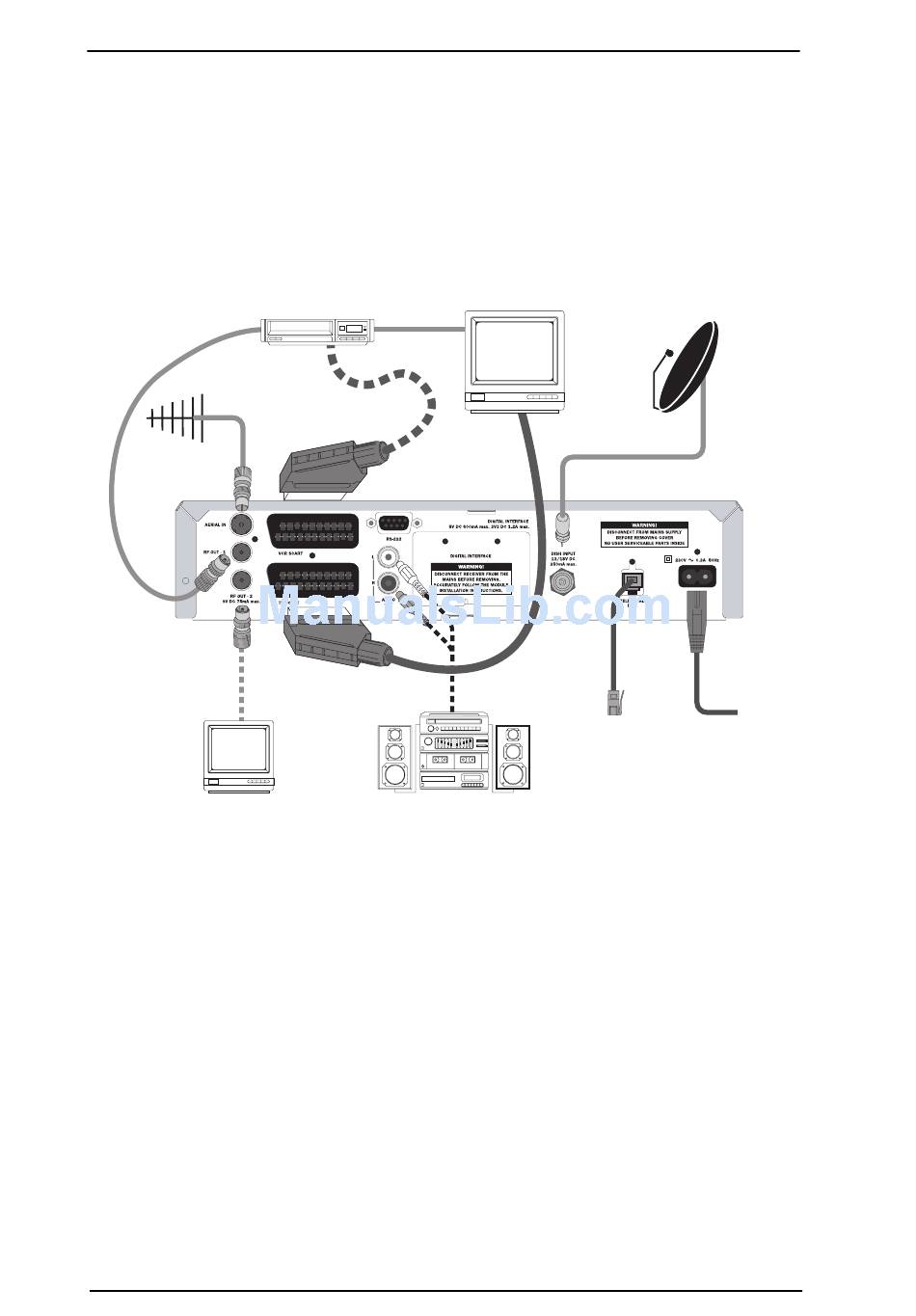

Follow the diagram below to ensure your Sky box is correctly connected to
your TV (and a second TV set), satellite dish, telephone line and the mains
supply. You can also see how to connect your video recorder and terrestrial
aerial. (Configuration may vary depending on your model).
Warning! You must disconnect your Sky box from the mains supply before you
connect your Sky box to (or disconnect it from) any other equipment).
RF lead
RF lead
terrestrial
aerial
RF lead
second
TV
Terminals marked with the hazard symbol are hazardous live and the external
wiring connected to these terminals requires installation by an instructed
person or the use of ready-made leads or cords.
With the exceptions of the mains and the telephone line, all the
interconnections between the rear panel of your Sky box and your other
equipment are safe, extra-low voltage circuits. However, you should always
disconnect the box from the mains before connecting other devices.
Digital interface
On the rear panel of your Sky box there is a plate which covers a general-
purpose interface. This is for future plug-in modules, which will have their
own installation instructions. Only plug-in modules that are authorised by Sky
must be used. You must disconnect your Sky box from the mains before
removing the plate or plugging in a module. Do not remove the plate without
further instruction from Sky.
50
RF lead
video
recorder
(VCR)
scart lead
scart lead
stereo hi-fi system
TV
satellite dish
Sky box rear panel
telephone
lead
Using your Sky box
mains
lead
