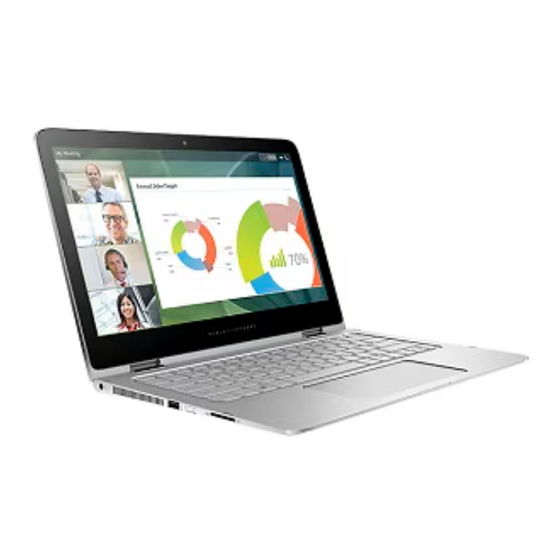

HP Spectre x360 Maintenance And Service Manual

Convertible pc
Hide thumbs Also See for Spectre x360:
Table of Contents

Advertisement

Quick Links

See also: Maintenance and Service Manual
HP Spectre x360 Convertible PC and
HP Spectre Pro x360 Convertible PC
Maintenance and Service Guide
IMPORTANT! This document is intended for
HP authorized service providers only.

Advertisement

Table of Contents
loading

Related Manuals for HP Spectre x360

Summary of Contents for HP Spectre x360

  • Page 1 HP Spectre x360 Convertible PC and HP Spectre Pro x360 Convertible PC Maintenance and Service Guide IMPORTANT! This document is intended for HP authorized service providers only.
  • Page 2 The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
  • Page 3 Safety warning notice WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place the device directly on your lap or obstruct the device air vents. Use the device only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow.
  • Page 4 Safety warning notice...

  • Page 5: Table Of Contents

    Packaging and transporting guidelines ................. 21 Workstation guidelines ................21 5 Removal and replacement procedures ......................23 Unlocking the device and disabling Always On Remote Management (select HP devices only) ....... 23 Bottom cover ............................... 24 Battery ................................. 25 WLAN module ..............................26 Solid-state drive ..............................
  • Page 6 7 Using HP PC Hardware Diagnostics (UEFI) – Windows 8 ..................46 Downloading HP PC Hardware Diagnostics (UEFI) to a USB device ..............47 8 Using Setup Utility (BIOS) and HP PC Hardware Diagnostics (UEFI) – Windows 7 ..........48 Starting Setup Utility (BIOS) ..........................48 Updating the BIOS ..............................
  • Page 7 Restoring specific files ........................61 Restoring specific files using Windows Backup and Restore ......... 61 Recovering the original system using HP Recovery Manager ............62 What you need to know ....................62 Recovering using HP Recovery partition (select models only) ........62 Recovering using the recovery media ................
  • Page 8 viii...

  • Page 9: Product Description

    Product description Category Description HP Spectre x360 HP Spectre Pro x360 Convertible PC Convertible PC Product Name HP Spectre x360 Convertible PC × HP Spectre Pro x360 × Convertible PC ● Processor Intel® Core™ i7-5600U 2.60- × GHz (SC turbo up to 3.00-GHz) processor (1600-MHz FSB, 4.00-MB L2 cache, dual core,...
  • Page 10 ● 180-GB solid-state drive supporting MLC ● 128-GB solid-state drive supporting MLC Audio and video Webcam: HP TrueVision Full HD, × × fixed (no tilt), with activity light, 1920×1080 by 30 frames per second Dual array digital microphones with appropriate beam-forming,...
  • Page 11 Taps enabled as default ● Support for Microsoft® Windows® 8 modern TrackPad gestures, drivers for Windows 7 Professional Power requirements Support for 65-W HP Smart × × adapter (non-PFC, EM, 3-wire, 4.5- mm) and 45-W HP Smart adapter (non-PFC, RC, 3-wire, 4.5-mm)
  • Page 12 Category Description HP Spectre x360 HP Spectre Pro x360 Convertible PC Convertible PC Power requirements Support for a 3-cell, 56-WHr, 4.96- × × (continued) AHr, Li-ion battery (includes cable) Security Support for Trusted Platform × × Module 1.2 (TPM) Operating system Preinstalled: Windows 8.1...

  • Page 13: External Component Identification

    External component identification Locating hardware To find out what hardware is installed on your computer: From the Start screen, type control panel, and then select Control Panel. ‒ or – From the Windows desktop, right-click the Start button, and then select Control Panel. Select System and Security, select System, and then click Device Manager in the left column.

  • Page 14: Display

    Environmental Notices that applies to your country or region. To access this document: From the Start screen, type support, and then select the HP Support Assistant app. ‒ or – From the Windows desktop, click the question mark icon in the notification area, at the far right of the taskbar.

  • Page 15: Keys

    Keys Item Component Description Displays system information when pressed in combination with the key. Displays system information when pressed in combination with the key. Windows key Returns you to the Start screen from an open app or the Windows desktop. NOTE: Pressing the Windows key again will return you to the previous screen.

  • Page 16: Lights

    Lights Item Component Description Caps lock light On: Caps lock is on, which switches the keys to all capital letters. ● Mute light Amber: Computer sound is off. ● Off: Computer sound is on. Speakers Component Description Speakers Produce sound. Chapter 2 External component identification...

  • Page 17: Touchpad

    TouchPad Item Component Description TouchPad zone Reads your finger gestures to move the pointer or activate items on the screen. TouchPad left button Functions like the left button on an external mouse. TouchPad right button Functions like the right button on an external mouse. TouchPad...

  • Page 18: Left Side

    Left side Item Component Description Power connector Connects an AC adapter. ● AC adapter/battery light Solid white: The computer is connected to external power and the battery is fully charged. ● Solid amber: The computer is connected to external power and the battery is charged from 0 to 99 percent.
  • Page 19 Item Component Description Power button (continued) If the computer has stopped responding and Windows shutdown procedures are ineffective, press and hold the power button down for at least 5 seconds to turn off the computer. To learn more about your power settings, see your power options.

  • Page 20: Right Side

    Regulatory, Safety, and Environmental Notices. To access this document: ▲ From the Start screen, type support, and then select the HP Support Assistant app. ‒ or – From the Windows desktop, click the question mark icon in the notification area, at the far right of the taskbar.

  • Page 21: Illustrated Parts Catalog

    NOTE: HP continually improves and changes product parts. For complete and current information on supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then follow the on-screen instructions. Locating the serial number, product number, and model number The product name (1), serial number (2), product number (3), warranty information (4), and model name (5) are located on the bottom of the computer.

  • Page 22: Computer Major Components

    Computer major components Chapter 3 Illustrated parts catalog...
  • Page 23 801508-141 For use in the United Kingdom and Singapore 801508-031 For use in the United States 801508-001 For use only on HP Spectre Pro x360 Convertible PC computer models: For use in Israel 801508-BB1 For use in Japan 801508-291 For use only on HP Spectre x360 Convertible PC computer models:...
  • Page 24 MHz FSB, 4.00-MB L2 cache, dual core, 15 W), 4.0-GB of system memory, and a non- Windows 8 operating system For use only on HP Spectre Pro x360 Convertible PC computer models: Equipped with an Intel Core i7-5600U 2.60-GHz (SC turbo up to 3.00-GHz) processor (1600- 808445-601 MHz FSB, 4.00-MB L2 cache, dual core, 15 W), 8.0-GB of system memory, and the...

  • Page 25: Miscellaneous Parts

    HP Spectre Pro x360 Convertible PC computer models Intel Dual Band Wireless-N 7265BN 802.11 a/b/g/n 2×2 WiFi + Bluetooth 4.0 Combo 756748-005 Adapter for use only on HP Spectre Pro x360 Convertible PC computer models (13) Fan (includes cable)
  • Page 26 65-W HP Smart adapter (non-PFC, EM, 3-wire, 4.5-mm) for use on all computer models 714657-001 45-W HP Smart adapter (non-PFC, RC, 3-wire, 4.5-mm) for use on all computer models 741727-001 45-W HP Smart adapter (non-PFC, RC, 3-wire, 4.5-mm) for use only on HP Spectre Pro x360 742436-001 Convertible PC computer models HP sleeve...

  • Page 27: Removal And Replacement Preliminary Requirements

    Removal and replacement preliminary requirements Tools required You will need the following tools to complete the removal and replacement procedures: ● Flat-bladed screw driver ● Magnetic screw driver ● Phillips P0 screw driver Service considerations The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

  • Page 28: Grounding Guidelines

    Grounding guidelines Electrostatic discharge damage Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions. A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry.

  • Page 29: Packaging And Transporting Guidelines

    Packaging and transporting guidelines Follow these grounding guidelines when packaging and transporting equipment: ● To avoid hand contact, transport products in static-safe tubes, bags, or boxes. ● Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging. ● Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
  • Page 30 Equipment guidelines Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation. ● When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times.

  • Page 31: Removal And Replacement Procedures

    PIN is not available, the entire system board must be replaced. Before returning the device for service, be sure to unlock the device using the PIN from the HP Touchpoint Manager website (http://www.hptouchpointmanager.com), and also disable the AORM feature in HP Computer Setup.

  • Page 32: Bottom Cover

    Bottom cover Description Spare part number Bottom cover (includes 4 rubber feet) 801492-001 Before disassembling the computer, follow these steps: Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect the power from the computer by unplugging the power cord from the computer.

  • Page 33: Battery

    WARNING! To reduce potential safety issues, use only the battery provided with the computer, a replacement battery provided by HP, or a compatible battery purchased from HP. CAUTION: Removing a battery that is the sole power source for the computer can cause loss of information.

  • Page 34: Wlan Module

    Intel Dual Band Wireless-N 7265BN 802.11 a/b/g/n 2×2 WiFi + Bluetooth 4.0 Combo Adapter for use 756748-005 only on HP Spectre Pro x360 Convertible PC computer models CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region.
  • Page 35 Remove the bottom cover (see Bottom cover on page 24). Disconnect the battery cable from the system board (see Battery on page 25). Remove the WLAN module: Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module. NOTE: The WLAN antenna cable labeled “1”...

  • Page 36: Solid-State Drive

    256-GB, M2, SATA3 solid-state drive supporting TLC 801503-001 128-GB, M2, SATA3 solid-state drive supporting TLC 801502-001 For use only on HP Spectre Pro x360 Convertible PC computer models: 256-GB, M2, SATA3 SED solid-state drive supporting MLC 813147-001 180-GB, M2, SATA3 solid-state drive supporting MLC...

  • Page 37: Fan

    Description Spare part number Fan (includes cable) 801493-001 NOTE: To properly ventilate the computer, allow at least 7.6 cm (3 in) of clearance on the left side of the computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist.

  • Page 38: Speakers

    Speakers Description Spare part number Speakers (include left and right speakers and cables) 801501-001 Before removing the speakers, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.

  • Page 39: Touchpad

    TouchPad NOTE: The TouchPad spare part kit includes the TouchPad cable. Description Spare part number For use only on computer models equipped with an AMD processor 801499-001 Before removing the TouchPad, follow these steps: Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

  • Page 40: Card Reader Board

    Remove the TouchPad and cable. Reverse this procedure to install the TouchPad. Card reader board Description Spare part number Card reader board (includes cable) 801498-001 Before removing the card reader board, follow these steps: Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

  • Page 41: System Board

    Equipped with an Intel Core i5-5200U 2.20-GHz (SC turbo up to 2.70-GHz) processor (1600-MHz FSB, 801507-001 4.00-MB L2 cache, dual core, 15 W), 4.0-GB of system memory, and a non-Windows 8 operating system For use only on HP Spectre Pro x360 Convertible PC computer models: System board...
  • Page 42 3.00-MB L2 cache, dual core, 15 W), 4.0-GB of system memory, and a non-Windows 8 operating system For use only on HP Spectre x360 Convertible PC computer models: Equipped with an Intel Core i7-5500U 2.40-GHz (SC turbo up to 3.00-GHz) processor (1600-MHz FSB, 801505-601 4.00-MB L2 cache, dual core, 15 W), 8.0-GB of system memory, and the Windows 8 Professional...
  • Page 43 When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board: ● WLAN module (see WLAN module on page ● Solid-state drive (see Solid-state drive on page ●...
  • Page 44 Release the ZIF connector (5) to which the card reader board cable is attached, and then disconnect the card reader board cable from the system board. Remove the Phillips PM2.0×2.6 broad head screw (1) and the Phillips PM2.0×2.7 screw (2) that secure the system board to the top cover.

  • Page 45: Heat Sink

    Heat sink Description Spare part number Heat sink (includes replacement thermal material) 801494-001 Before removing the heat sink, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.

  • Page 46: Keyboard

    Singapore For use in Italy 801508-061 For use in the United States 801508-001 For use only on HP Spectre Pro x360 Convertible PC computer models: For use in Israel 801508-BB1 For use in Japan 801508-291 For use only on HP Spectre x360 Convertible PC computer models:...
  • Page 47 Before removing the keyboard, follow these steps: Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect the power from the computer by unplugging the power cord from the computer. Disconnect all external devices from the computer.

  • Page 48: Display Assembly

    Remove the keyboard (2). Reverse this procedure to install the keyboard. Display assembly Description Spare part number 13.3-in, ultra wide aspect ratio, TouchScreen 13.3-in, QHD, WLED, BrightView (2560×1440), UWVA, 801496-001 2.55-mm display assembly (includes display panel cable, microphones, hinges, webcam, and wireless antenna cables and transceivers) 13.3-in, ultra wide aspect ratio, TouchScreen 13.3-in, FHD, WLED, BrightView (1920×1080), UWVA, 801495-001...
  • Page 49 Open the computer to the interactive position, as shown in the following illustrations. Release the WLAN antenna cables from the retention post (1) built into the top cover. Release the display panel cable from the retention post (2) built into the top cover. Remove the four Phillips PM2.5×4.1 screws (1) that secure the display assembly to the top cover.

  • Page 50: Audio Jack Board

    Audio jack board Description Spare part number Audio jack board (includes cable) 801497-001 Before removing the audio jack board, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.

  • Page 51: Power Connector Cable

    Power connector cable Description Spare part number Power connector cable 801513-001 Before removing the power connector cable, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.

  • Page 52: Using Setup Utility (Bios) - Windows 8

    BIOS that is installed. BIOS version information (also known as ROM date and System BIOS) can be revealed from the Start screen by typing support, selecting the HP Support Assistant app, and then selecting System Information, or by using Setup Utility (BIOS).

  • Page 53: Downloading A Bios Update

    If your computer is connected to a network, consult the network administrator before installing any software updates, especially system BIOS updates. From the Start screen, type support, and then select the HP Support Assistant app. ‒ or – From the Windows desktop, click the question mark icon in the notification area, at the far right of the taskbar.

  • Page 54: Using Hp Pc Hardware Diagnostics (Uefi) - Windows 8

    Using HP PC Hardware Diagnostics (UEFI) – Windows 8 HP PC Hardware Diagnostics is a Unified Extensible Firmware Interface (UEFI) that allows you to run diagnostic tests to determine whether the computer hardware is functioning properly. The tool runs outside the operating system so that it can isolate hardware failures from issues that are caused by the operating system or other software components.

  • Page 55: Downloading Hp Pc Hardware Diagnostics (Uefi) To A Usb Device

    Instructions for downloading HP PC Hardware Diagnostics (UEFI) are provided in English only. There are two options to download HP PC Hardware Diagnostics to a USB device: Option 1: HP PC Diagnostics homepage— Provides access to the latest UEFI version Go to http://www.hp.com/go/techcenter/pcdiags.

  • Page 56: Using Setup Utility (Bios) And Hp Pc Hardware Diagnostics (Uefi) - Windows 7

    To exit Setup Utility (BIOS) without saving your changes, use the tab key and the arrow keys to select Exit > Exit Discarding Changes, and then press enter. Chapter 8 Using Setup Utility (BIOS) and HP PC Hardware Diagnostics (UEFI) – Windows 7...

  • Page 57: Downloading A Bios Update

    Do not insert, remove, connect, or disconnect any device, cable, or cord. Select Start > All Programs > HP Help and Support > HP Support Assistant. Follow the on-screen instructions to identify your computer and access the BIOS update you want to download.

  • Page 58: Using Hp Pc Hardware Diagnostics (Uefi)

    Using HP PC Hardware Diagnostics (UEFI) HP PC Hardware Diagnostics is a Unified Extensible Firmware Interface (UEFI) that allows you to run diagnostic tests to determine whether the computer hardware is functioning properly. The tool runs outside the operating system so that it can isolate hardware failures from issues that are caused by the operating system or other software components.

  • Page 59: Downloading Hp Pc Hardware Diagnostics (Uefi) To A Usb Device

    Download the latest UEFI version: Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed. Click the Download link in the HP PC Hardware Diagnostics section, and then select Run. Download any version of UEFI for a specific product: Go to http://www.hp.com/support, and then select your country.

  • Page 60: Specifications

    Specifications Metric U.S. Dimensions Width 32.5 cm 12.80 in Depth 21.8 cm 8.58 in Height (front to rear) 1.54 to 1.60 cm 0.61 to 0.63 in Weight (equipped with solid-state drive) 1.50 kg 3.30 lbs Input power Operating voltage and current 19.5 V dc @ 2.31 A –...

  • Page 61: Backing Up, Restoring, And Recovering - Windows 8

    Use HP Recovery Manager after you successfully set up the computer to create HP Recovery media. This step creates a backup of the HP Recovery partition on the computer. The backup can be used to reinstall the original operating system in cases where the hard drive is corrupted or has been replaced.

  • Page 62: Creating Hp Recovery Media (Select Models Only)

    HP Recovery Manager is a software program that allows you to create recovery media after you successfully set up the computer. HP Recovery media can be used to perform system recovery if the hard drive becomes corrupted. System recovery reinstalls the original operating system and the software programs installed at the factory and then configures the settings for the programs.

  • Page 63: Using Windows Tools

    ● On select models, if you want to recover the computer's original factory partition and content , or if you have replaced the hard drive, you can use the Factory Reset option of HP Recovery media. For more information, see Recovering using HP Recovery Manager on page ●...

  • Page 64: Recovering Using Hp Recovery Manager

    Creating HP Recovery media (select models only) on page ● To use the Factory Reset option (select models only), you must use HP Recovery media. If you have not already created recovery media, see Creating HP Recovery media (select models only) on page ●...

  • Page 65: Using Hp Recovery Media To Recover

    Using HP Recovery media to recover You can use HP Recovery media to recover the original system. This method can be used if your system does not have an HP Recovery partition or if the hard drive is not working properly.

  • Page 66: Backing Up, Restoring, And Recovering - Windows 7

    (purchased separately) to create recovery discs, or you can obtain recovery discs for your computer from the HP website. If you use an external optical drive, it must be connected directly to a USB port on the computer, not to a USB port on an external device, such as a USB hub.

  • Page 67: Creating The Recovery Media

    Follow the on-screen instructions to continue. To recover, see Recovering the original system using HP Recovery Manager on page Creating system restore points A system restore point is a snapshot of certain hard drive contents saved by Windows System Restore at a specific time.

  • Page 68: Backing Up System And Personal Information

    Backing up system and personal information Your computer stores information that is important to you, such as files, emails, and photos, and you will want to keep that information even if you download a virus or the system stops working properly. How completely you are able to recover your files depends on how recent your backup is.

  • Page 69: Creating A Backup Using Windows Backup And Restore

    Restoring specific files is also useful if you ever choose to recover the original system using HP Recovery Manager. You can only restore specific files that you have backed up before.

  • Page 70: Recovering The Original System Using Hp Recovery Manager

    A system recovery must be performed if the computer hard drive fails or if all attempts to correct any functional computer issues fail. ● If the recovery media do not work, you can obtain recovery discs for your system from the HP website. ● The Minimized Image Recovery option is recommended for advanced users only. All hardware-related drivers and software are re-installed, but other software applications are not.

  • Page 71: Recovering Using The Recovery Media

    Insert the recovery flash drive into a USB port on your computer, and then restart the computer. NOTE: If the computer does not automatically restart in HP Recovery Manager, change the computer boot order. See Changing the computer boot order on page Press at system bootup.

  • Page 72: 12 Statement Of Volatility

    The steps below will remove personal data from the notebook PC, including the nonvolatile memory found in Intel-based and AMD-based system boards. Some of these steps are disclosed in the Maintenance and Service Guides available for HP PC products available on the product support pages at www.hp.com.
  • Page 73 TPM and the other to reset fingerprint sensor. Press to accept or to reject. If the HP notebook model number ends in a ‘p’ or ‘w’ and includes Intel Centrino with VProTM, reboot the PC and enter BIOS Setup by pressing when prompted. Select System Configuration, then AMT Options.

  • Page 74: Non-Volatile Memory Usage

    Code is updated writing data to battery when the system this memory and management). BIOS is updated. is available on the HP websit e. Writing data to this ROM in an inappropriate manner can render the PC nonfunctional. DIMM Serial...
  • Page 75 Non Volatile Amount (Size) Does Does What How is data Memory Type this memory this memory is the purpose input into is this memory store customer retain data of this memory? this memory? write data? when power protected? is removed? using the render the PC setup utility or a...

  • Page 76: Questions And Answers

    Fingerprint 512 KBytes flash Stores By enrolling in Only a digitally reader fingerprint HP ProtectTools signed templates. Security application can Manager. make the call to write to the flash. Questions and answers How can the BIOS settings be restored (returned to default settings)? Turn on or restart the computer and press when prompted near the bottom of the display.
  • Page 77 What is meant by “Restore the nonvolatile memory found in Intel-based system boards?” This relates to clearing the Real Time Clock (RTC) CMOS memory that contains PC configuration data. Does resetting the CMOS configuration memory return the PC back to factory defaults? The process of resetting the CMOS will return certain system settings to factory default but will not reset many of the system data and configuration defaults to their default settings.

  • Page 78: 13 Power Cord Set Requirements

    13 Power cord set requirements The wide-range input feature of the computer permits it to operate from any line voltage from 100 to 120 volts AC, or from 220 to 240 volts AC. The 3-conductor power cord set included with the computer meets the requirements for use in the country or region where the equipment is purchased.
  • Page 79 Country/region Accredited agency Applicable note number South Korea Sweden CEMKO Switzerland Taiwan BSMI The United Kingdom The United States The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.

  • Page 80: 14 Recycling

    Follow the local laws and regulations in your area for battery disposal. HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable batteries. For more information about recycling programs, see the HP Web site at http://www.hp.com/...

  • Page 81: Index

    37 audio jack board connectors spare part number 17, 37 removal 42 power 10 HP PC Hardware Diagnostics (UEFI) spare part number 15, 42 service considerations 19 downloading 47, 51 audio, product description 2 using 50 audio-in jack 12...
  • Page 82 61 system recovery 56, 62 original system recovery 56, 62 discs 54, 57 system restore point, creating 53, HP Recovery Manager 56, 62 media 57 system restore points 59 packaging guidelines 21 options 55 system restore points, creating 59...
  • Page 83 Windows button 12 Windows key 7 Windows system restore point 53, Windows tools 55 wireless antenna, location 6 wireless, product description 2, 3 WLAN antenna, location 6 WLAN module removal 26 spare part numbers 17, 26 workstation guidelines 21 Index...

This manual is also suitable for:
