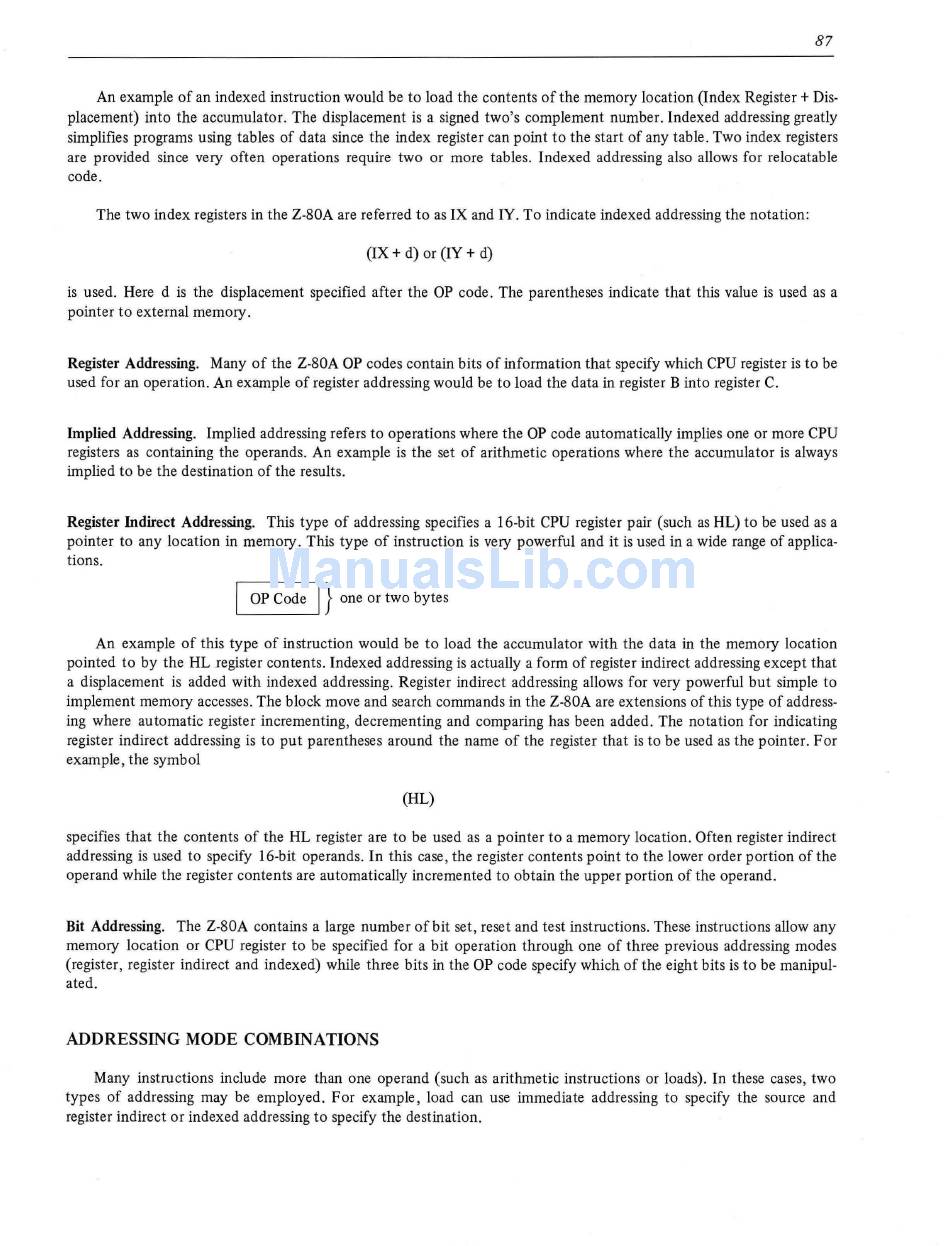

An example of an indexed instruction would be to load the contents of the memory location (Index Register + Dis-
placement) into the accumulator. The displacement is a signed two's complement number. Indexed addressing greatly
simplifies programs using tables of data since the index register can point to the start of any table. Two index registers
are provided since very often operations require two or more tables. Indexed addressing also allows for relocatable
code.
The two index registers in the Z-80A are referred to as IX and IY. To indicate indexed addressing the notation:
(IX+ d) or (IY + d)
is used. Here d is the displacement specified after the OP code. The parentheses indicate that this value is used as a
pointer to external memory.
Register Addressing. Many of the Z-80A OP codes contain bits of information that specify which CPU register is to be
used for an operation. An example of register addressing would be to load the data in register B into register C.
Implied Addressing. Implied addressing refers to operations where the OP code automatically implies one or more CPU
registers as containing the operands. An example is the set of arithmetic operations where the accumulator is always
implied to be the destination of the results.
Register Indirect Addressing. This type of addressing specifies a 16-bit CPU register pair (such as HL) to be used as a
pointer to any location in memory. This type of instruction is very powerful and it is used in a wide range of applica-
tions.
I
OP Code
I }
one or two bytes
An example of this type of instruction would be to load the accumulator with the data in the memory location
pointed to by the HL _ register contents. Indexed addressing is actually a form of register indirect addressing except that
a displacement is added with indexed addressing. Register indirect addressing allows for very powerful but simple to
implement memory accesses. The block move and search commands in the Z-80A are extensions of this type of address-
ing where automatic register incrementing, decrementing and comparing has been added. The notation for indicating
register indirect addressing is to put parentheses around the name of the register that is to be used as the pointer. For
example, the symbol
(HL)
specifies that the contents of the HL register are to be used as a pointer to a memory location. Often register indirect
addressing is used to specify 16-bit operands. In this case , the register contents point to the lower order portion of the
operand while the register contents are automatically incremented to obtain the upper portion of the operand.
Bit Addressing. The Z-80A contains a large number of bit set, reset and test instructions. These instructions allow any
memory location or CPU register to be specified for a bit operation through one of three previous addressing modes
(register, register indirect and indexed) while three bits in the OP code specify which of the eight bits is to be manipul-
ated.
ADDRESSING MODE COMBINATIONS
Many instructions include more than one operand (such as arithmetic instructions or loads). In these cases, two
types of addressing may be employed. For example, load can use immediate addressing to specify the source and
register indirect or indexed addressing to specify the destination.
