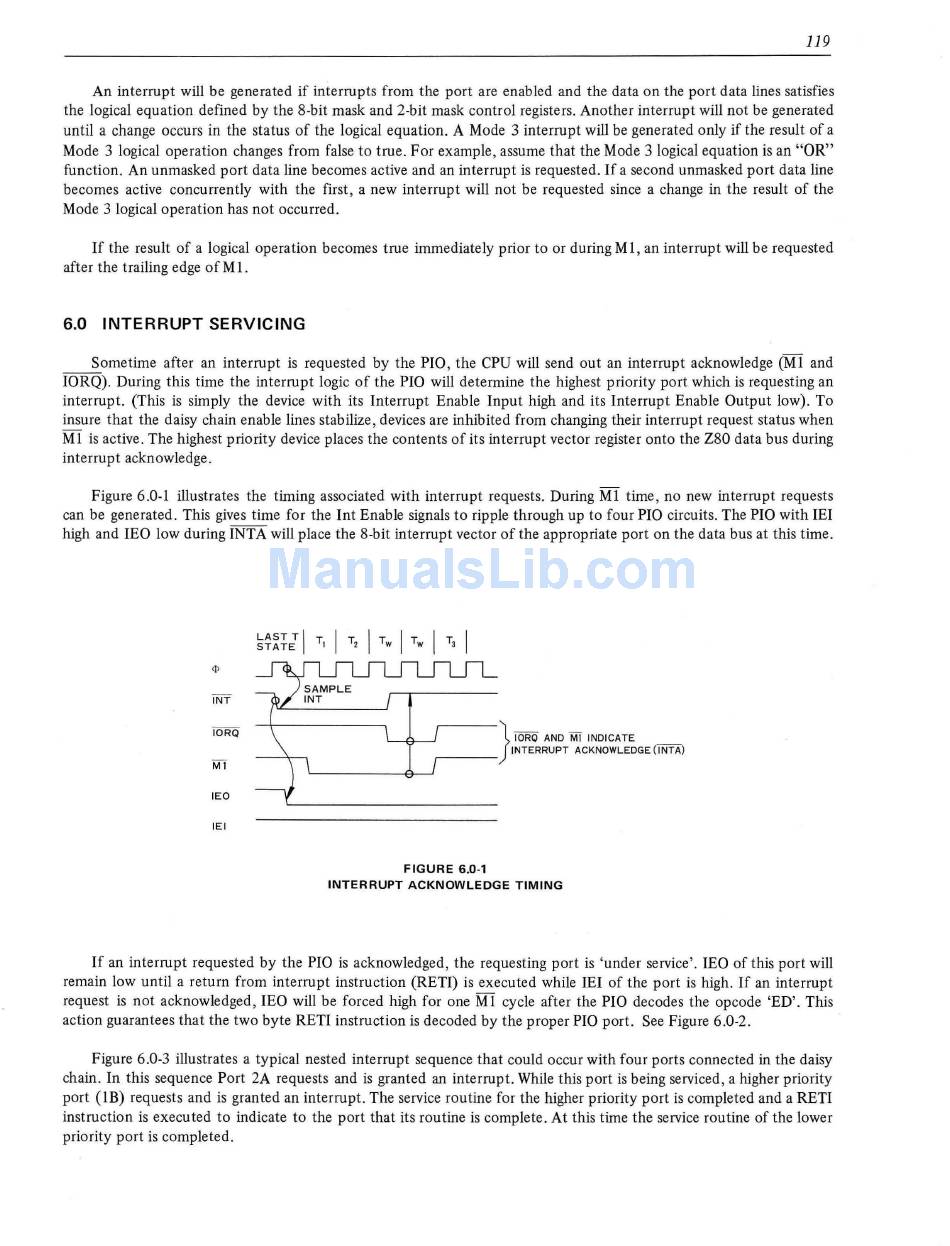

Sharp MZ-80B Owner's Manual page 128

119
An interrupt will be generated if interrupts from the port are enabled and the data on the port data lines satisfies
the logical equation defined by the 8-bit mask and 2-bit mask control registers. Another interrupt will not be generated
until a change occurs in the status of the logical equation. A Mode 3 interrupt will be generated only if the result of a
Mode 3 logical operation changes from false to true. For example , assume that the Mode 3 logical equation is an "OR"
function .
An unmasked port data line becomes active and an interrupt is requested. If a second unmasked port
data line
becomes active concurrently with the first , a new interrupt will not be requested since a change in the result of the
Mode 3 logical operation has not occurred.
If the result of a logical operation becomes true immediately prior to or during M 1, an interrupt will be requested
after the trailing edge of M 1.
6.0 INTERRUPT SERVICING
Sometime after an interrupt is requested by the PIO , the CPU will send out an interrupt acknowledge (M1 and
IORQ). During this time the interrupt logic of the PIO will determine the highest priority port which is requesting an
interrupt. (This is simply the device with its Interrupt Enable Input high and its Interrupt Enable Output low). To
insure that the daisy chain enable lines stabilize, devices are inhibited from changing their interrupt request status when
M 1 is active . The highest priority device places the contents of its interrupt vector register onto the Z80 data bus during
interrupt acknowledge.
Figure 6.0-1 illustrates the timing associated with interrupt requests . During M1 time , no new interrupt requests
can be generated . This gives time for the lnt Enable signals to ripple through up to four PIO circuits. The PIO with lEI
high and lEO low during INTA will place the 8-bit interrupt vector of the appropriate port on the data bus at this time.
INT
Ml
lEO
lEI
LAST T
I
T
I
T
STATE I 2
}
IORQ AND
Ml
INDICATE
, . . . - - - - - INTERRUPT ACKNOWLEDGE ( I NT A)
FIGURE 6.0-1
INTERRUPT ACKNOWLEDGE TIMING
If an interrupt requested by the PIO is acknowledged, the requesting port is 'under service'. lEO of this port will
remain low until a return from interrupt instruction (RETI)
is executed while lEI of the port is high. If an interrupt
request is not acknowledged, lEO will be forced high for one M I cycle after the PIO decodes the opcode 'ED' . This
action guarantees that the two byte RETI instruction is decoded by the proper PIO port. See Figure 6 .0-2 .
Figure 6.0-3 illustrates a typical nested interrupt sequence that could occur with four ports connected in the daisy
chain. In this sequence Port 2A requests and is granted an interrupt. While this port is being serviced, a higher priority
port (!B) requests and is granted an interrupt. The service routine for the higher priority port is completed and a RETI
instruction is executed to indicate to the port that its routine is complete . At this time the service routine of the lower
priority port is completed.
