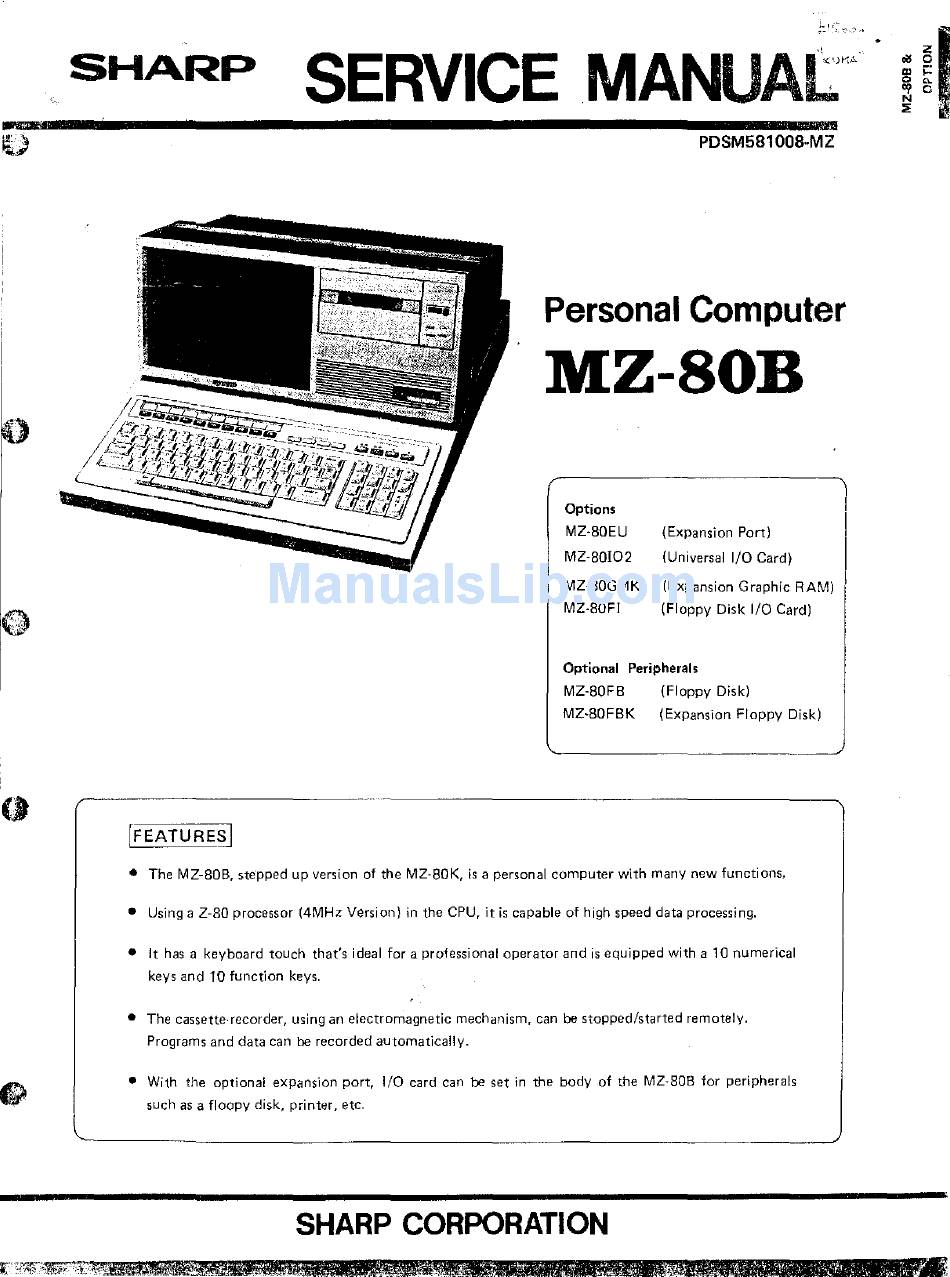

SHARP
SERVICE .MANUAt""
.uu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
~~~~~M~1
~)
PDSM581008·MZ
.~
~
()
[FEATURE~
Personal Computer
MZ-80B
Options
MZ·80EU
MZ·80I02
(Expansion Port)
(Universal I/O Card)
MZ-80GMK
(Expansion Graphic RAM)
MZ·80FI
(Floppy Disk I/O Card)
Optional Peripherals
I
MZ·80FBK
(Expansion Floppy Disk)
MZ·80FB
(Floppy Disk)
:J
• The MZ-80B. ste'pped up version of the MZ-80K, is a personal computer with many new functions,
Using a Z-80 processor (4MHz Version} in the CPU, it is capable of high speed data processing.
It has a keyboard touch that's ideal for a professional operator and is equipped with a 10 numerical
keys and 10 function keys,
• The cassette-recorder, using an electromagnetic mechanism, can be stopped/started remotely.
Programs and data can
be
recorded automatically.
• With the optional expansion port, 1/0 card Can
be
set in the body of the MZ-80B for peripherals
such as a floopy disk,
print~r,
etc.
SHARP CORPORATION
