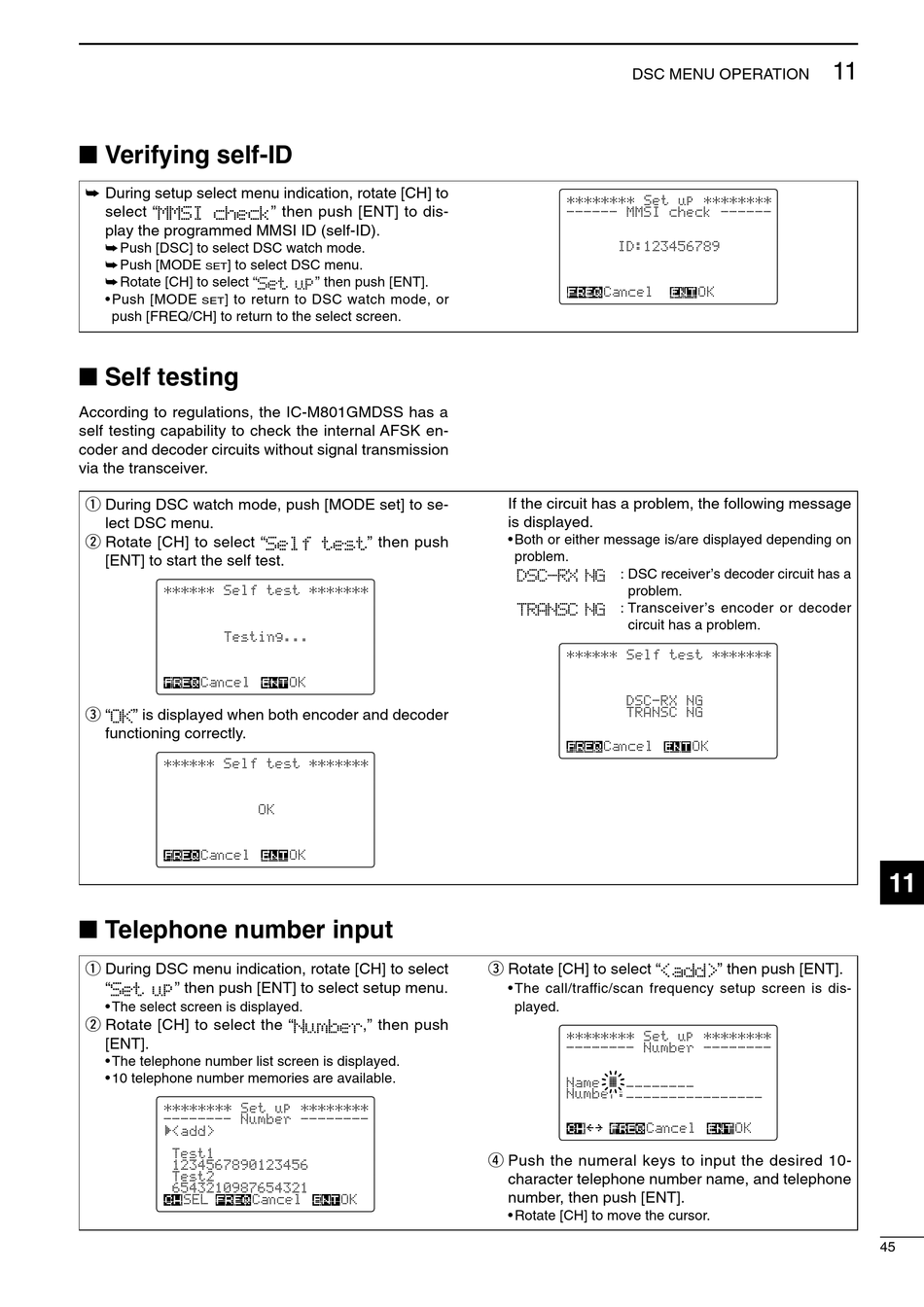

I Verifying self-ID

➥ During setup select menu indication, rotate [CH] to
select "MMSI check" then push [ENT] to dis-
play the programmed MMSI ID (self-ID).
➥ Push [DSC] to select DSC watch mode.
➥ Push [MODE
] to select DSC menu.
SET
➥ Rotate [CH] to select "Set up" then push [ENT].
• Push [MODE ] to return to DSC watch mode, or
SET
push [FREQ/CH] to return to the select screen.

I Self testing

According to regulations, the IC-M801GMDSS has a
self testing capability to check the internal AFSK en-
coder and decoder circuits without signal transmission
via the transceiver.
q During DSC watch mode, push [MODE set] to se-
lect DSC menu.
w Rotate [CH] to select "Self test" then push
[ENT] to start the self test.
* * * * * * S e l f t e s t * * * * * * *
T e s t i n g . . .
C an c e l
e "OK" is displayed when both encoder and decoder
functioning correctly.
* * * * * * S e l f t e s t * * * * * * *
C an c e l

I Telephone number input

q During DSC menu indication, rotate [CH] to select
"Set up" then push [ENT] to select setup menu.
• The select screen is displayed.
w Rotate [CH] to select the "Number," then push
[ENT].
• The telephone number list screen is displayed.
• 10 telephone number memories are available.
* * * * * * * * S e t u p * * * * * * * *
- - - - - - - - N u m b e r - - - - - - - -
Ç
< a d d >
T e s t 1
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6
T e s t 2
6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1
S E L C an c e l
O K
O K
O K
O K
DSC MENU OPERATION
* * * * * * * * S e t u p * * * * * * * *
- - - - - - M M S I c h e c k - - - - - -
I D : 1 2 3 4 5 6 7 8 9
C an c e l
If the circuit has a problem, the following message
is displayed.
• Both or either message is/are displayed depending on
problem.
DSC-RX NG : DSC receiver's decoder circuit has a
problem.
TRANSC NG : Transceiver's encoder or decoder
circuit has a problem.
* * * * * * S e l f t e s t * * * * * * *
D S C - R X N G
T R A N S C N G
C an c e l
e Rotate [CH] to select "<add>" then push [ENT].
• The call/traffic/scan frequency setup screen is dis-
played.
* * * * * * * * S e t u p * * * * * * * *
- - - - - - - - N u m b e r - - - - - - - -
N a m e : † _ _ _ _ _ _ _ _ _
N u m b e r : _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
C an c e l
r Push the numeral keys to input the desired 10-
character telephone number name, and telephone
number, then push [ENT].
• Rotate [CH] to move the cursor.
