11
DSC MENU OPERATION

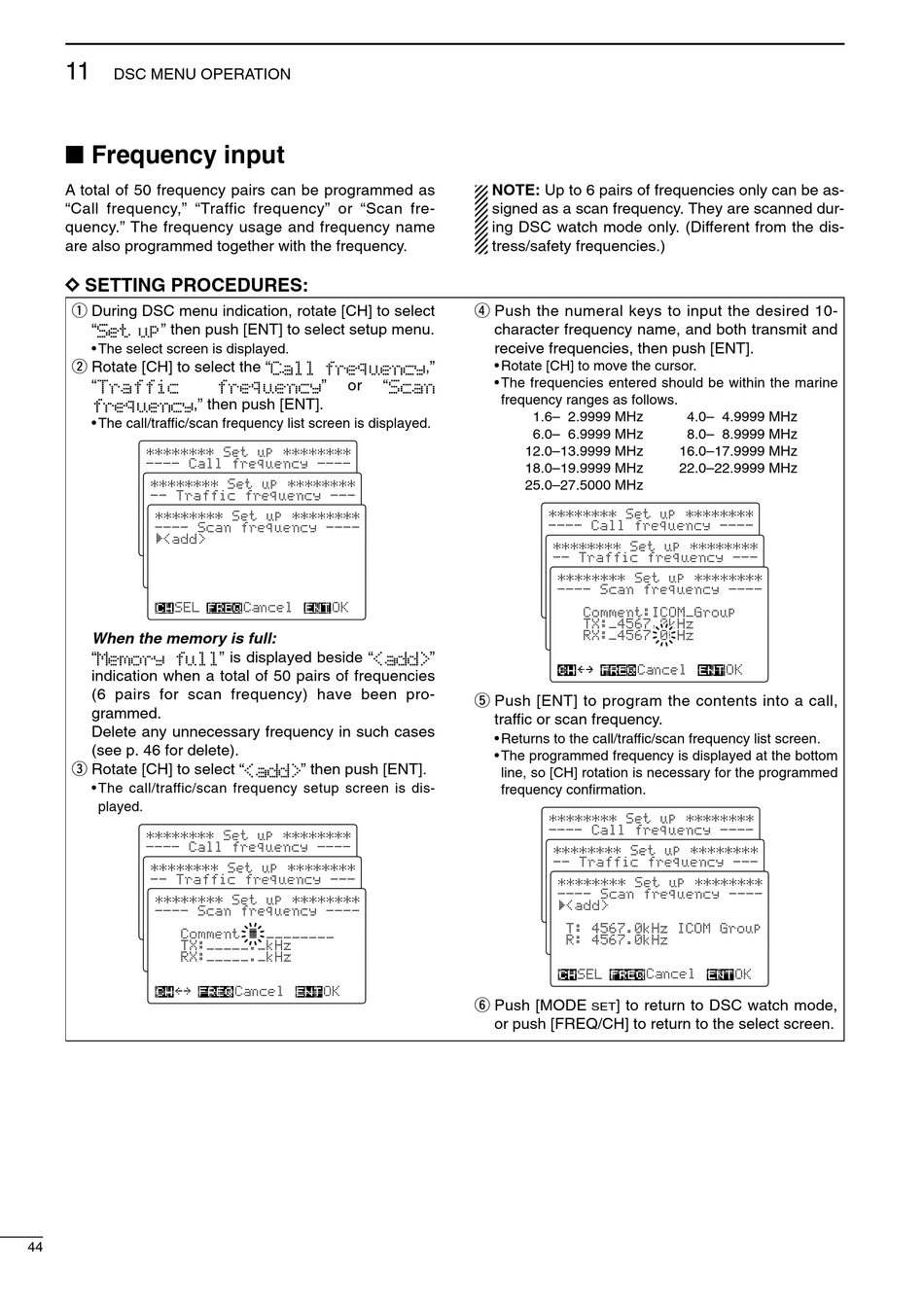

I Frequency input

A total of 50 frequency pairs can be programmed as
"Call frequency," "Traffic frequency" or "Scan fre-
quency." The frequency usage and frequency name
are also programmed together with the frequency.
D D SETTING PROCEDURES:
q During DSC menu indication, rotate [CH] to select
"Set up" then push [ENT] to select setup menu.
• The select screen is displayed.
w Rotate [CH] to select the "Call frequency,"
"Traffic
frequency," then push [ENT].
• The call/traffic/scan frequency list screen is displayed.
* * * * * * * * S e t u p * * * * * * * *
- - - - C a l l f r e q u e n c y - - - -
* * * * * * * * S e t u p * * * * * * * *
- - T r a f f i c f r e q u e n c y - - -
* * * * * * * * S e t u p * * * * * * * *
- - - - S c a n f r e q u e n c y - - - -
Ç
< a d d >
S E L
When the memory is full:
"Memory full" is displayed beside "<add>"
indication when a total of 50 pairs of frequencies
(6 pairs for scan frequency) have been pro-
grammed.
Delete any unnecessary frequency in such cases
(see p. 46 for delete).
e Rotate [CH] to select "<add>" then push [ENT].
• The call/traffic/scan frequency setup screen is dis-
played.
* * * * * * * * S e t u p * * * * * * * *
- - - - C a l l f r e q u e n c y - - - -
* * * * * * * * S e t u p * * * * * * * *
- - T r a f f i c f r e q u e n c y - - -
* * * * * * * * S e t u p * * * * * * * *
- - - - S c a n f r e q u e n c y - - - -
C o m m e n t :
T X : _ _ _ _ _ . _ k H z
R X : _ _ _ _ _ . _ k H z
44
frequency" or "Scan
C an c e l O K
_ _ _ _ _ _ _ _ _
†
C an c e l O K
NOTE: Up to 6 pairs of frequencies only can be as-
signed as a scan frequency. They are scanned dur-
ing DSC watch mode only. (Different from the dis-
tress/safety frequencies.)
r Push the numeral keys to input the desired 10-
character frequency name, and both transmit and
receive frequencies, then push [ENT].
• Rotate [CH] to move the cursor.
• The frequencies entered should be within the marine
frequency ranges as follows.
1.6– 2.9999 MHz
6.0– 6.9999 MHz
12.0–13.9999 MHz
18.0–19.9999 MHz
25.0–27.5000 MHz
* * * * * * * * S e t u p * * * * * * * *
- - - - C a l l f r e q u e n c y - - - -
* * * * * * * * S e t u p * * * * * * * *
- - T r a f f i c f r e q u e n c y - - -
* * * * * * * * S e t u p * * * * * * * *
- - - - S c a n f r e q u e n c y - - - -
C o m m e n t : I C O M _ G r o u p
T X : _ 4 5 6 7 . 0 k H z
R X : _ 4 5 6 7 . 0 k H z
C an c e l
t Push [ENT] to program the contents into a call,
traffic or scan frequency.
• Returns to the call/traffic/scan frequency list screen.
• The programmed frequency is displayed at the bottom
line, so [CH] rotation is necessary for the programmed
frequency confirmation.
* * * * * * * * S e t u p * * * * * * * *
- - - - C a l l f r e q u e n c y - - - -
* * * * * * * * S e t u p * * * * * * * *
- - T r a f f i c f r e q u e n c y - - -
* * * * * * * * S e t u p * * * * * * * *
- - - - S c a n f r e q u e n c y - - - -
Ç
< a d d >
T : 4 5 6 7 . 0 k H z I C O M G r o u p
R : 4 5 6 7 . 0 k H z
S E L C an c e l
y Push [MODE
] to return to DSC watch mode,
SET
or push [FREQ/CH] to return to the select screen.
4.0– 4.9999 MHz
8.0– 8.9999 MHz
16.0–17.9999 MHz
22.0–22.9999 MHz
O K
O K
