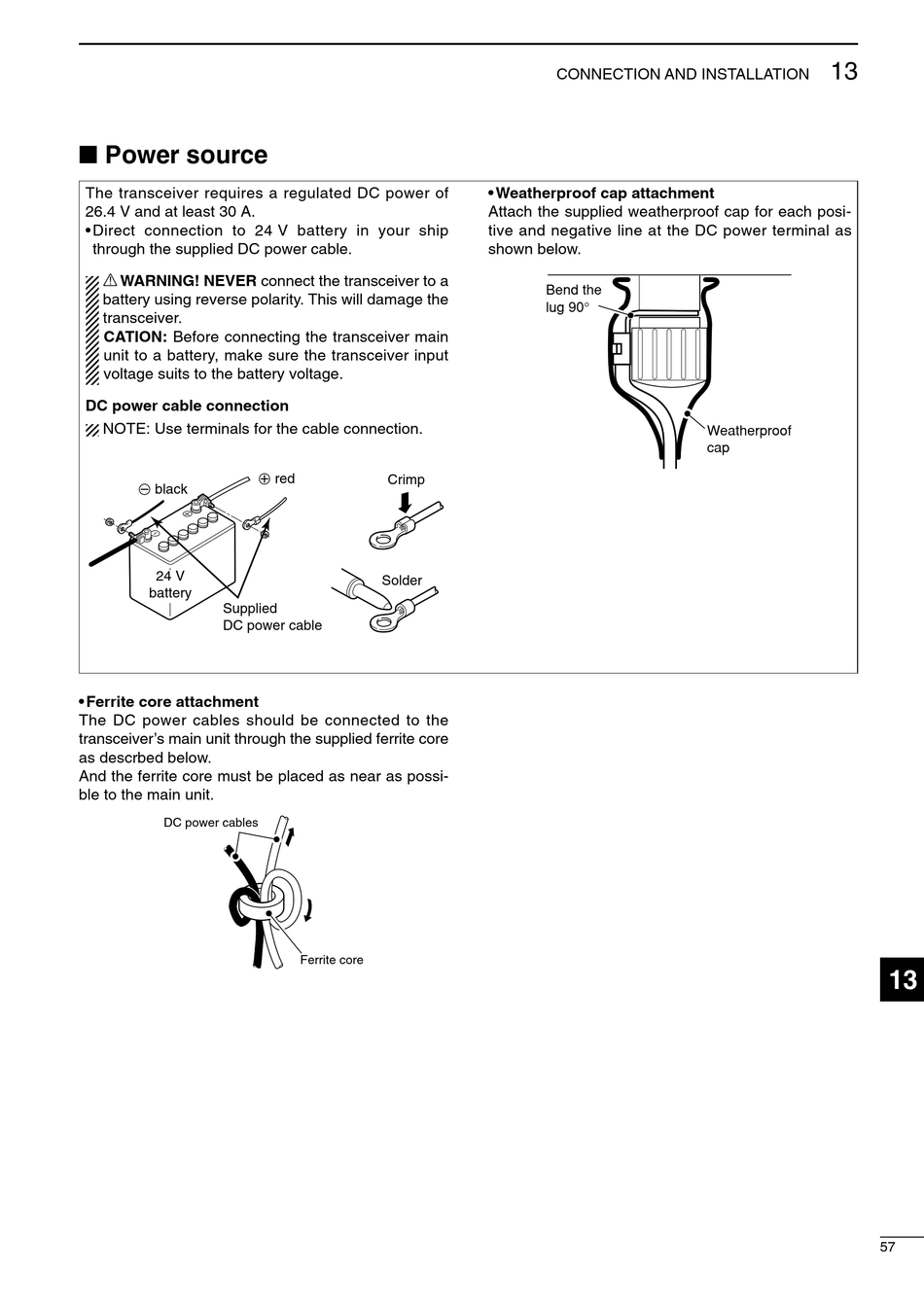

I Power source
The transceiver requires a regulated DC power of
26.4 V and at least 30 A.
• Direct connection to 24 V battery in your ship
through the supplied DC power cable.
R WARNING! NEVER connect the transceiver to a
battery using reverse polarity. This will damage the
transceiver.
CATION: Before connecting the transceiver main
unit to a battery, make sure the transceiver input
voltage suits to the battery voltage.
DC power cable connection
NOTE: Use terminals for the cable connection.
_ black
24 V
battery
Supplied
DC power cable
• Ferrite core attachment
The DC power cables should be connected to the
transceiver's main unit through the supplied ferrite core
as descrbed below.
And the ferrite core must be placed as near as possi-
ble to the main unit.
DC power cables
+ red
Crimp
Solder
Ferrite core
CONNECTION AND INSTALLATION
• Weatherproof cap attachment
Attach the supplied weatherproof cap for each posi-
tive and negative line at the DC power terminal as
shown below.
Bend the
lug 90°
13
Weatherproof
cap
57
13
