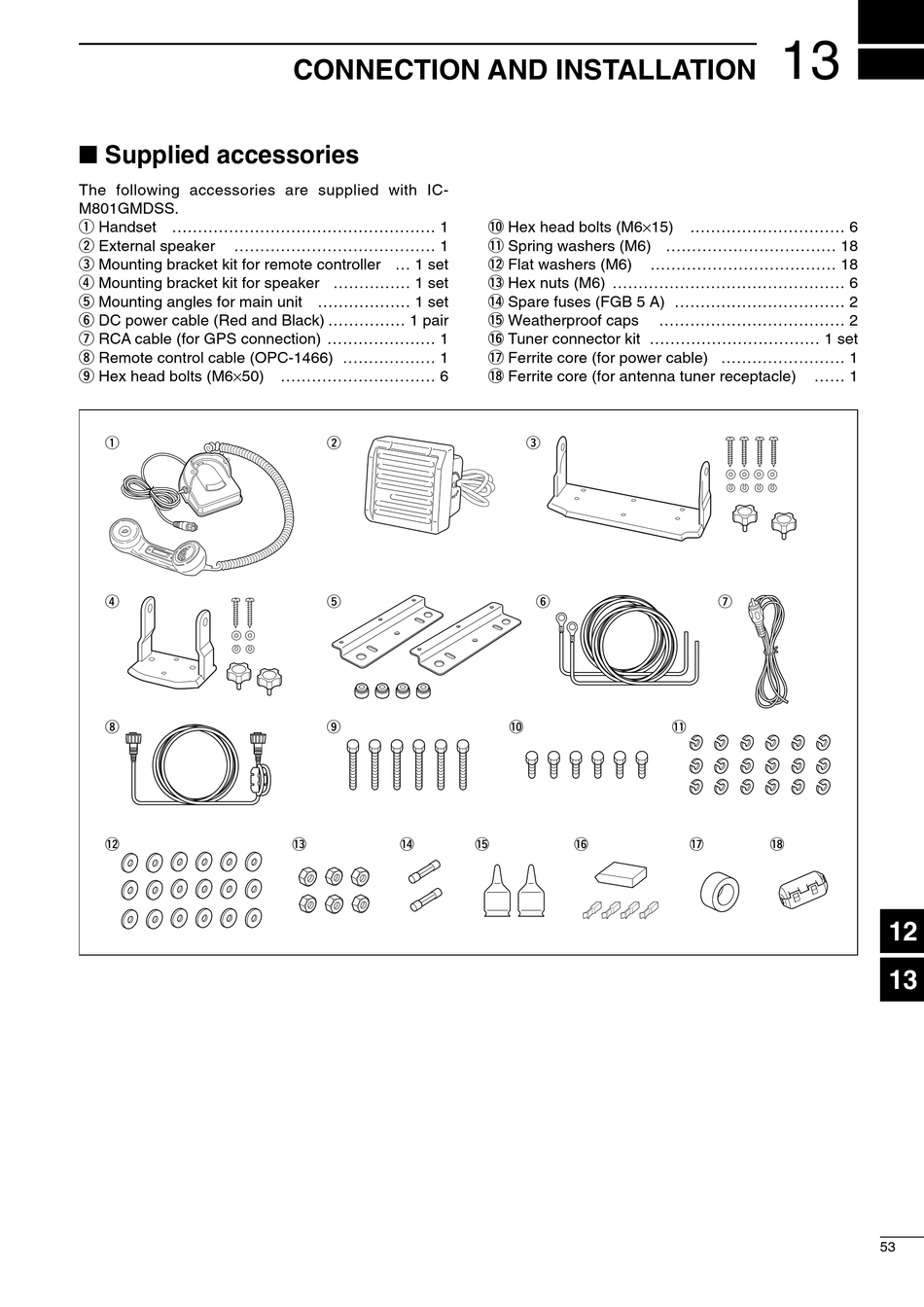

I Supplied accessories
The following accessories are supplied with IC-
M801GMDSS.
q Handset ................................................... 1
w External speaker
....................................... 1
e Mounting bracket kit for remote controller ... 1 set
r Mounting bracket kit for speaker ............... 1 set
t Mounting angles for main unit .................. 1 set
y DC power cable (Red and Black) ............... 1 pair
u RCA cable (for GPS connection) ..................... 1
i Remote control cable (OPC-1466) .................. 1
o Hex head bolts (M6×50) .............................. 6
q
r
i
!2
CONNECTION AND INSTALLATION
w
t
o
!3
!4
!0 Hex head bolts (M6×15) .............................. 6
!1 Spring washers (M6) ................................. 18
!2 Flat washers (M6)
!3 Hex nuts (M6) ............................................. 6
!4 Spare fuses (FGB 5 A) ................................. 2
!5 Weatherproof caps
!6 Tuner connector kit ................................. 1 set
!7 Ferrite core (for power cable) ........................ 1
!8 Ferrite core (for antenna tuner receptacle)
e
y
!0
!5
!6
13
.................................... 18
.................................... 2
...... 1
u
!1
!7
!8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
