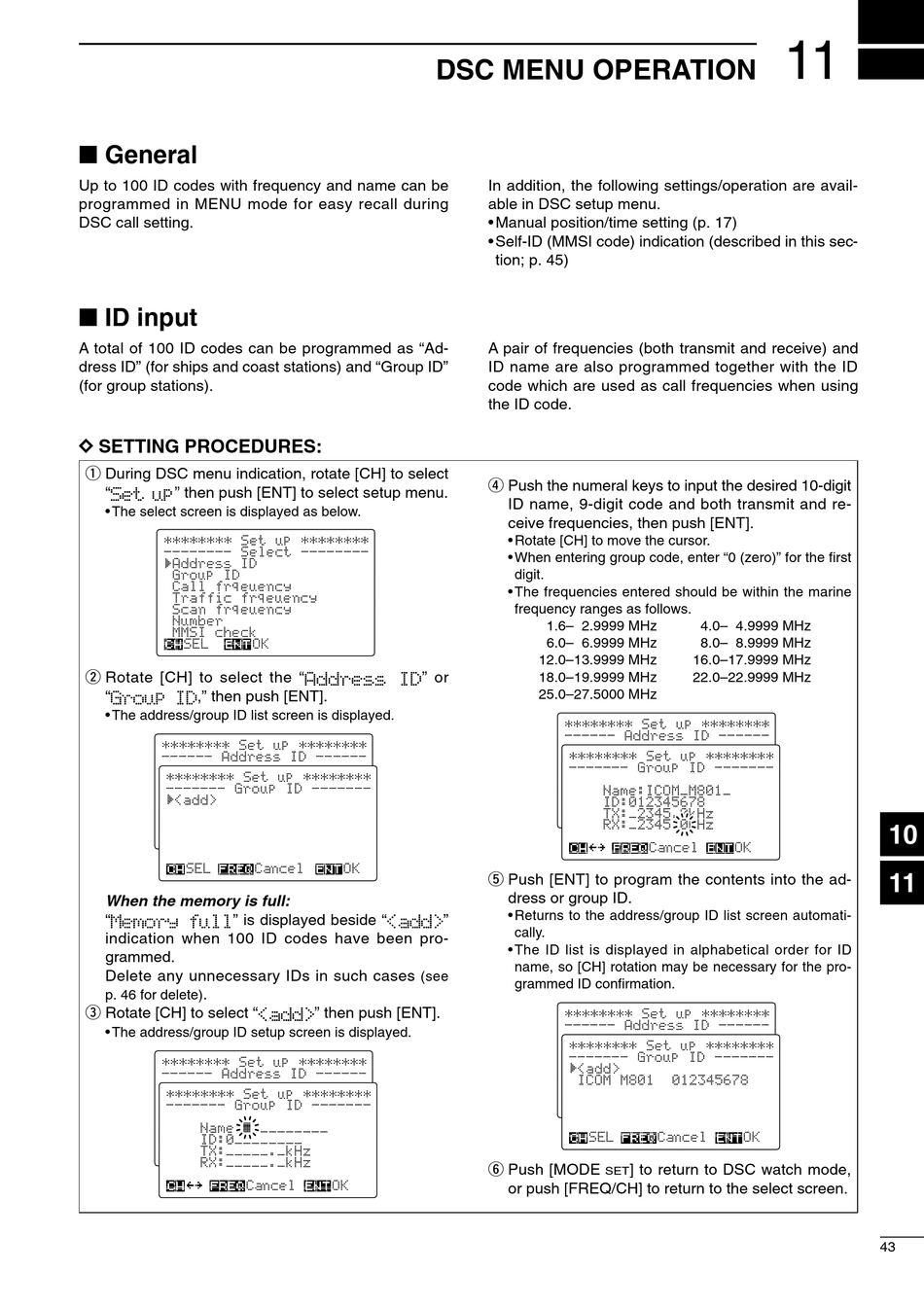

I General
Up to 100 ID codes with frequency and name can be
programmed in MENU mode for easy recall during
DSC call setting.
I ID input
A total of 100 ID codes can be programmed as "Ad-
dress ID" (for ships and coast stations) and "Group ID"
(for group stations).
D D SETTING PROCEDURES:
q During DSC menu indication, rotate [CH] to select
"Set up" then push [ENT] to select setup menu.
• The select screen is displayed as below.
* * * * * * * * S e t u p * * * * * * * *
- - - - - - - - S e l e c t - - - - - - - -
Ç
A d d r e s s I D
G r o u p I D
C a l l f r q e u e n c y
T r a f f i c f r q e u e n c y
S c a n f r q e u e n c y
N u m b e r
M M S I c h e c k
S E L
O K
w Rotate [CH] to select the "Address ID" or
"Group ID," then push [ENT].
• The address/group ID list screen is displayed.
* * * * * * * * S e t u p * * * * * * * *
- - - - - - A d d r e s s I D - - - - - -
* * * * * * * * S e t u p * * * * * * * *
- - - - - - - G r o u p I D - - - - - - -
Ç
< a d d >
S E L
When the memory is full:
"Memory full" is displayed beside "<add>"
indication when 100 ID codes have been pro-
grammed.
Delete any unnecessary IDs in such cases
.
p. 46 for delete)
e Rotate [CH] to select "<add>" then push [ENT].
• The address/group ID setup screen is displayed.
* * * * * * * * S e t u p * * * * * * * *
- - - - - - A d d r e s s I D - - - - - -
* * * * * * * * S e t u p * * * * * * * *
- - - - - - - G r o u p I D - - - - - - -
N a m e :
_ _ _ _ _ _ _ _ _
†
I D : 0 _ _ _ _ _ _ _ _
T X : _ _ _ _ _ . _ k H z
R X : _ _ _ _ _ . _ k H z
C an c e l
C an c e l
O K
(see
O K
DSC MENU OPERATION
In addition, the following settings/operation are avail-
able in DSC setup menu.
• Manual position/time setting (p. 17)
• Self-ID (MMSI code) indication (described in this sec-
tion; p. 45)
A pair of frequencies (both transmit and receive) and
ID name are also programmed together with the ID
code which are used as call frequencies when using
the ID code.
r Push the numeral keys to input the desired 10-digit
ID name, 9-digit code and both transmit and re-
ceive frequencies, then push [ENT].
• Rotate [CH] to move the cursor.
• When entering group code, enter "0 (zero)" for the first
digit.
• The frequencies entered should be within the marine
frequency ranges as follows.
1.6– 2.9999 MHz
6.0– 6.9999 MHz
12.0–13.9999 MHz
18.0–19.9999 MHz
25.0–27.5000 MHz
* * * * * * * * S e t u p * * * * * * * *
- - - - - - A d d r e s s I D - - - - - -
* * * * * * * * S e t u p * * * * * * * *
- - - - - - - G r o u p I D - - - - - - -
N a m e : I C O M _ M 8 0 1 _
I D : 0 1 2 3 4 5 6 7 8
T X : _ 2 3 4 5 . 0 k H z
R X : _ 2 3 4 5 . 0 k H z
t Push [ENT] to program the contents into the ad-
dress or group ID.
• Returns to the address/group ID list screen automati-
cally.
• The ID list is displayed in alphabetical order for ID
name, so [CH] rotation may be necessary for the pro-
grammed ID confirmation.
* * * * * * * * S e t u p * * * * * * * *
- - - - - - A d d r e s s I D - - - - - -
* * * * * * * * S e t u p * * * * * * * *
- - - - - - - G r o u p I D - - - - - - -
Ç
< a d d >
I C O M M 8 0 1
S E L
y Push [MODE
SET
or push [FREQ/CH] to return to the select screen.
11
4.0– 4.9999 MHz
8.0– 8.9999 MHz
16.0–17.9999 MHz
22.0–22.9999 MHz
C an c e l
O K
0 1 2 3 4 5 6 7 8
C an c e l
O K
] to return to DSC watch mode,
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
