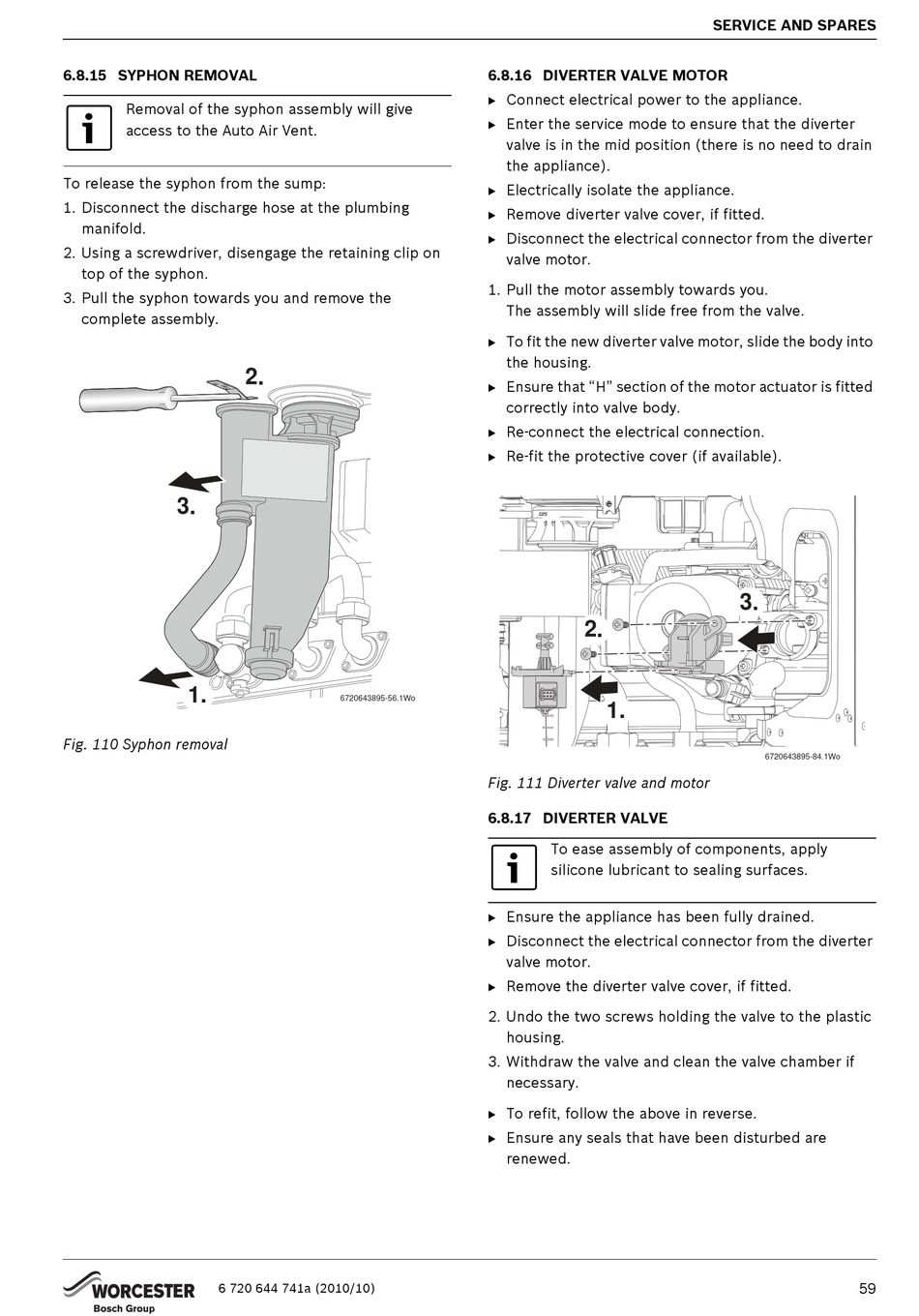

6.8.15 SYPHON REMOVAL

Removal of the syphon assembly will give
access to the Auto Air Vent.
To release the syphon from the sump:
1. Disconnect the discharge hose at the plumbing
manifold.
2. Using a screwdriver, disengage the retaining clip on
top of the syphon.
3. Pull the syphon towards you and remove the
complete assembly.
3.
1.
Fig. 110 Syphon removal
6 720 644 741a (2010/10)
2.
6720643895-56.1Wo

6.8.16 DIVERTER VALVE MOTOR

B Connect electrical power to the appliance.
B Enter the service mode to ensure that the diverter
valve is in the mid position (there is no need to drain
the appliance).
B Electrically isolate the appliance.
B Remove diverter valve cover, if fitted.
B Disconnect the electrical connector from the diverter
valve motor.
1. Pull the motor assembly towards you.
The assembly will slide free from the valve.
B To fit the new diverter valve motor, slide the body into
the housing.
B Ensure that "H" section of the motor actuator is fitted
correctly into valve body.
B Re-connect the electrical connection.
B Re-fit the protective cover (if available).
2.
1.
Fig. 111 Diverter valve and motor

6.8.17 DIVERTER VALVE

To ease assembly of components, apply
silicone lubricant to sealing surfaces.
B Ensure the appliance has been fully drained.
B Disconnect the electrical connector from the diverter
valve motor.
B Remove the diverter valve cover, if fitted.
2. Undo the two screws holding the valve to the plastic
housing.
3. Withdraw the valve and clean the valve chamber if
necessary.
B To refit, follow the above in reverse.
B Ensure any seals that have been disturbed are
renewed.
SERVICE AND SPARES
3.
6720643895-84.1Wo
